Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Block Diagrams and Connector Pin Usage >> With Manual Transaxle

With Manual Transaxle

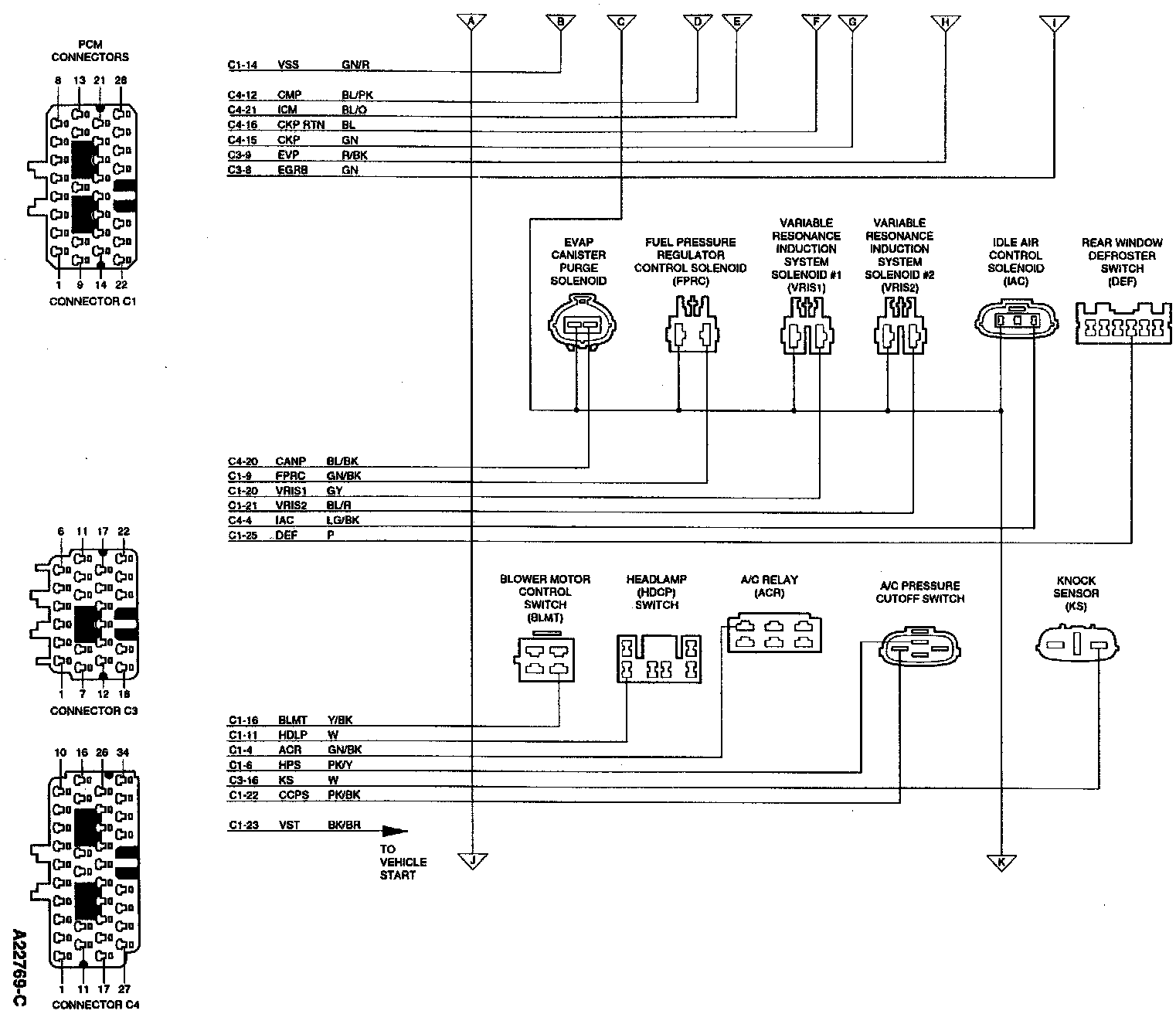

Electrical Schematic:

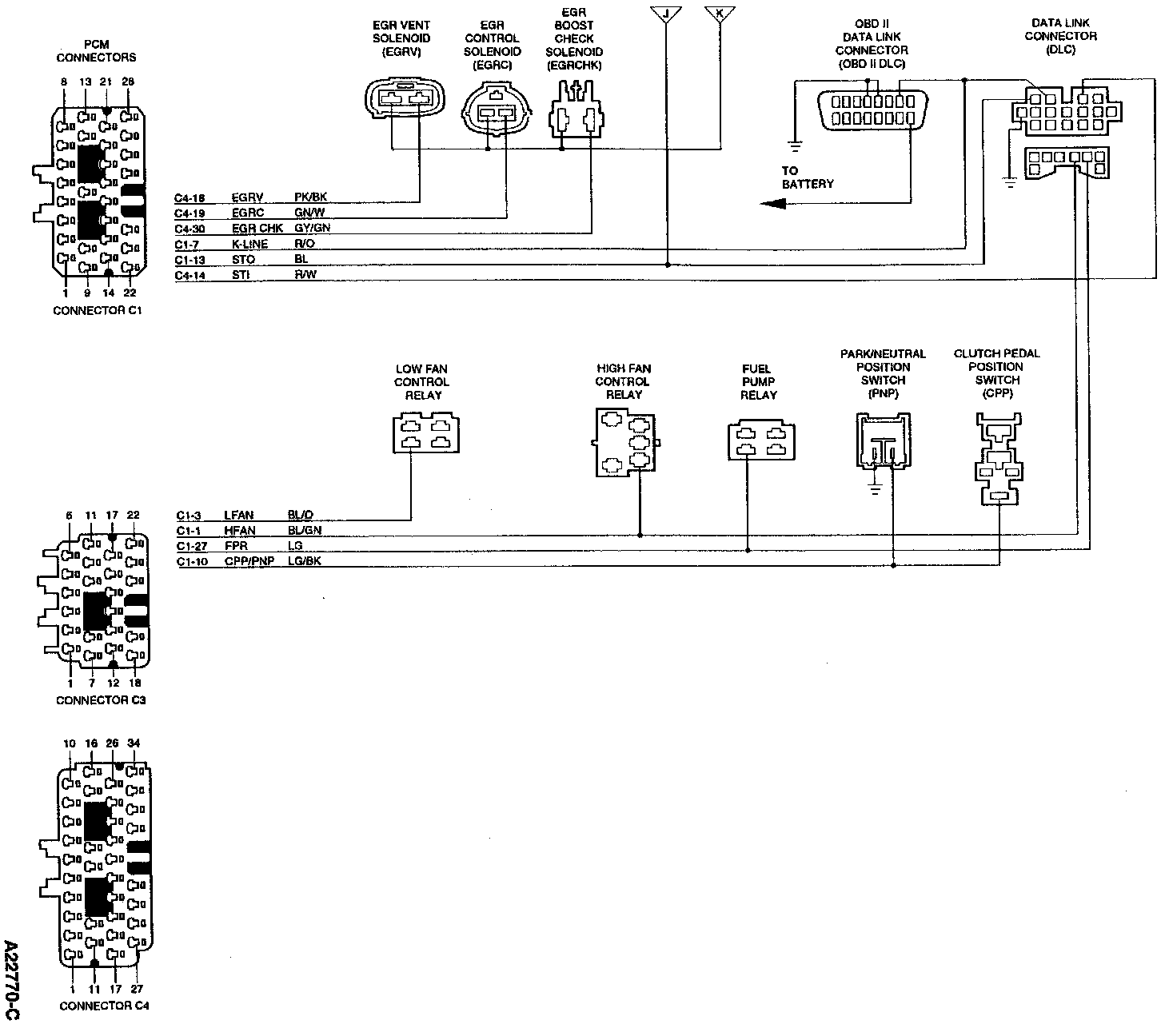

Electrical Schematic:

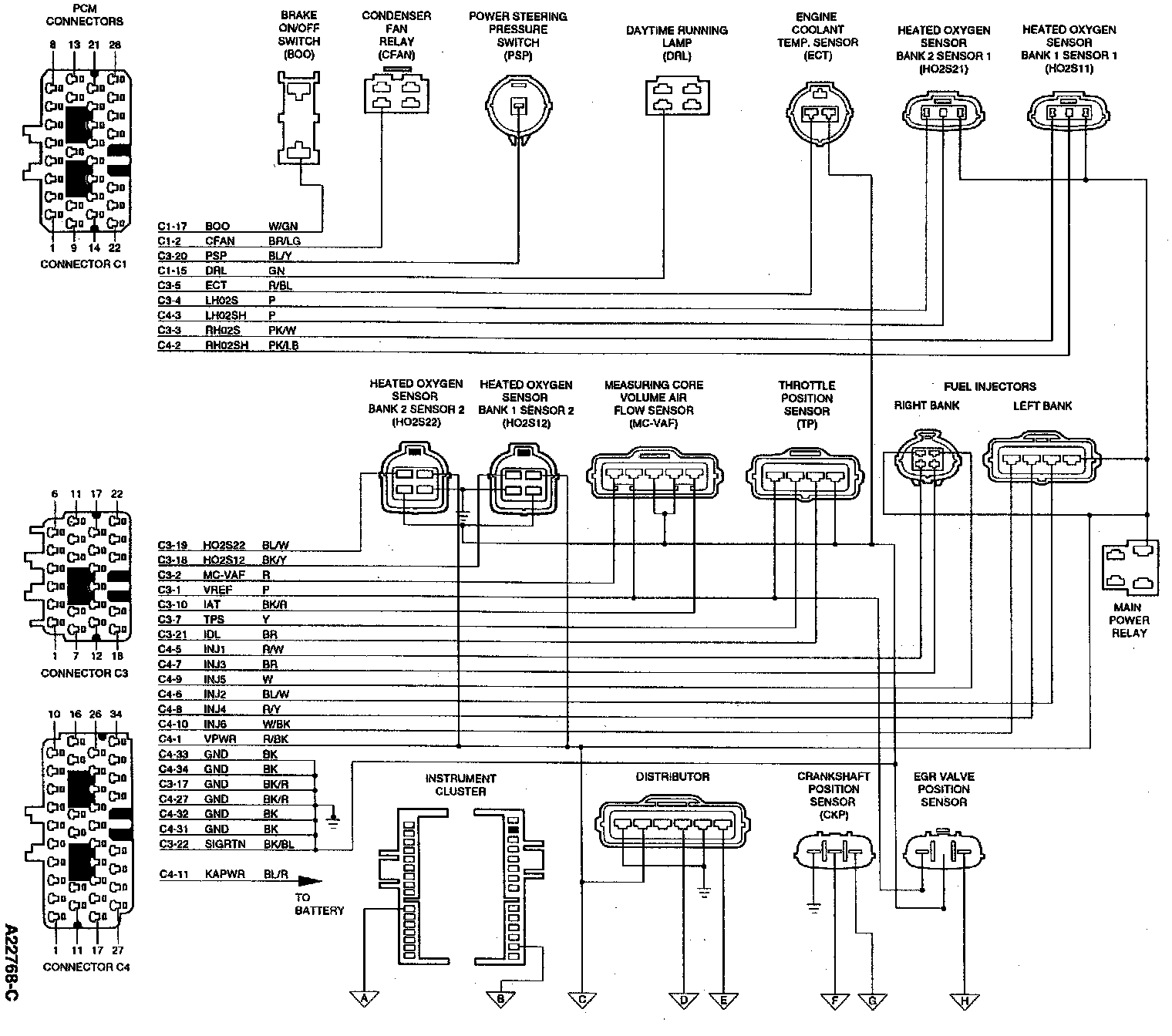

Electrical Schematic:

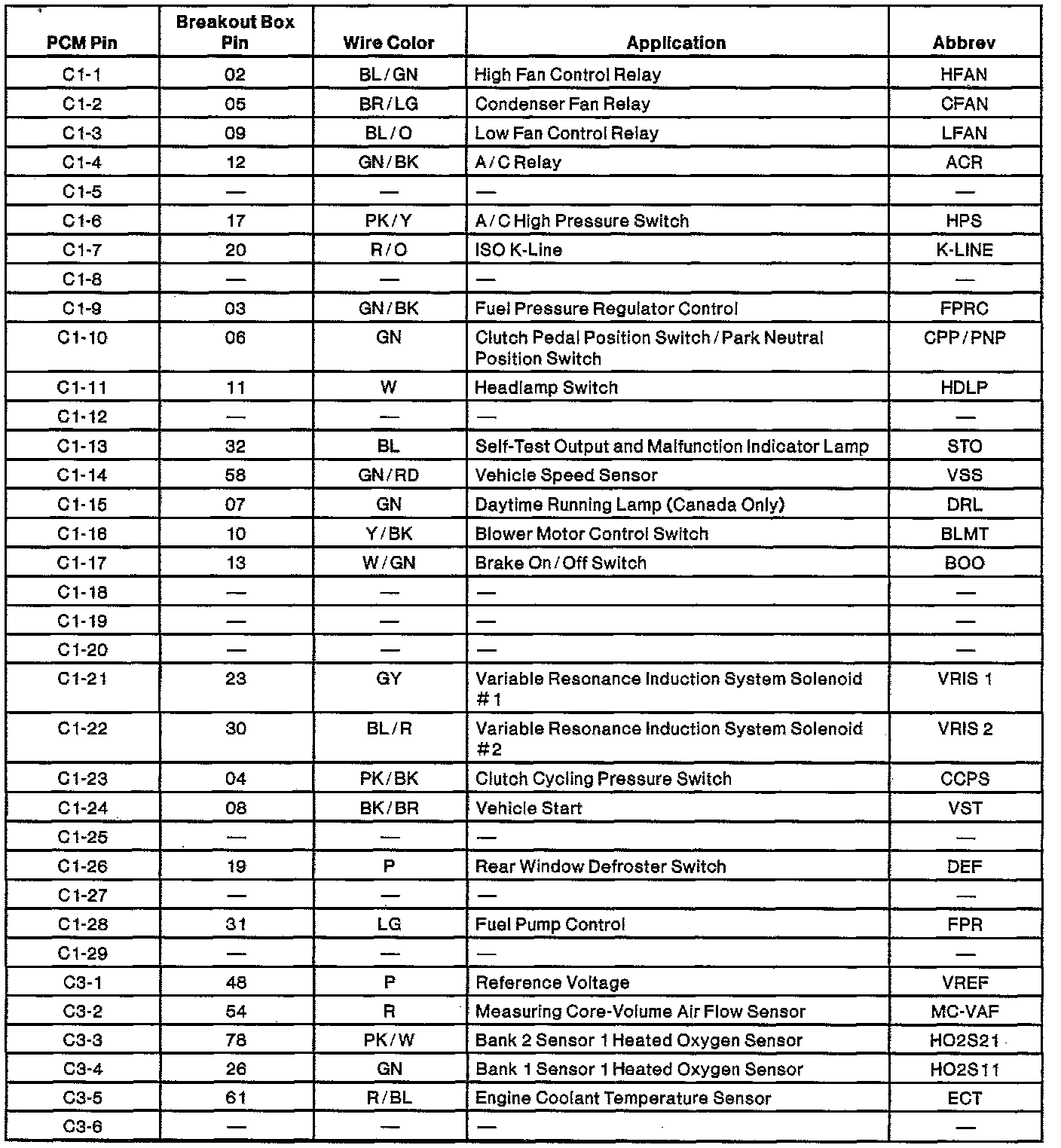

Powertrain Control Module (PCM) Connector Pin Usage:

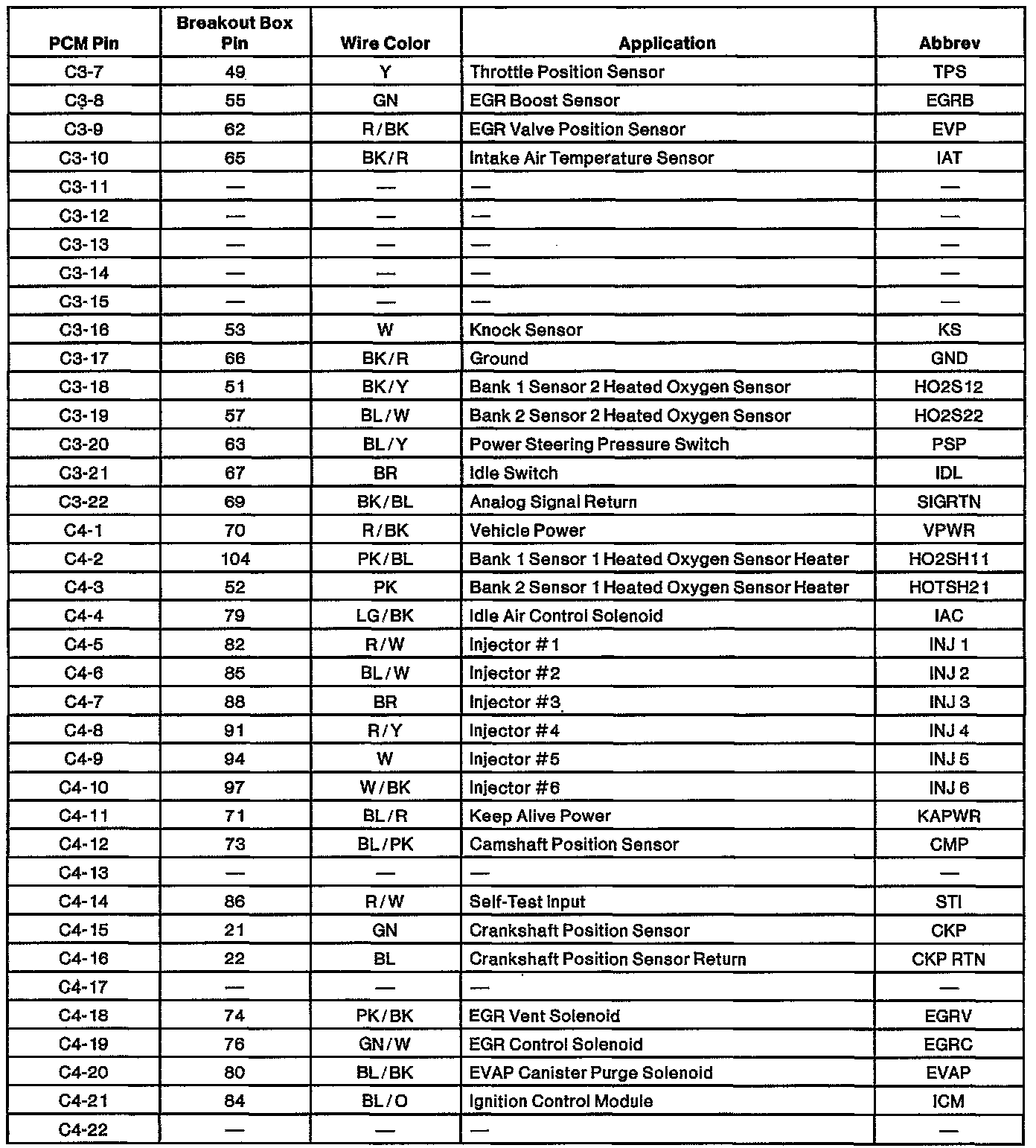

Powertrain Control Module (PCM) Connector Pin Usage:




Powertrain Control Module (PCM) Connector Pin Usage:
