Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

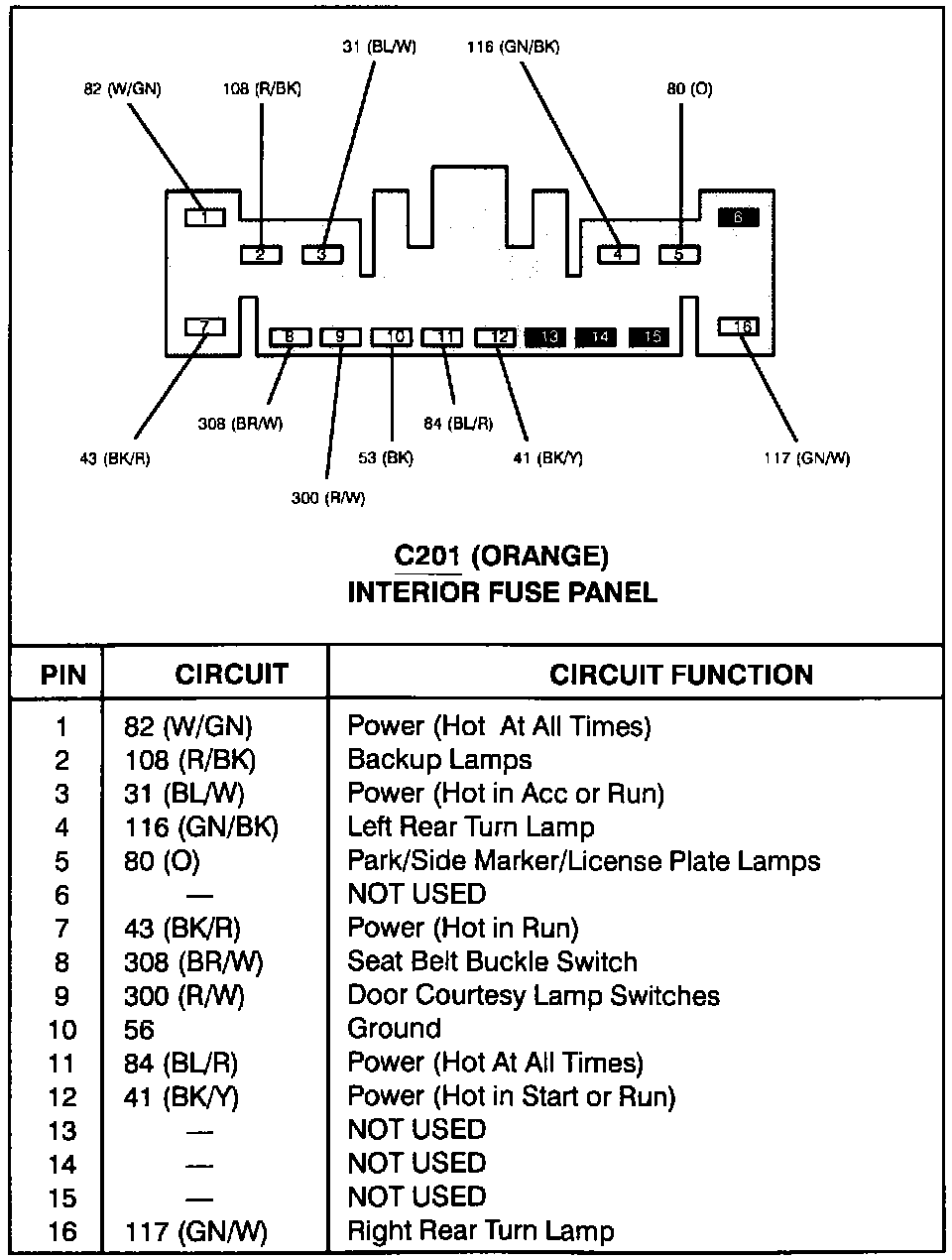

Interior Fuse Panel (C201):

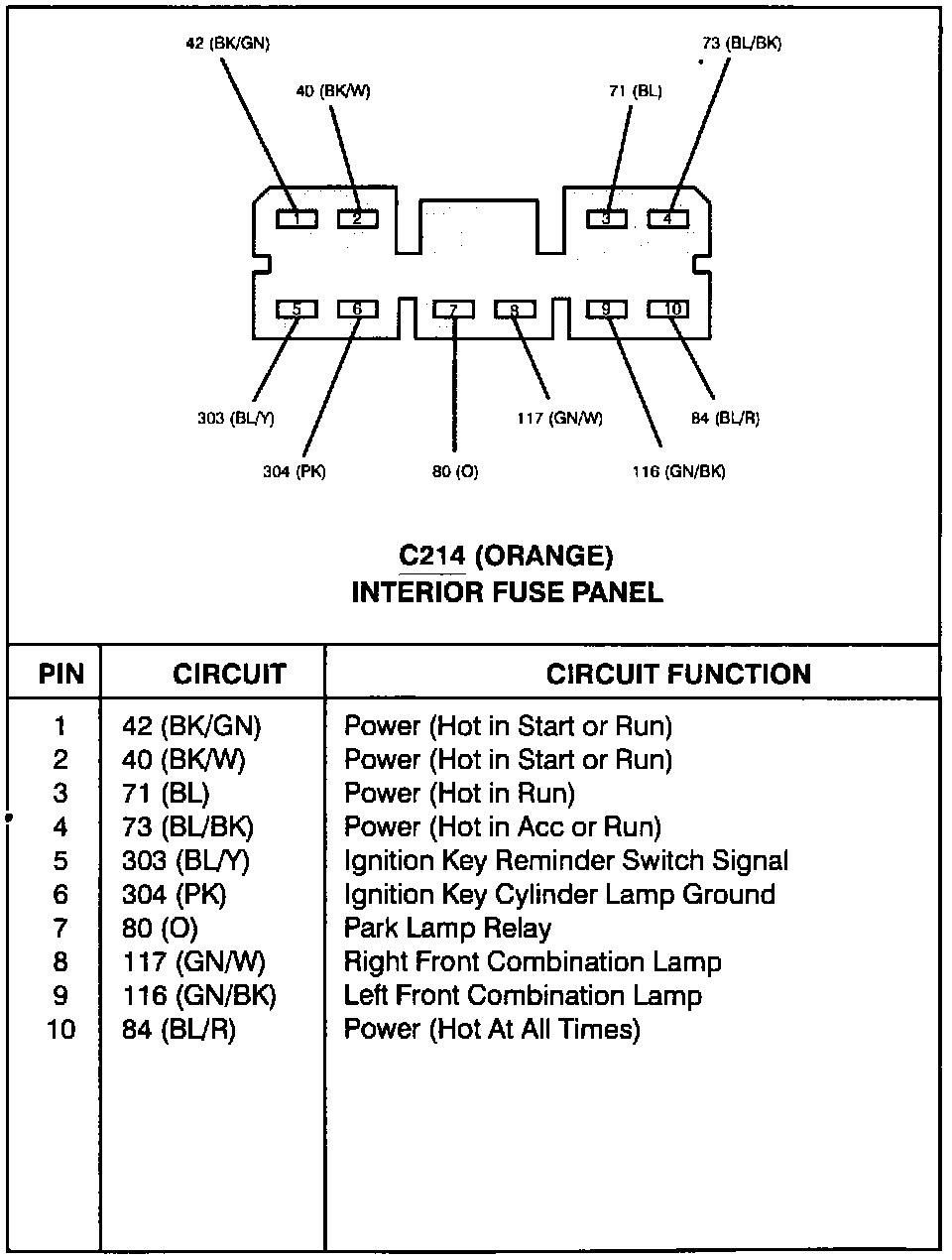

Interior Fuse Panel (C214):

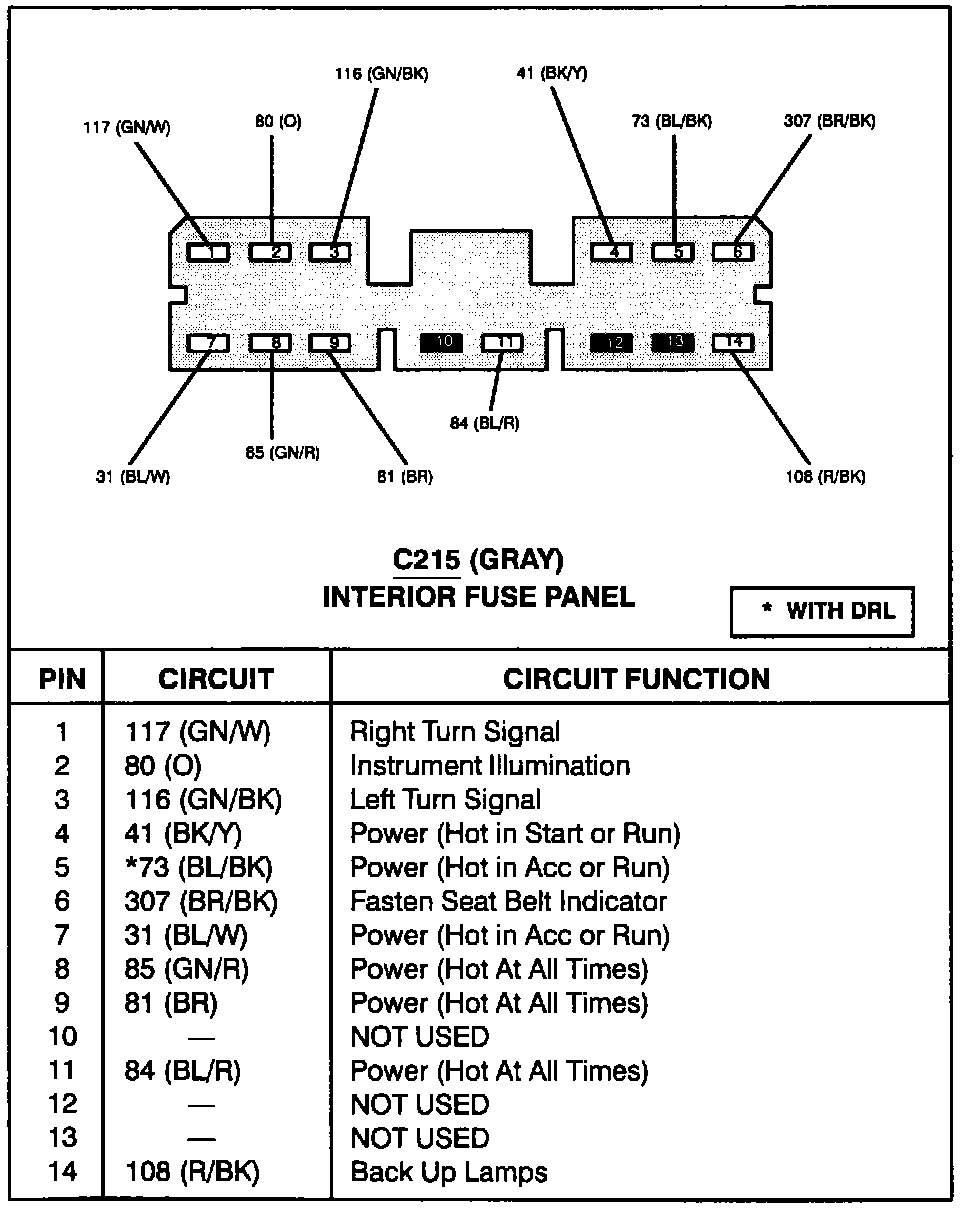

Interior Fuse Panel (C215):

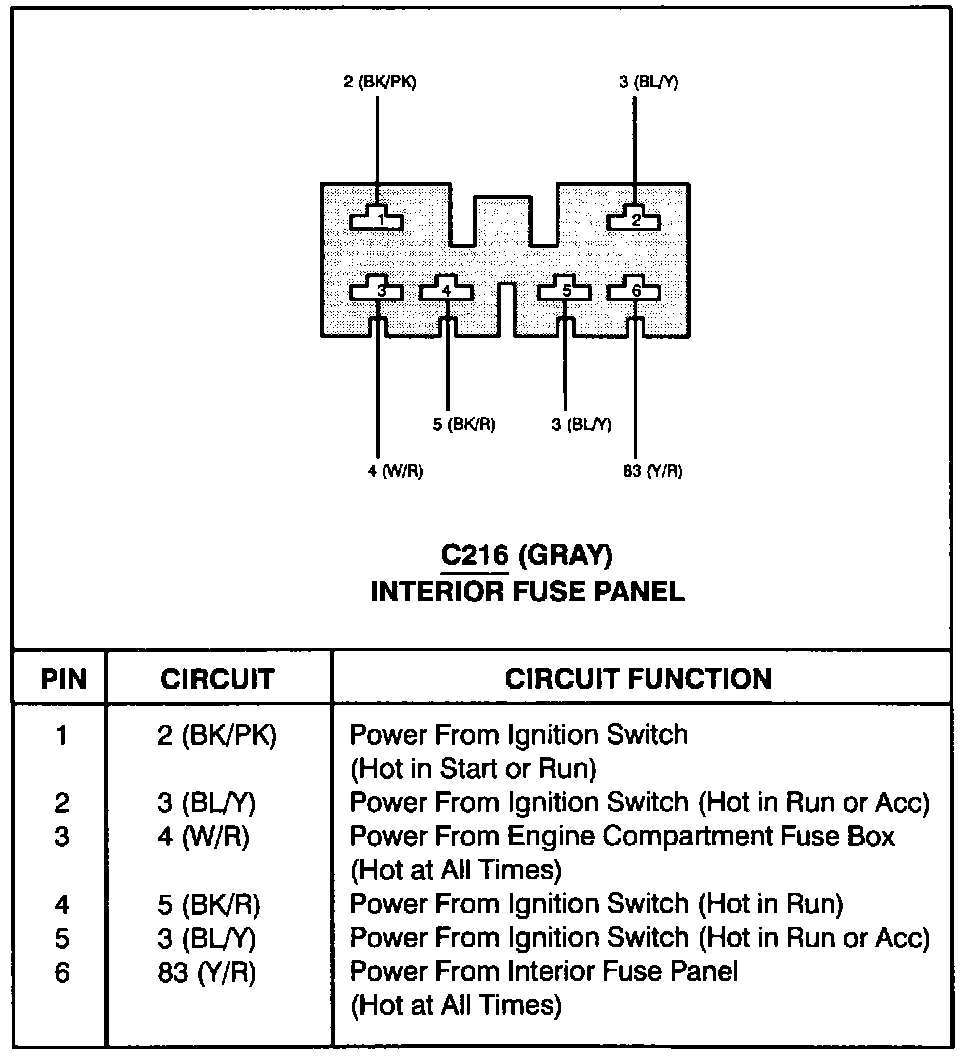

Interior Fuse Panel (C216):
