Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Block Diagrams and Connector Pin Usage >> With Automatic Transaxle

With Automatic Transaxle

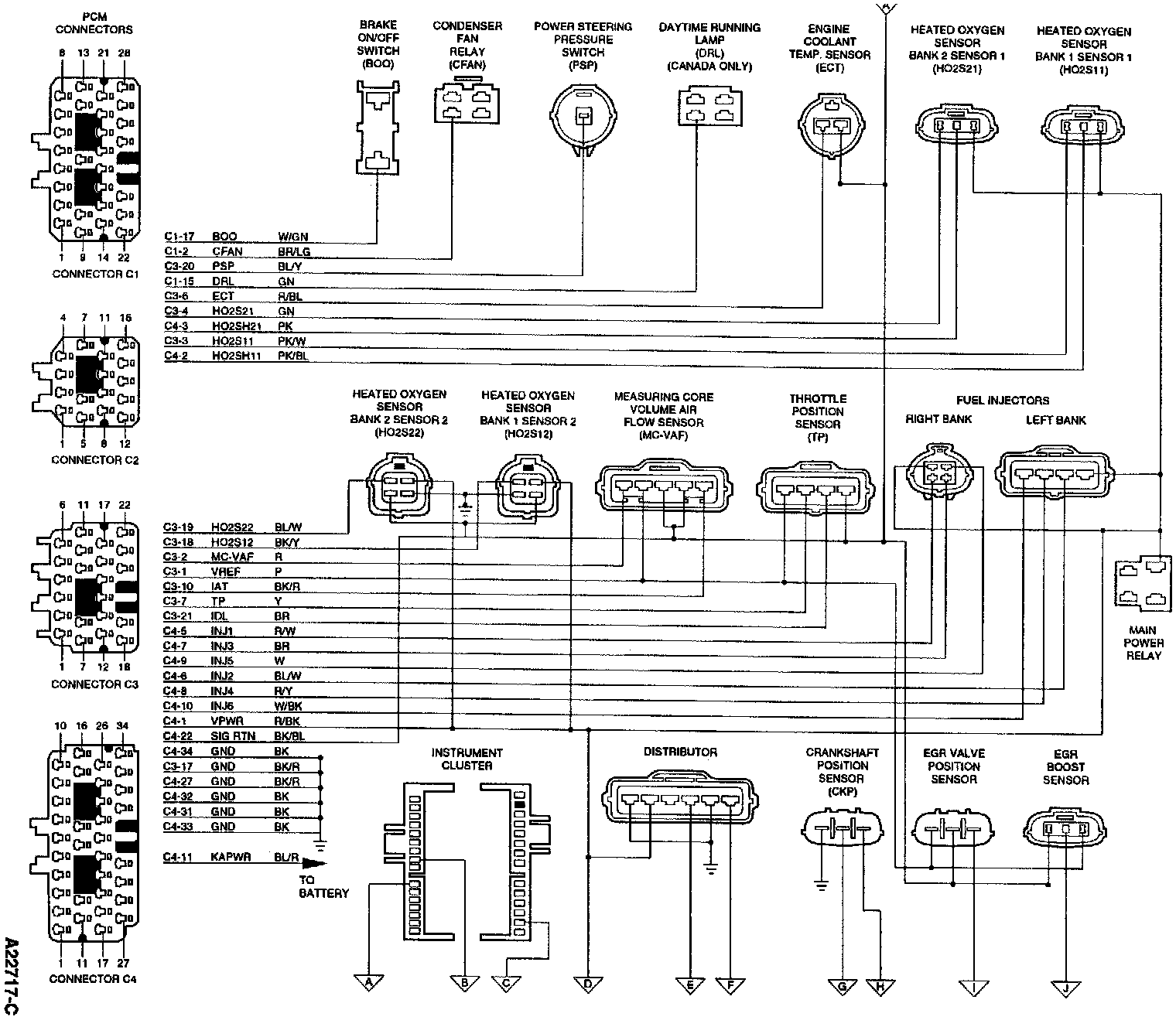

Electrical Schematic:

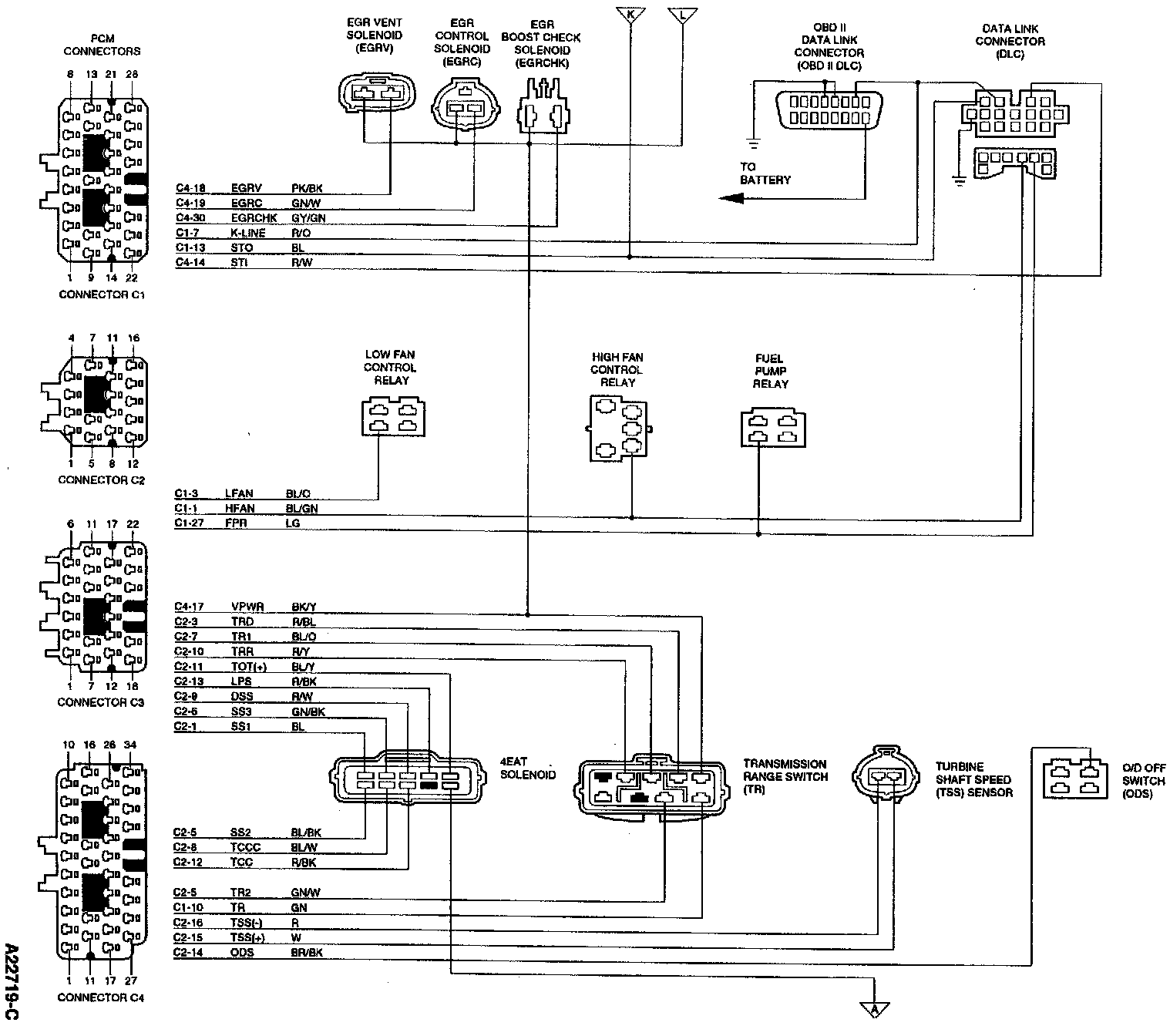

Electrical Schematic:

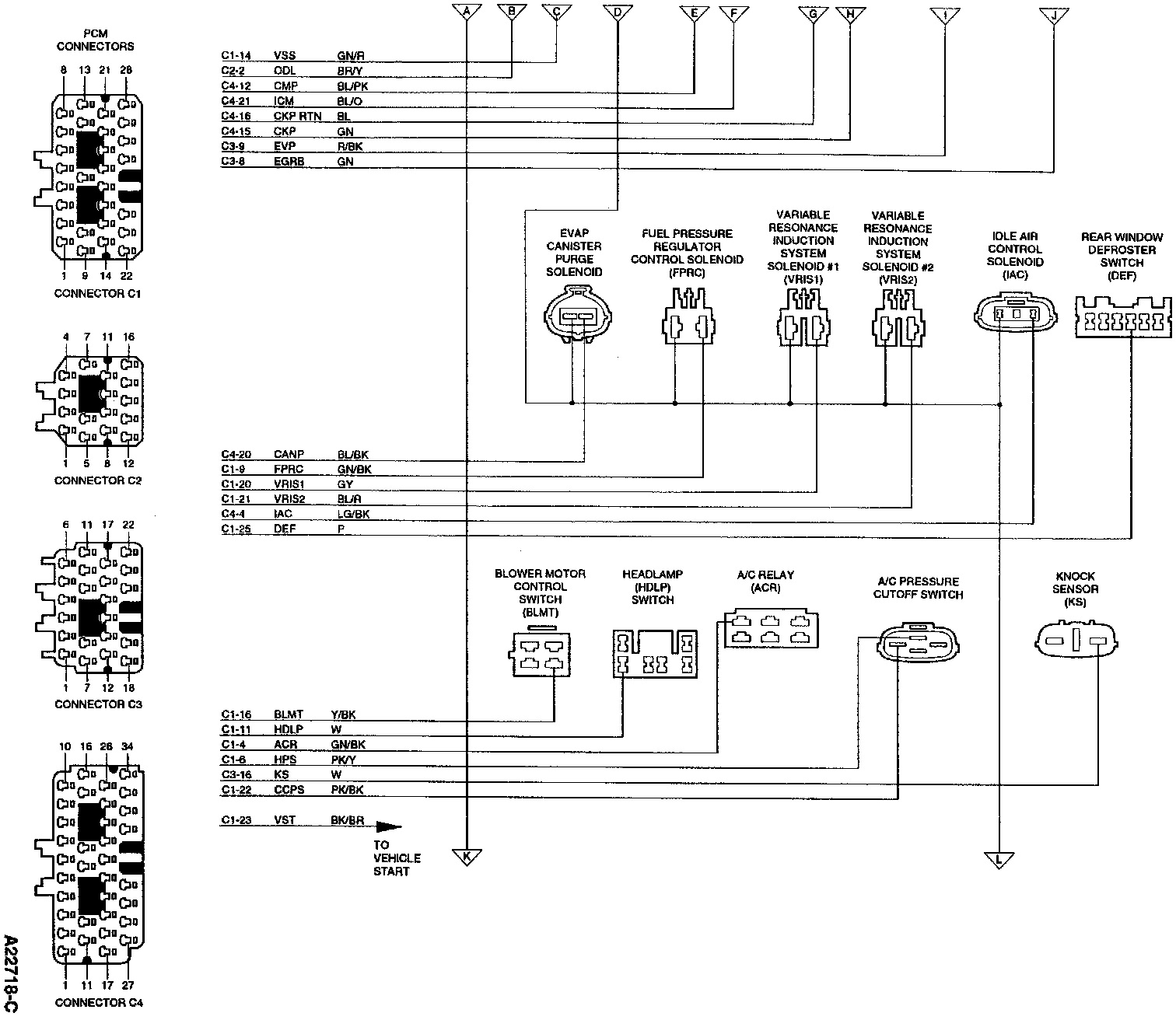

Electrical Schematic:

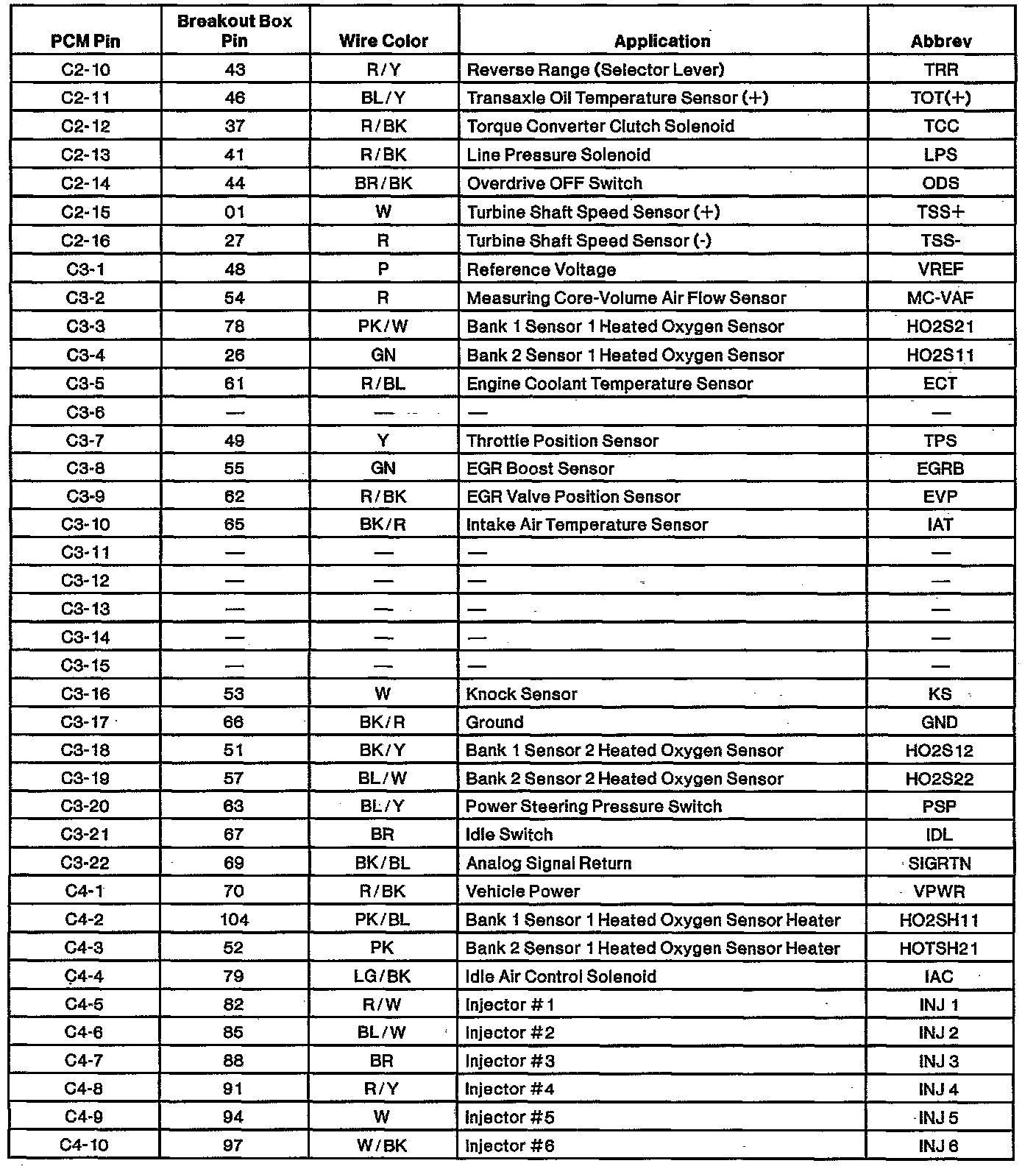

Powertrain Control Module (PCM) Connector Pin Usage:

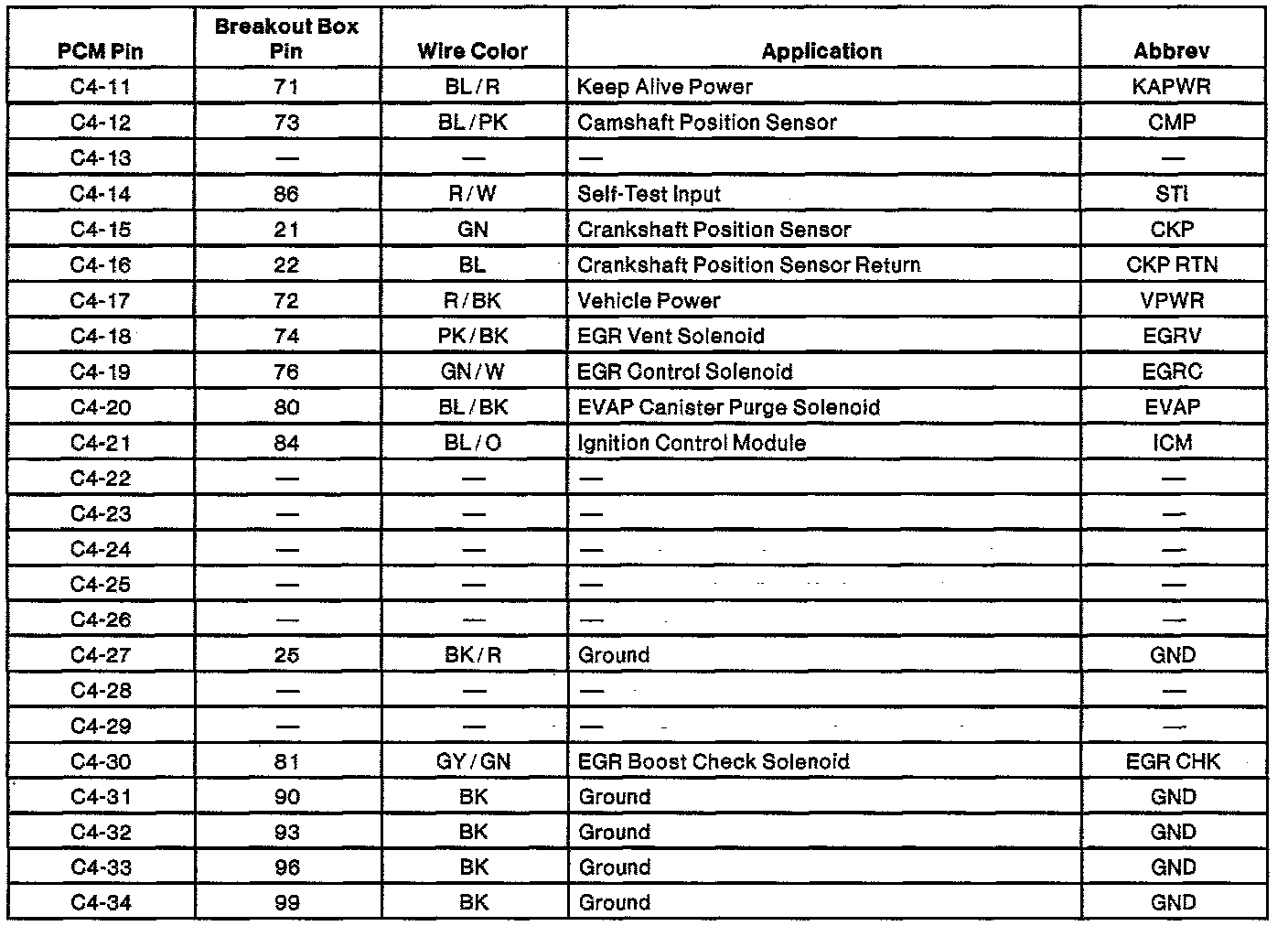

Powertrain Control Module (PCM) Connector Pin Usage:

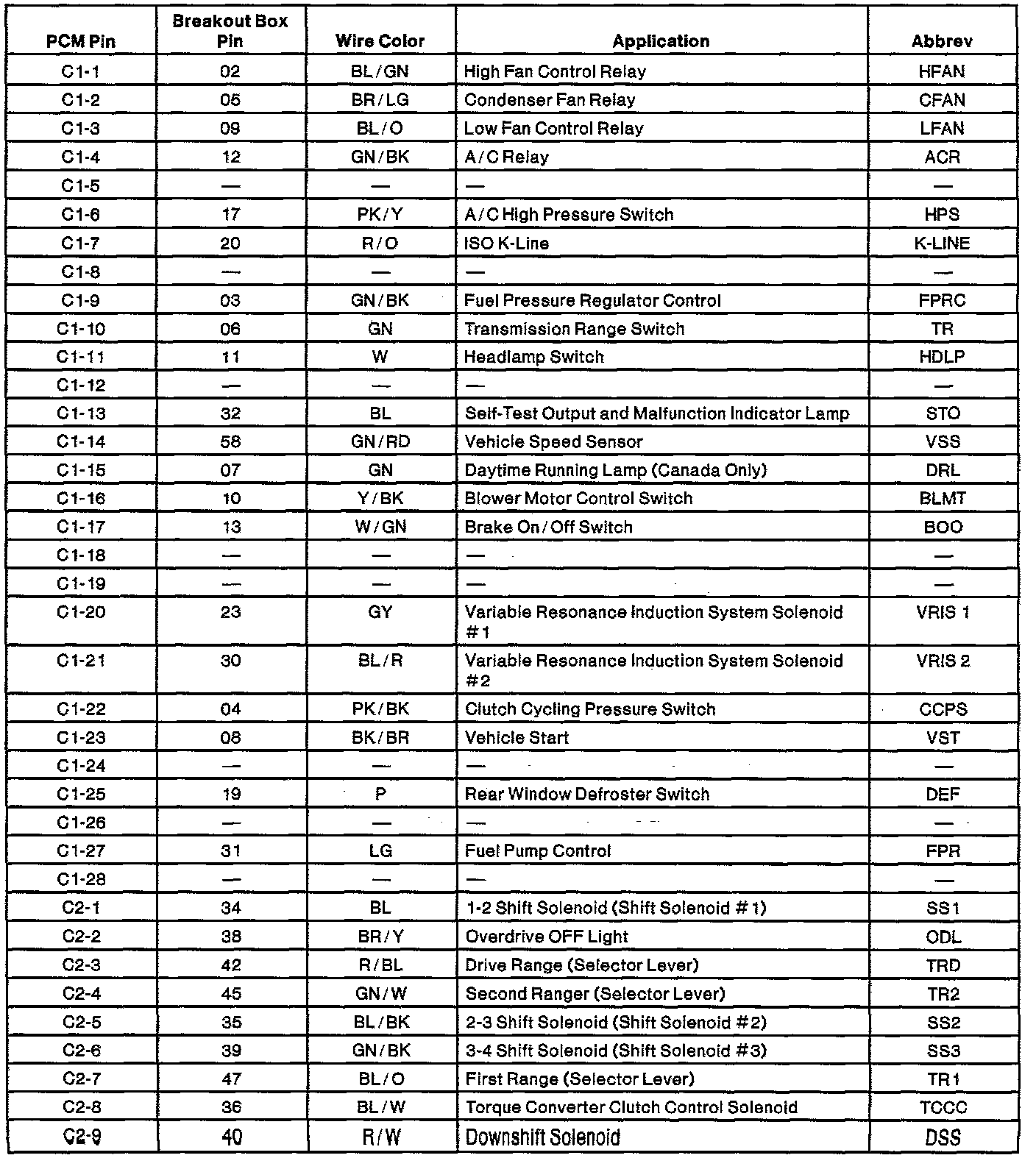

Powertrain Control Module (PCM) Connector Pin Usage:
