Air Bag Control Module
Air Bag Control Module

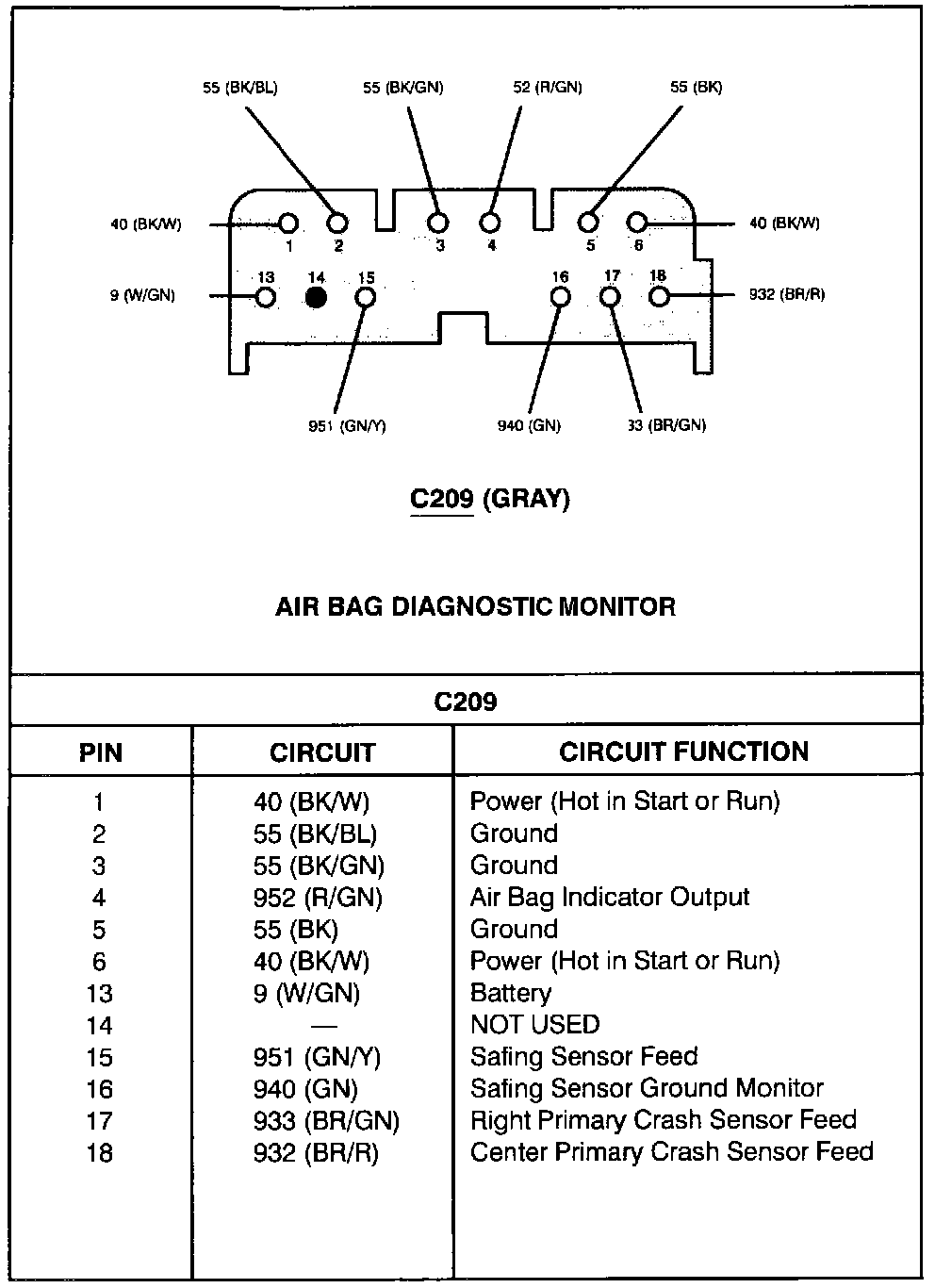

Air Bag Diagnostic Monitor (C209):

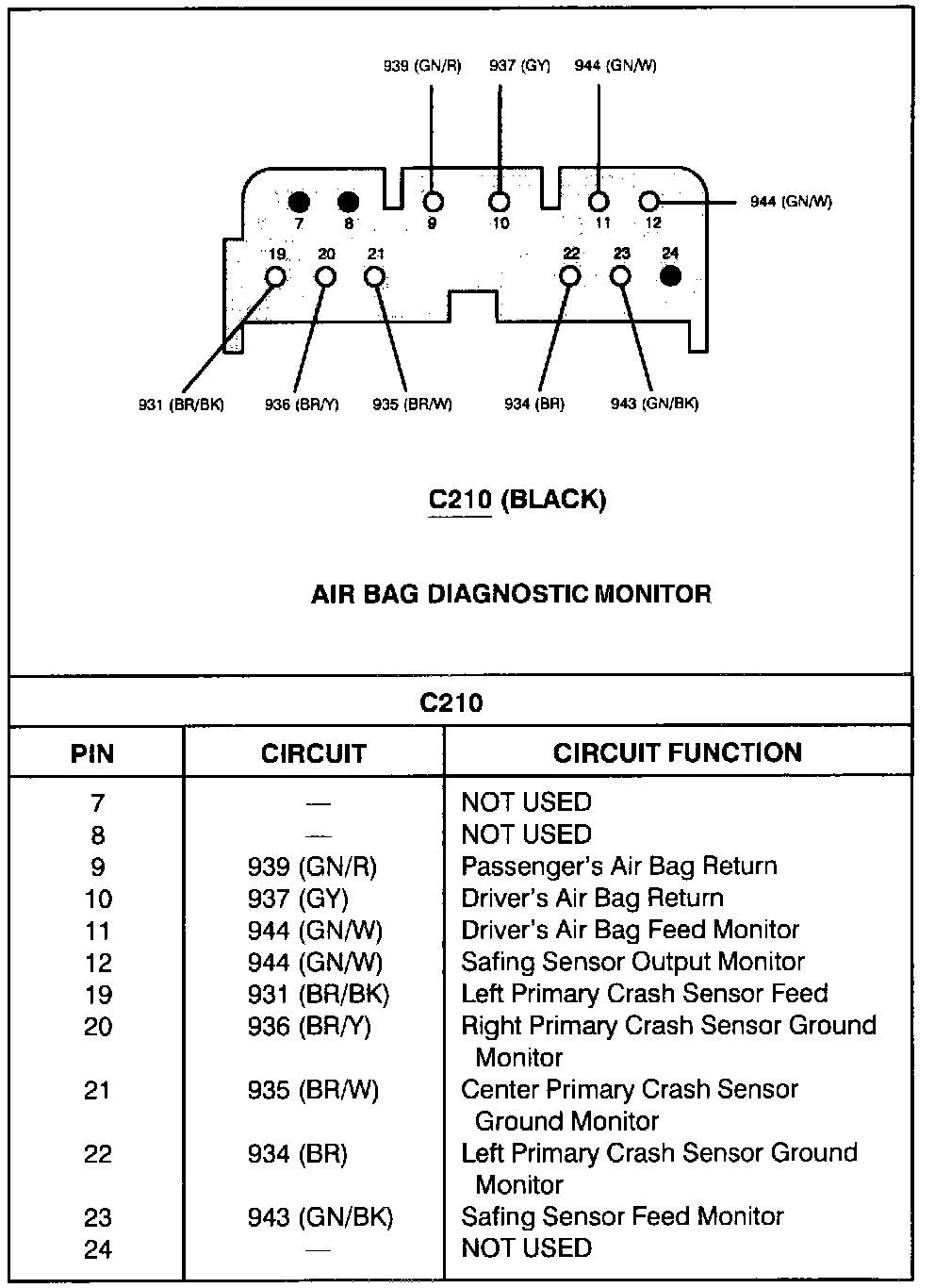

Air Bag Diagnostic Monitor (C210):
