Interior Fuse Panel

NOTE: Interior fuse panel is located under driver's side of instrument panel. See Figure.

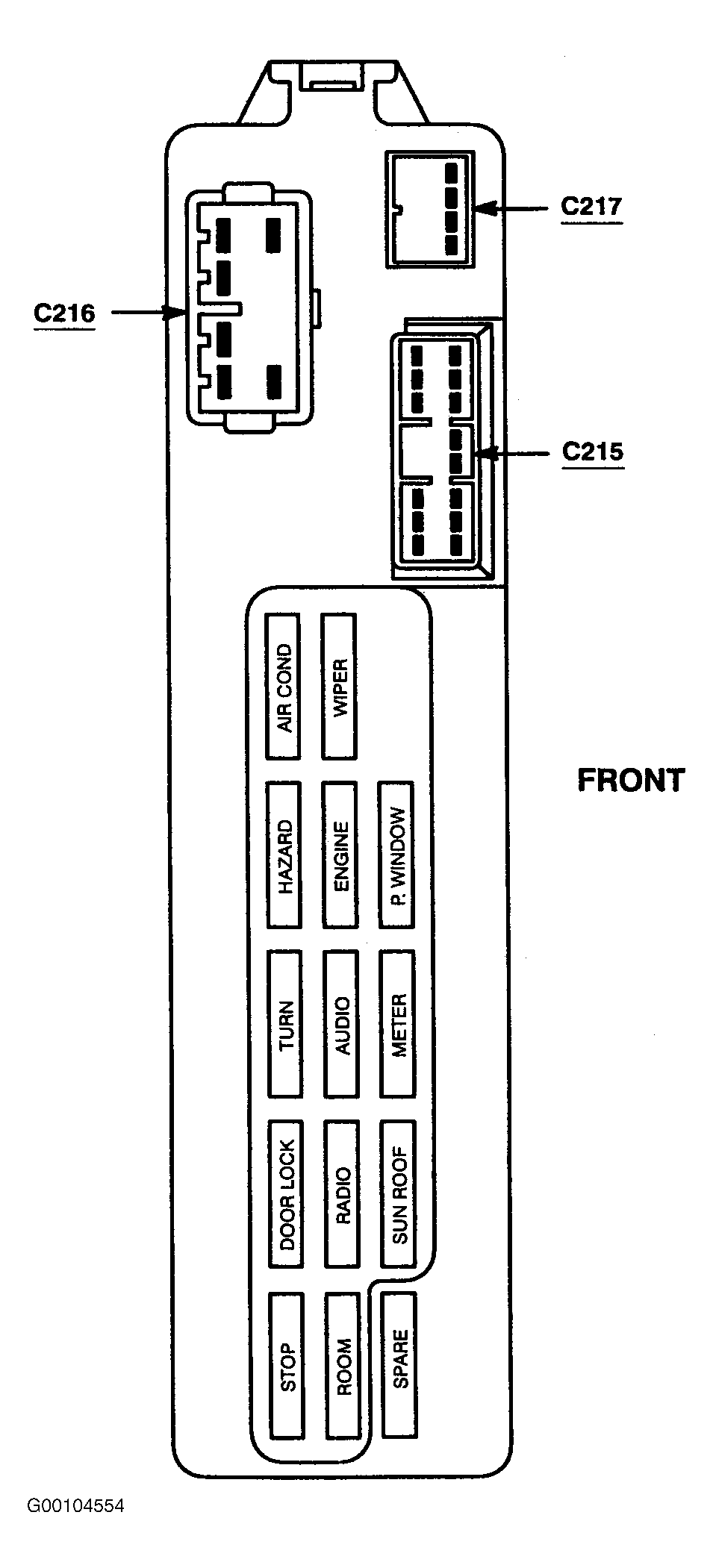

Fig 1: Identifying Interior Fuse Panel Components
G00104554Courtesy of FORD MOTOR CO.

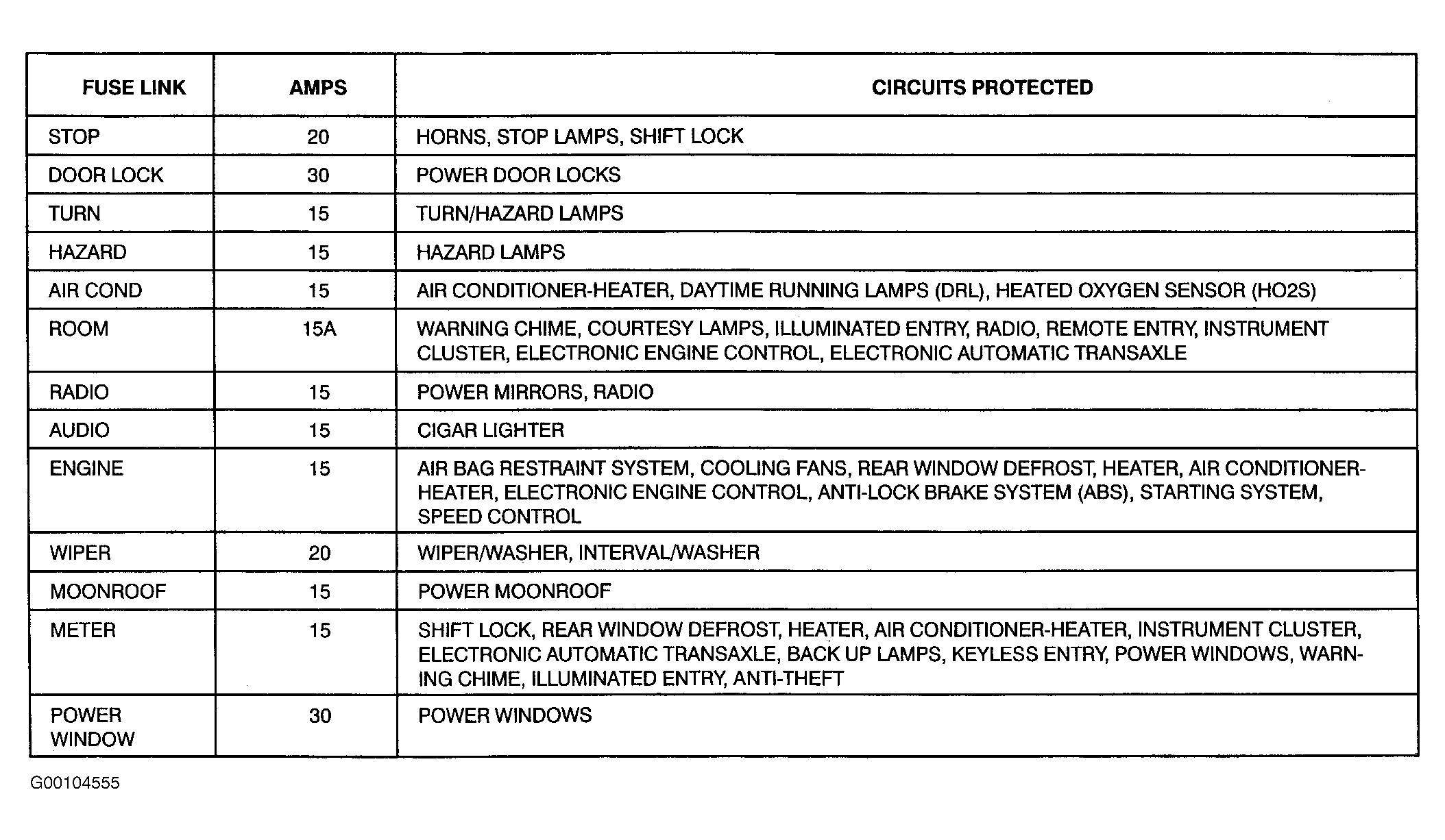

Fig 2: Interior Fuse Panel Legend
G00104555Courtesy of FORD MOTOR CO.
