Ignition Switch: Testing and Inspection

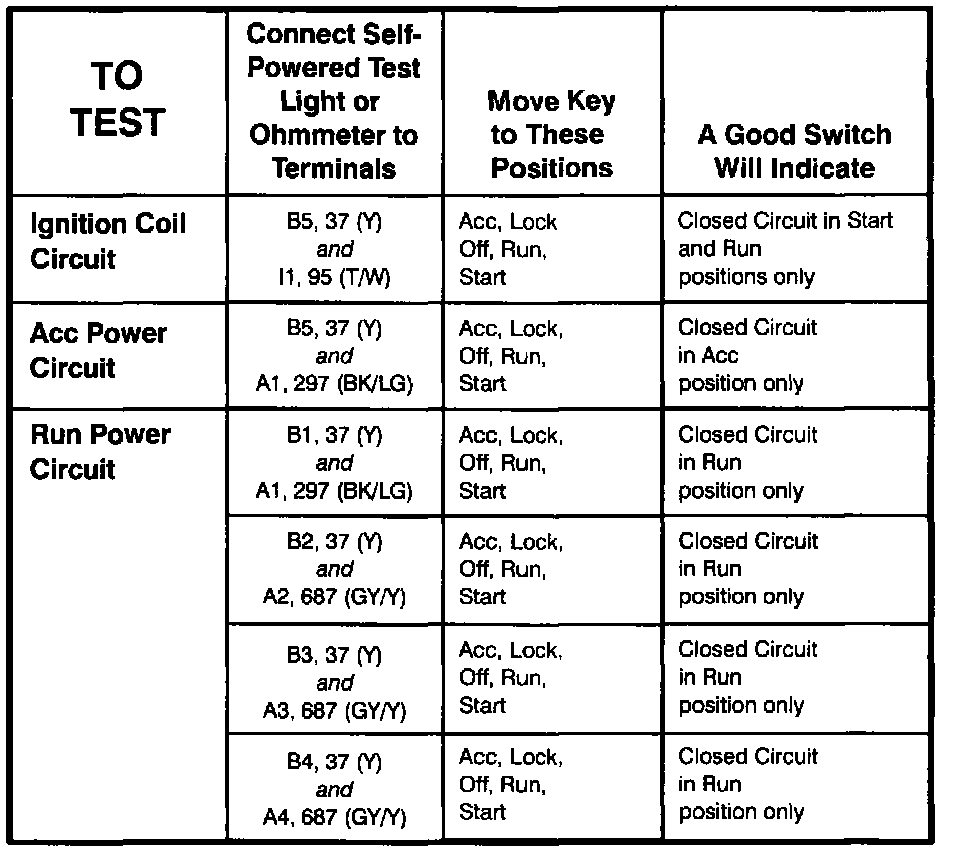

Ignition Switch-Component Testing Procedure (Part 1 Of 2):




Ignition Switch-Component Testing Procedure (Part 2 Of 2):




Ignition Switch-Terminal Locations:

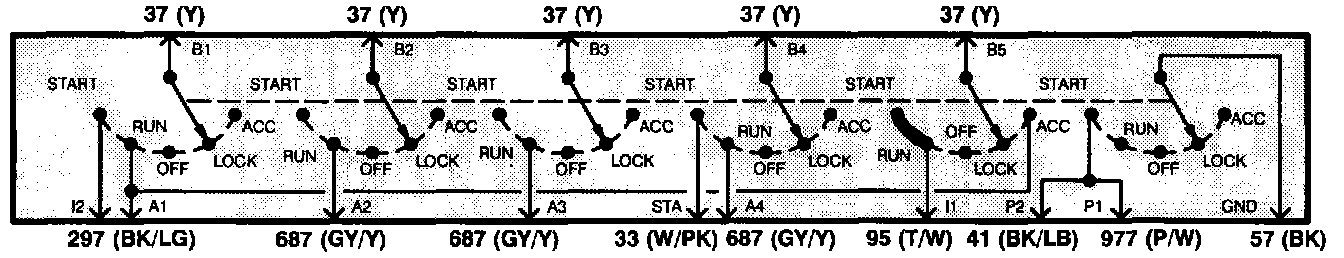

Ignition Switch-Schematic:
