Diagnostic Trouble Code Tests and Associated Procedures

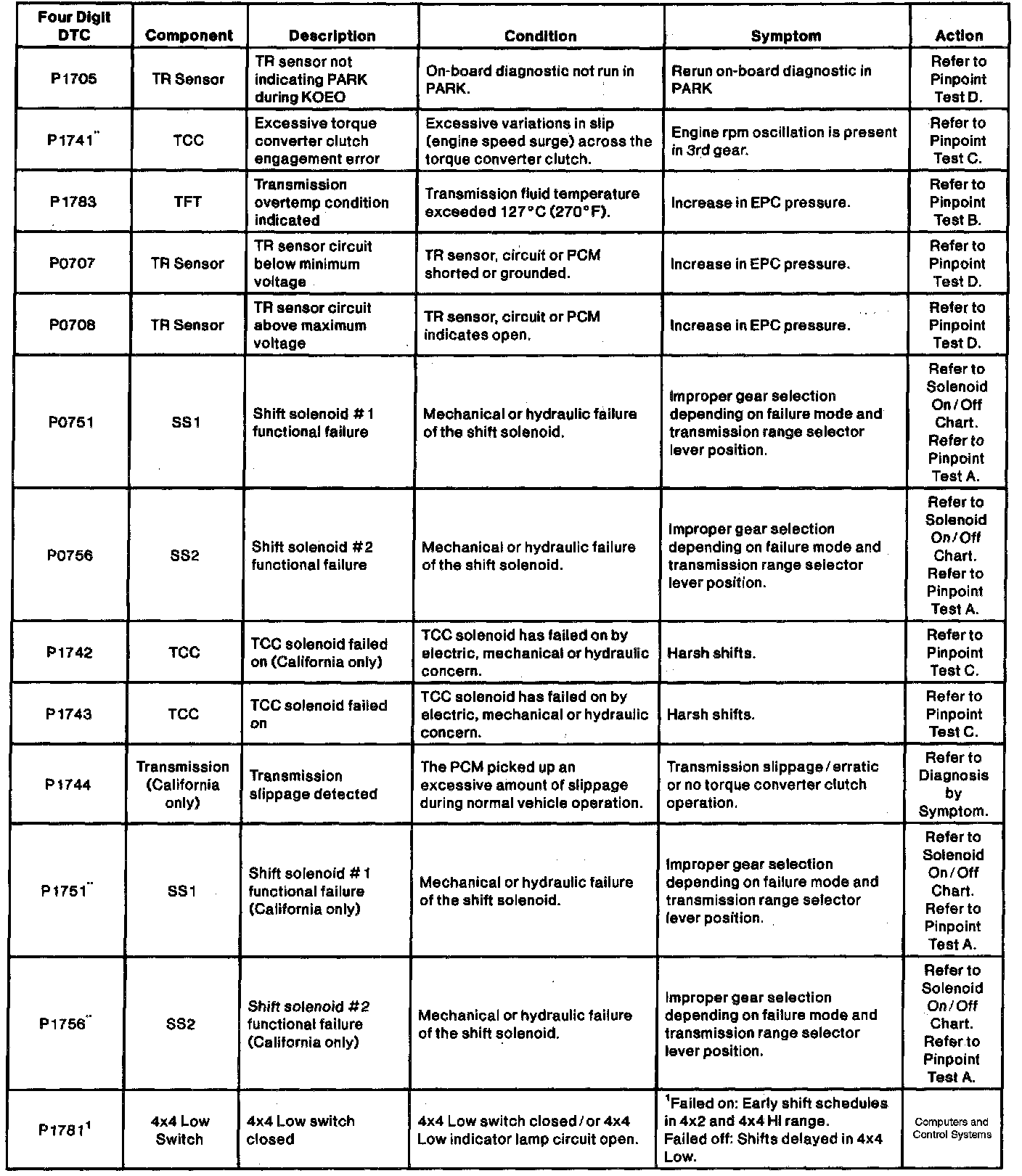

On-Board DTC Description Chart:

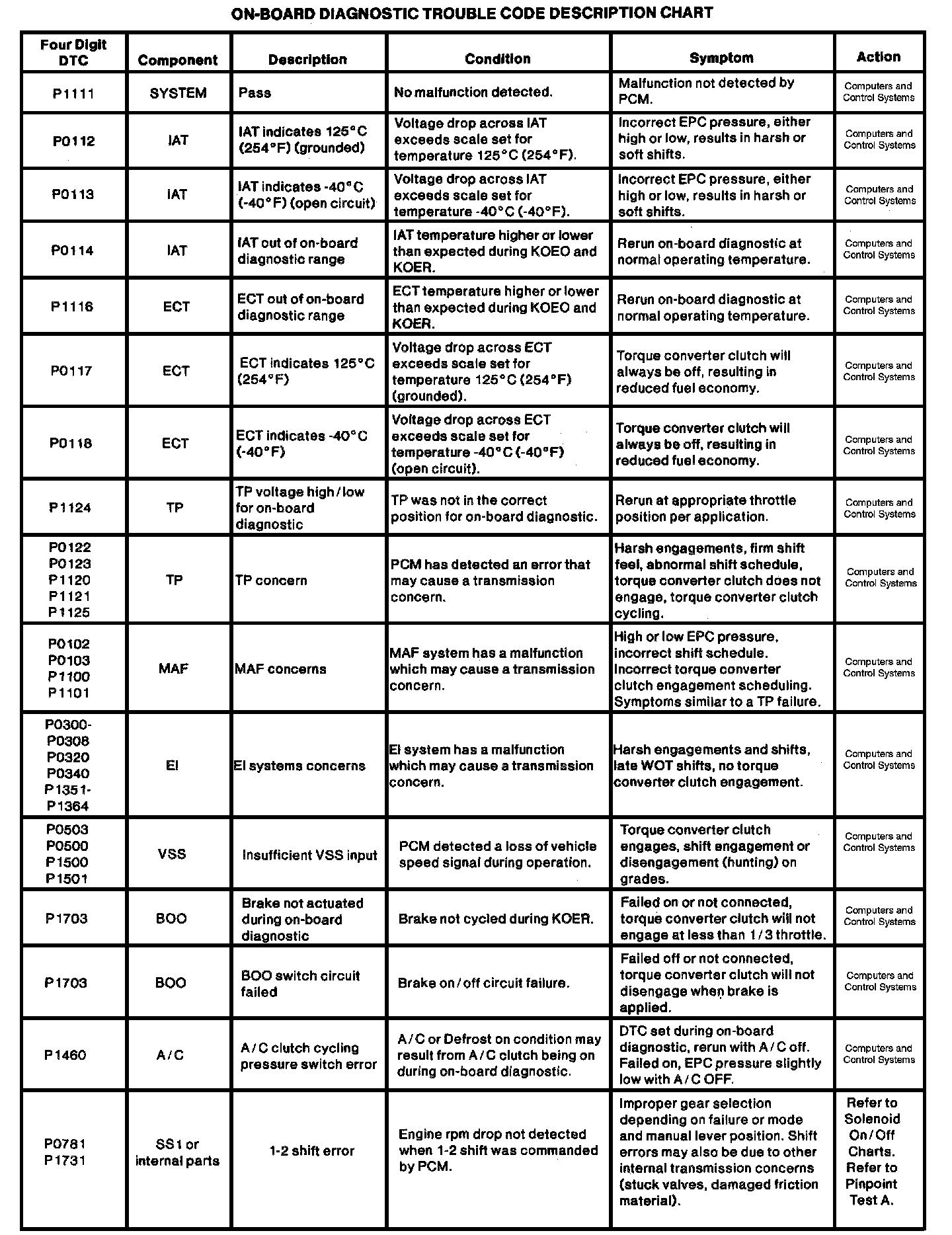

On-Board DTC Description Chart, Continued:

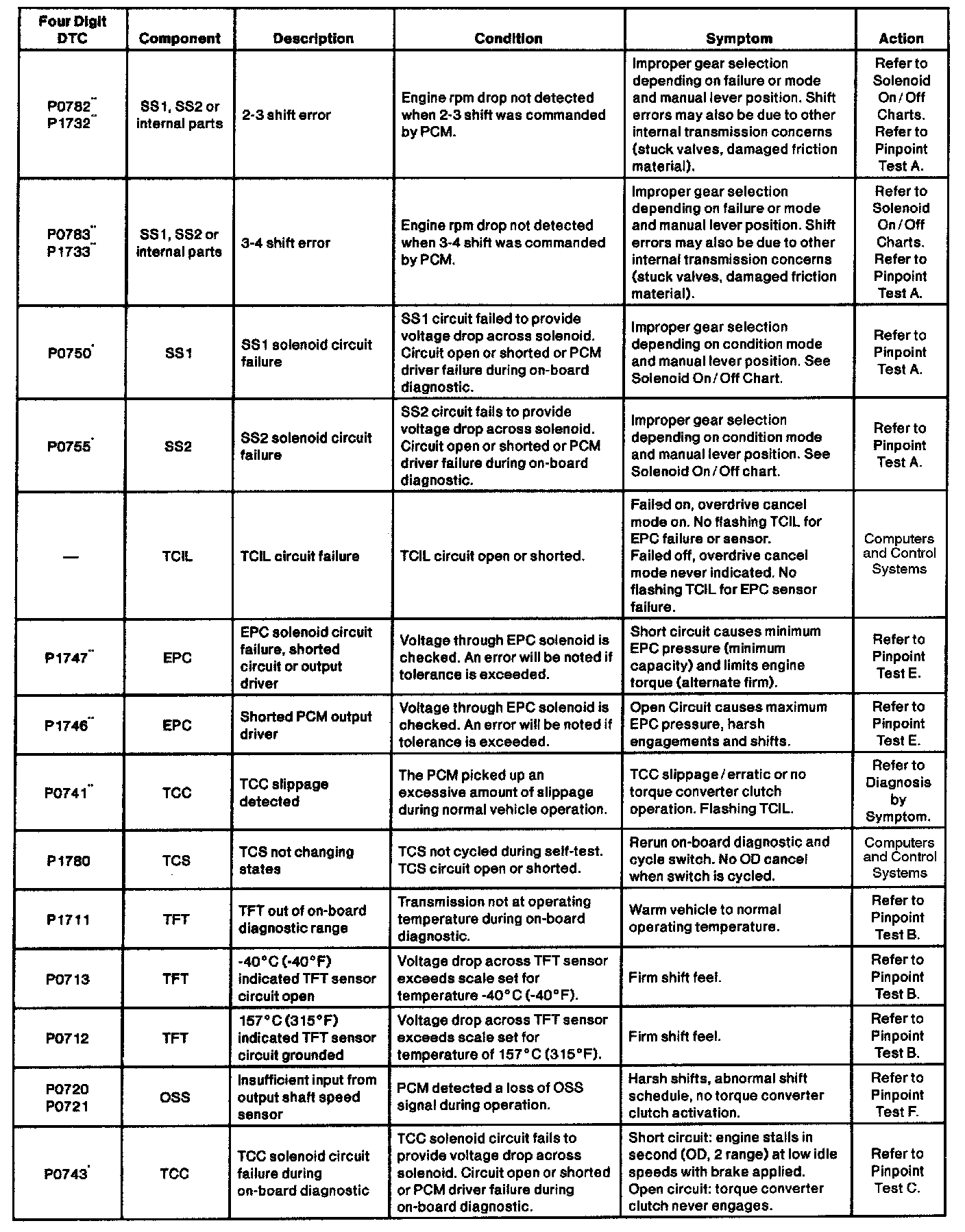

On-Board DTC Description Chart, Continued:
