Home
>>
Ford
>>
1996
>>
Explorer 2WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

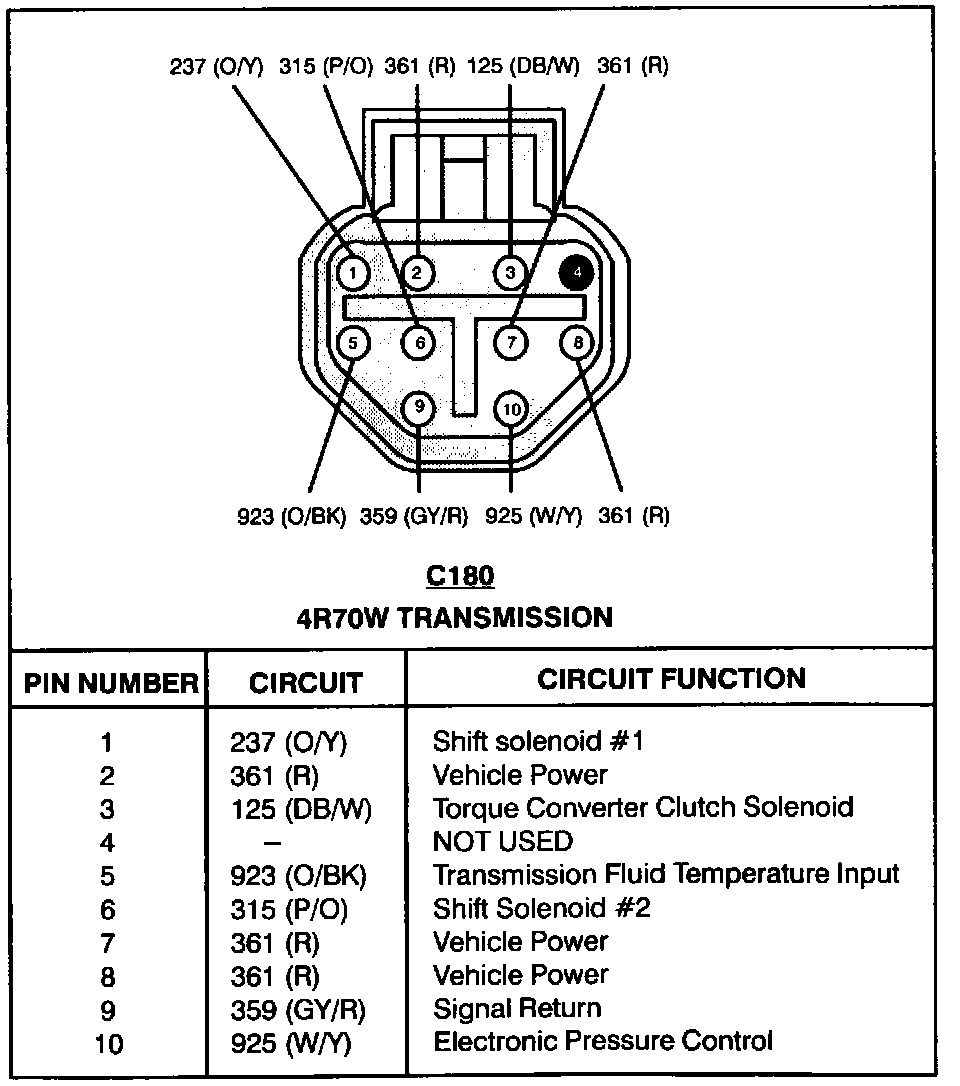

4R70W Transmission:
