Home >> Ford >> 1996 >> Explorer 2WD V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control ( Automatic - Electronic ) >> Suspension Control Module >> Electronic Level Control (ELC) Module

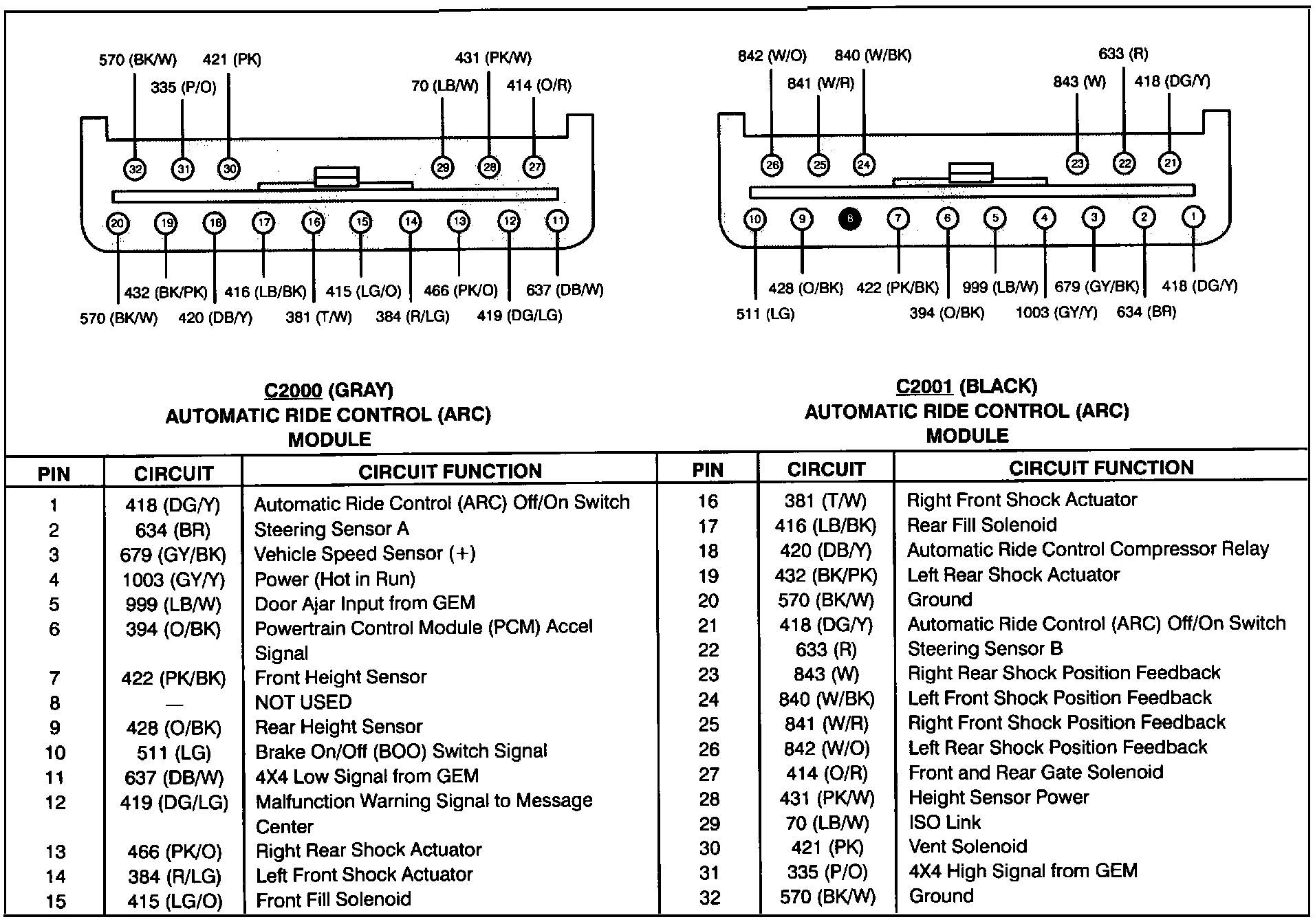

Electronic Level Control (ELC) Module

Automatic Ride Control Module:
