Home
>>
Ford
>>
1996
>>
Explorer 2WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Front Control Unit
>>
LUX
LUX

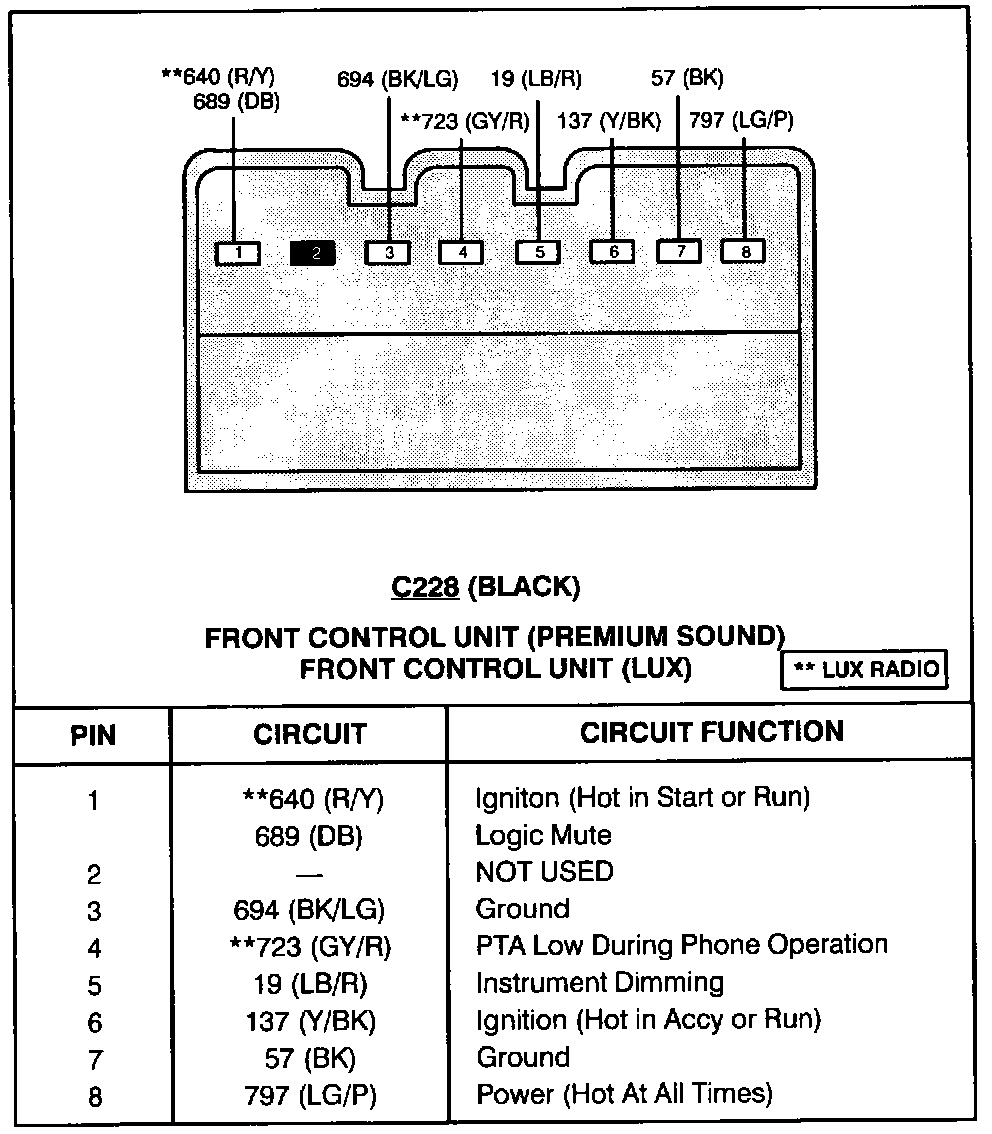

Front Control Unit (Premium Sound/Lux):
