Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Integrated Control Relay Module >> Diagrams

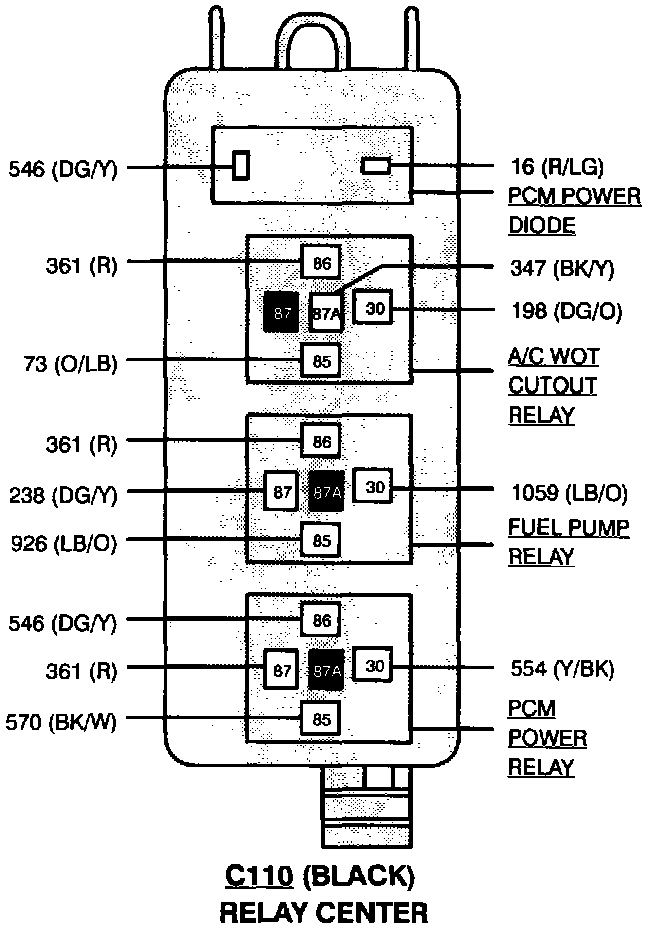

Integrated Control Relay Module: Diagrams

Relay Center:
