Pressure Feedback Exhaust Sensor: Service and Repair

1. Disconnect fuel charging wiring connector from Exhaust Gas Recirculation (EGR) Valve backpressure transducer.
2. Disconnect EGR backpressure transducer hoses from EGR backpressure transducer.

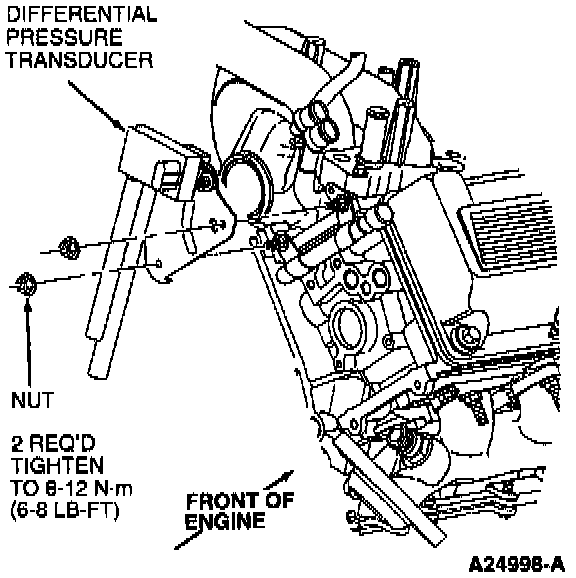

3. Remove EGR backpressure transducer retaining nuts and EGR backpressure transducer from vehicle.
4. To install, reverse removal procedure. Tighten two retaining nuts to 8-12 Nm (6-8 lb in).
