Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Locations

Lamp Control Module: Locations

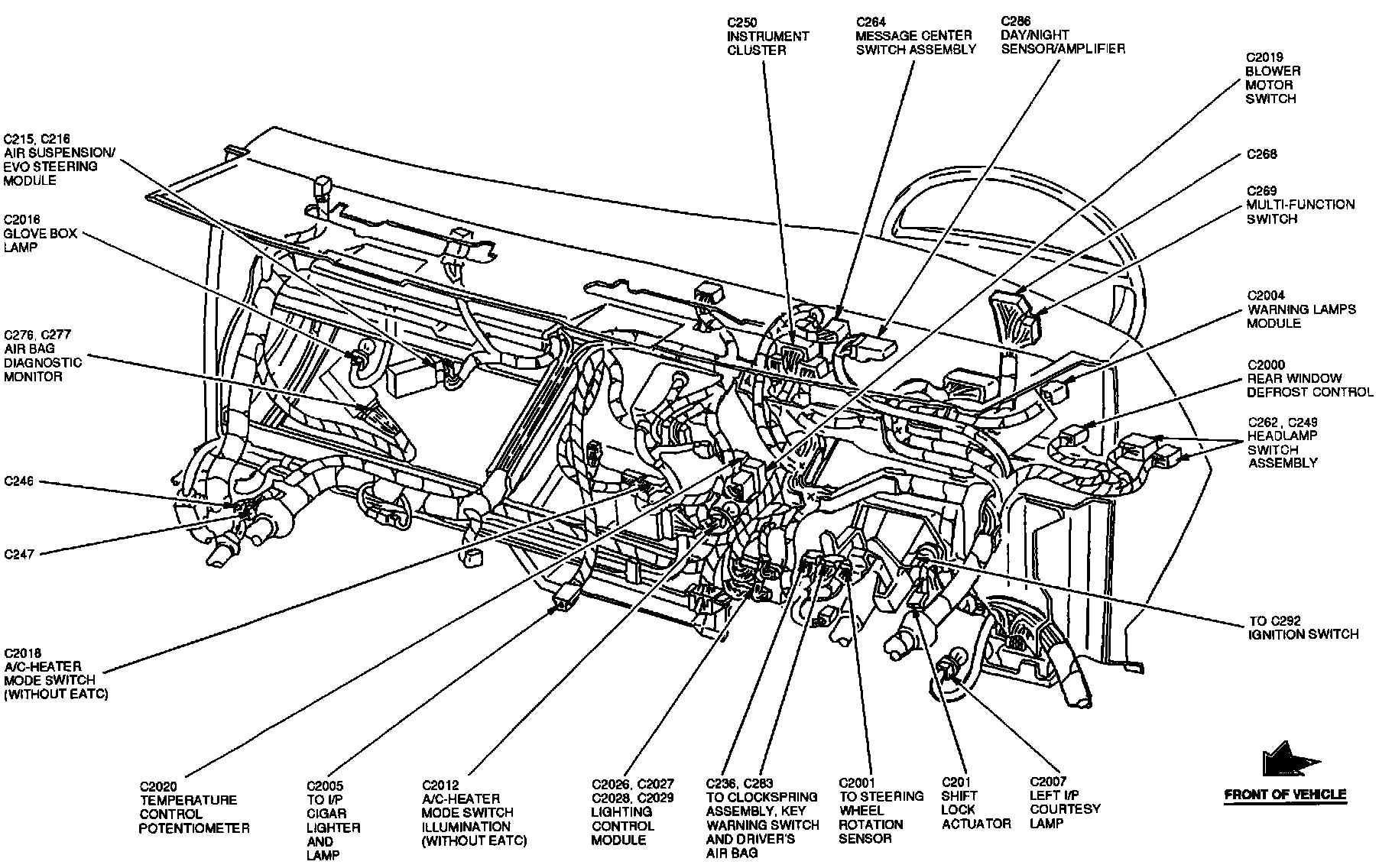

Instrument Panel View:





The Lighting Control Module is located behind LH side of the instrument panel.
