Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

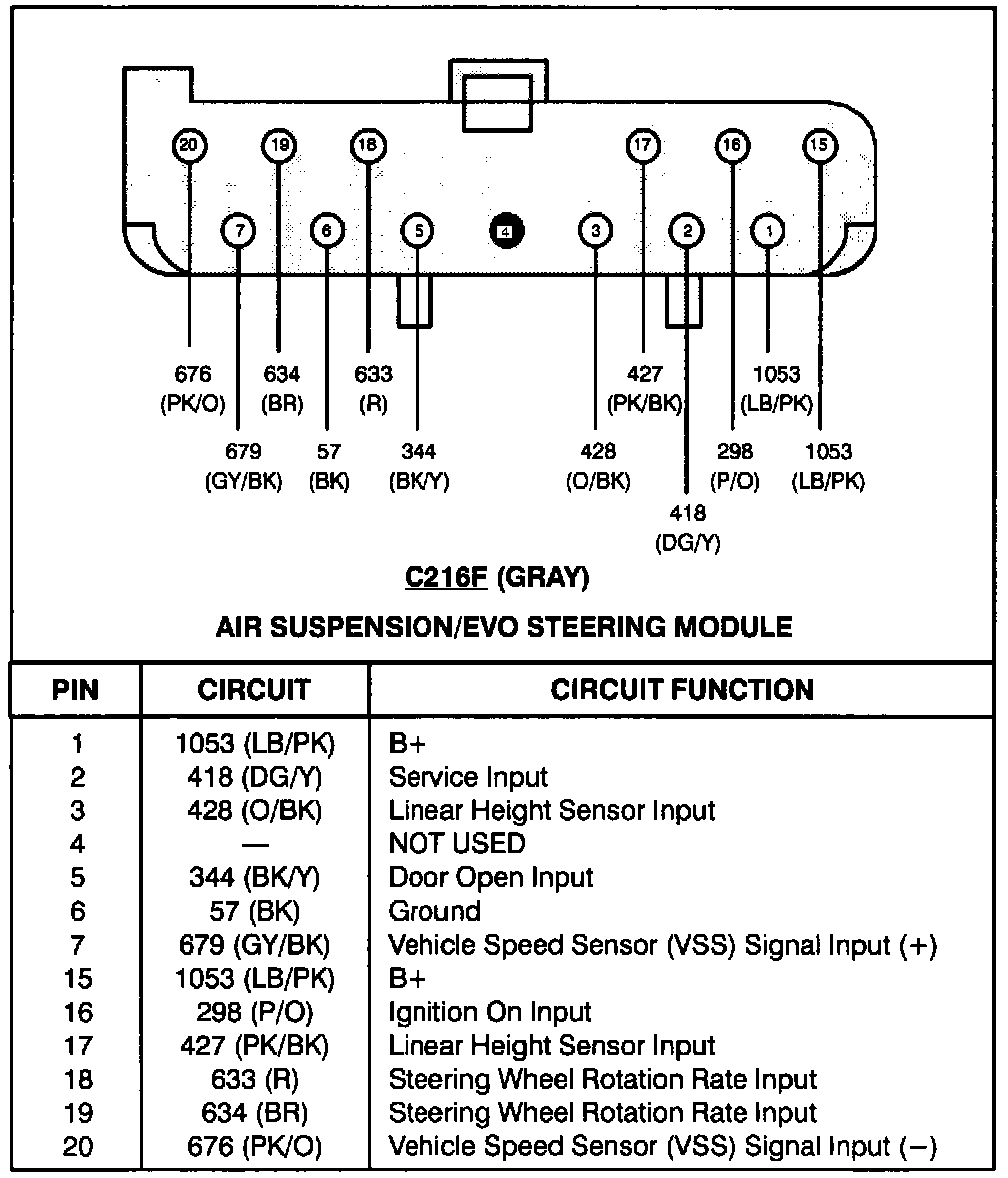

Air Suspension/EVO Steering Module-C216:

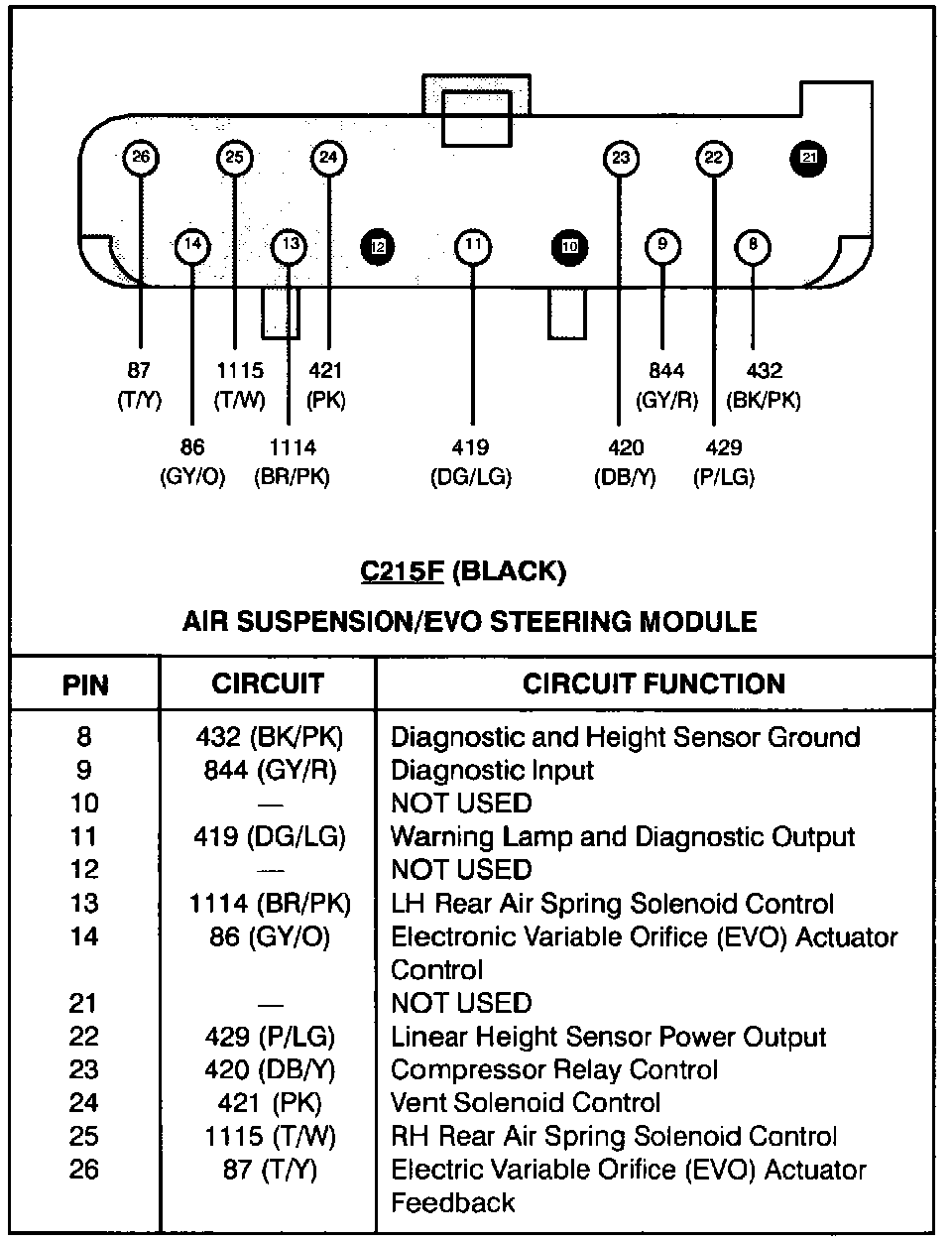

Air Suspension/EVO Steering Module-C215:
