Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Without Air Suspension

Without Air Suspension

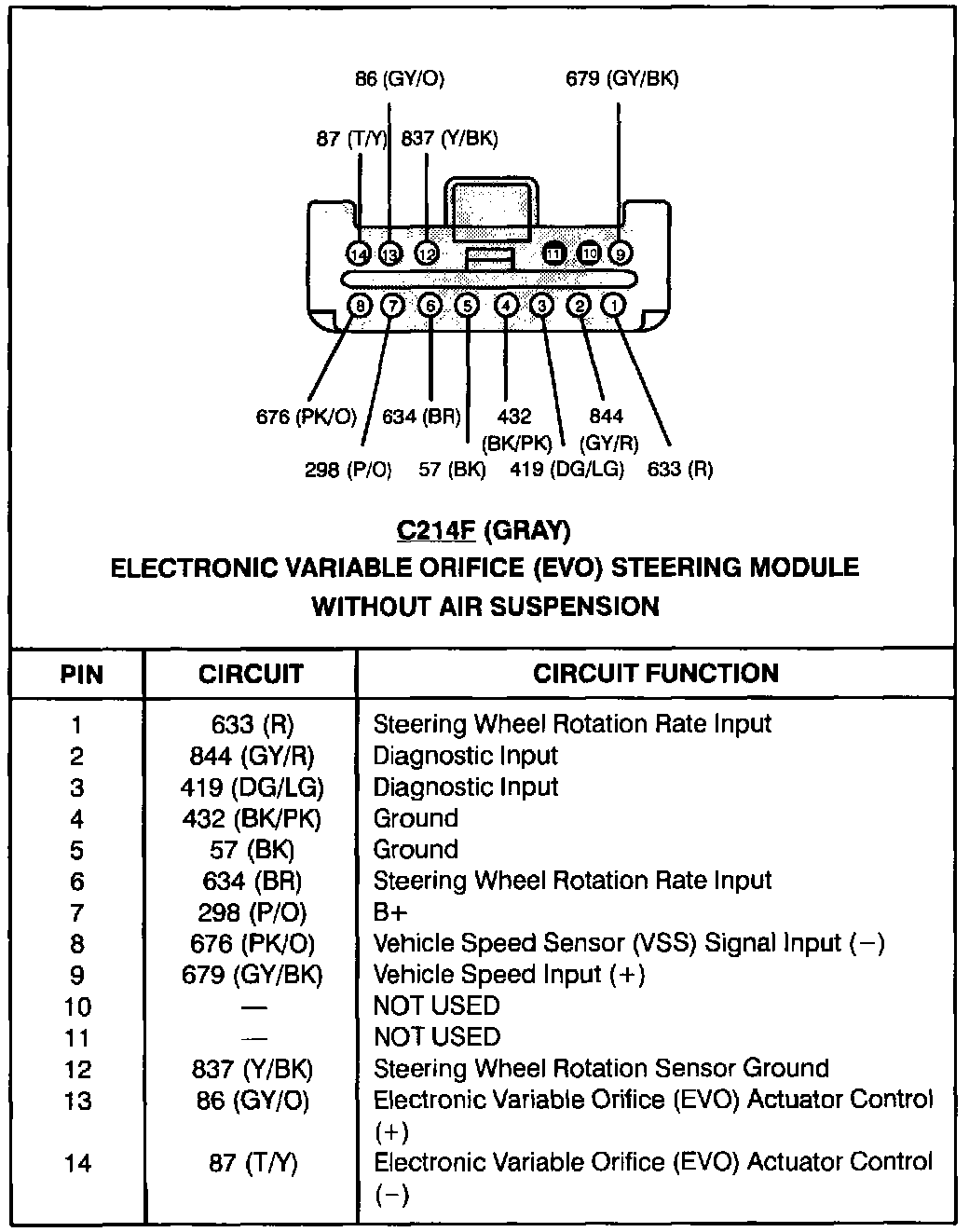

Electronic Variable Orifice Steering Module Without Air Suspension:
