Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Control Module >> Driver Door Module

Driver Door Module

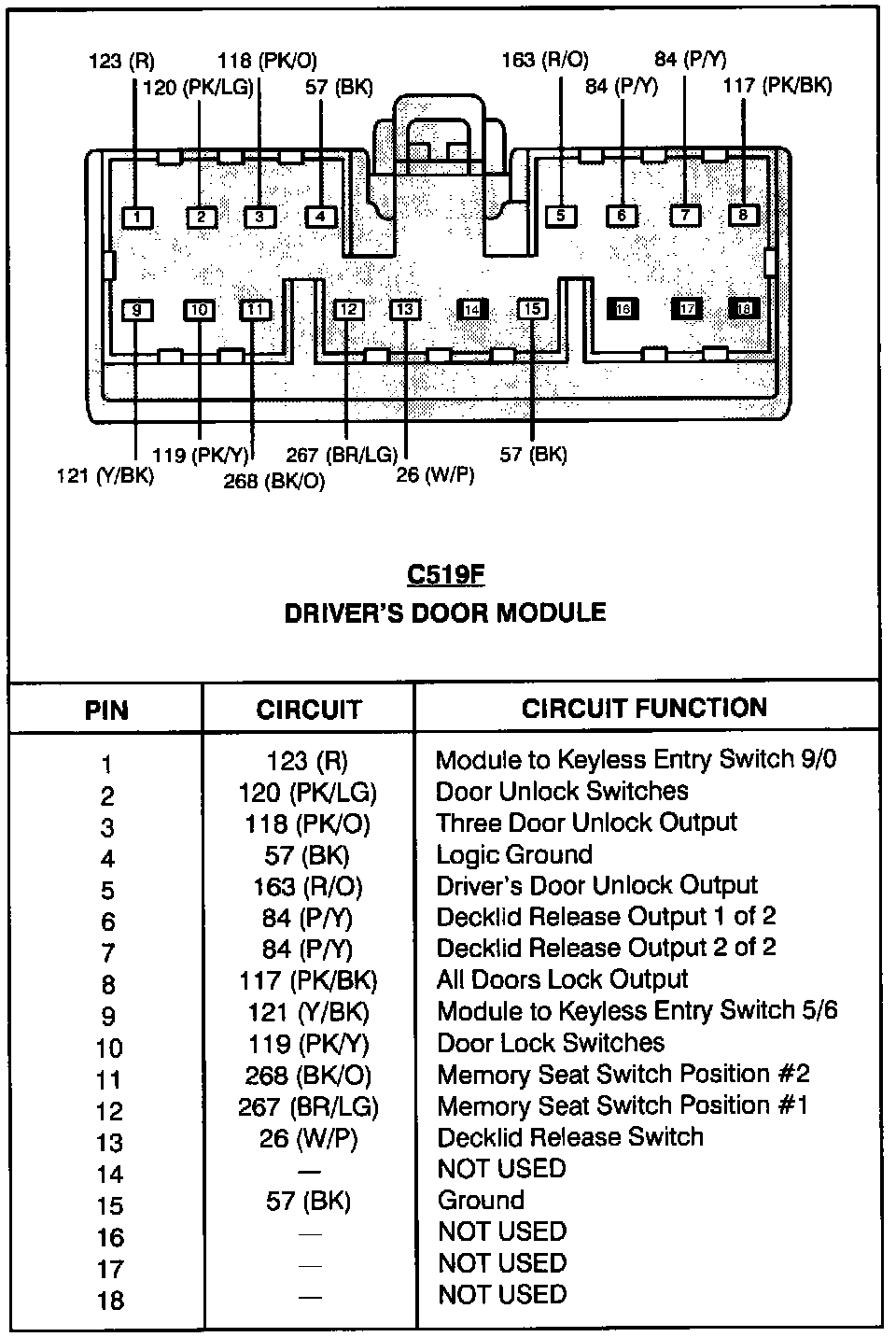

Driver's Door Module-C519:

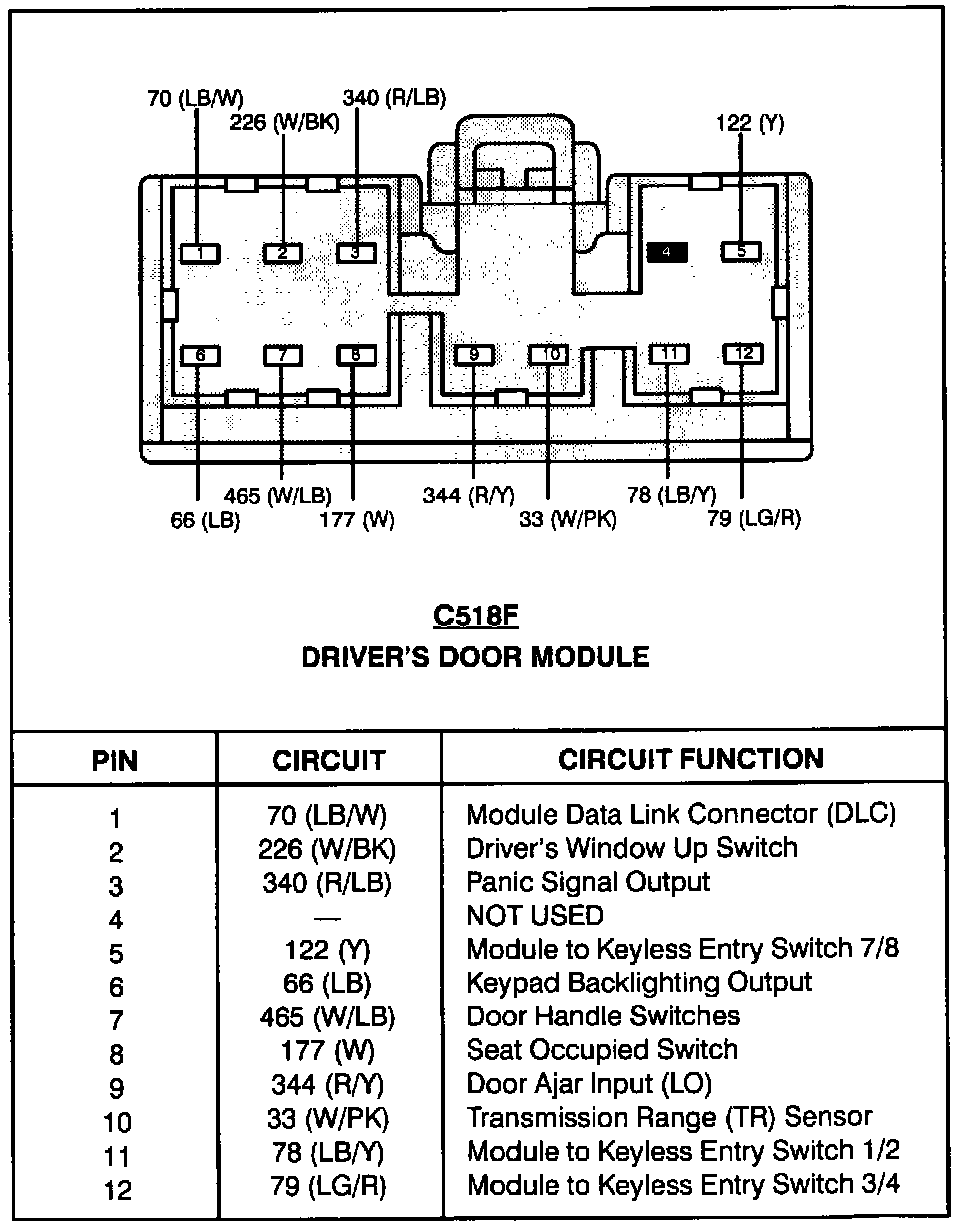

Driver's Door Module-C518:




Driver's Door Module-C520:
