Lamp Control Module

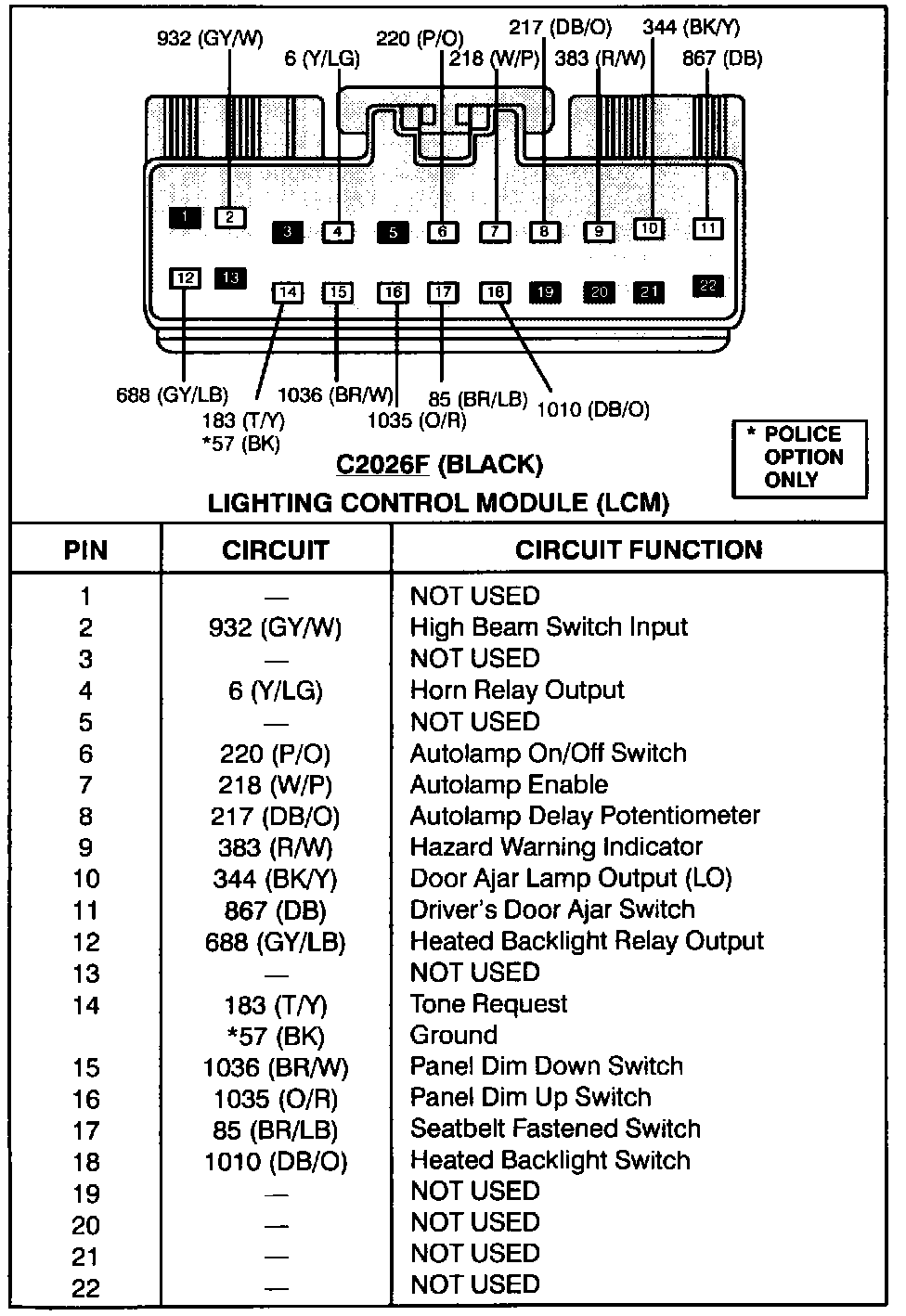

Lighting Control Module-C2026:

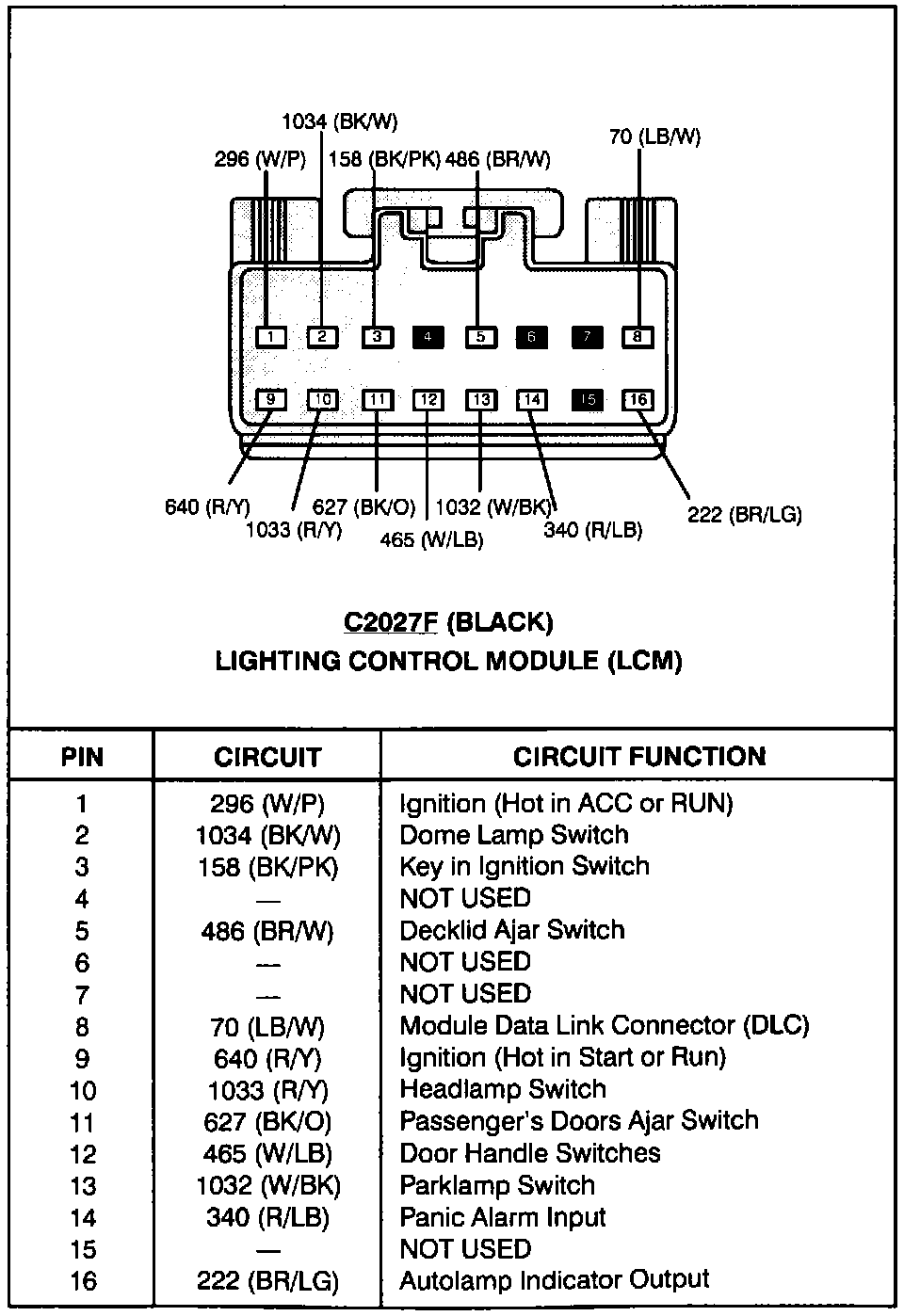

Lighting Control Module-C2027:

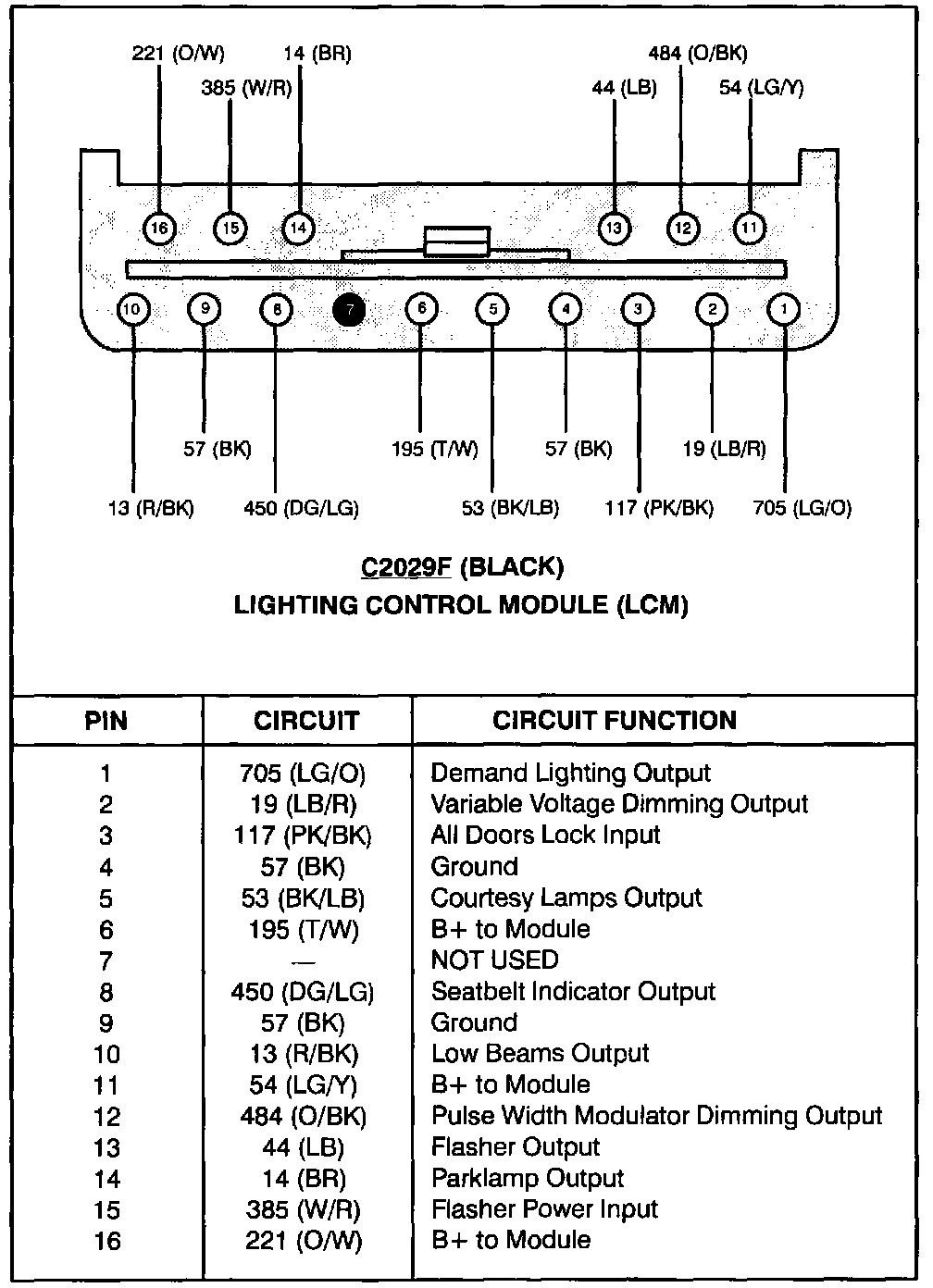

Lighting Control Module-C2029:




Lighting Control Module-C2028:
