Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Lighting Control Module Connector C-1

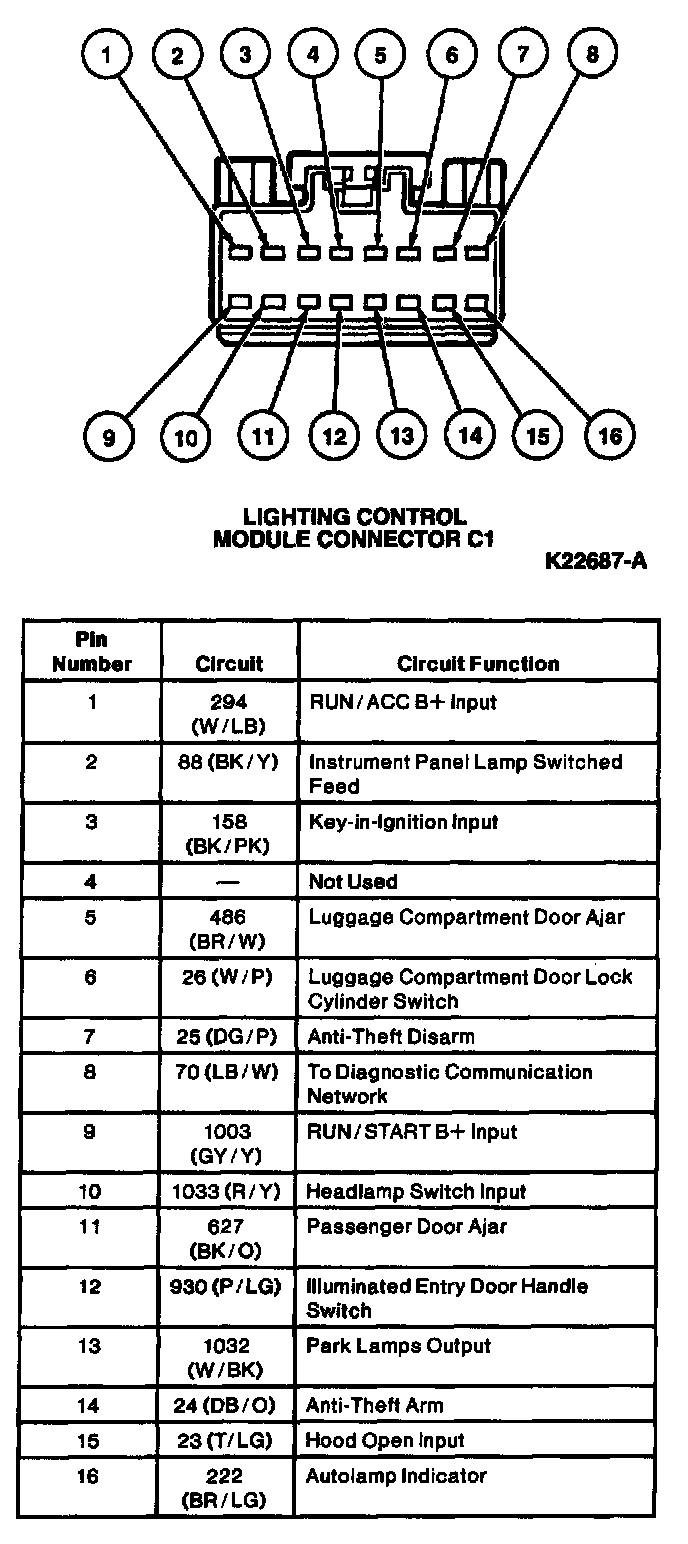

Lighting Control Module Connector C-1
