Home >> Ford >> 1996 >> Contour V6-153 2.5L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Connector Views >> Engine Compartment Fuse Box

Engine Compartment Fuse Box

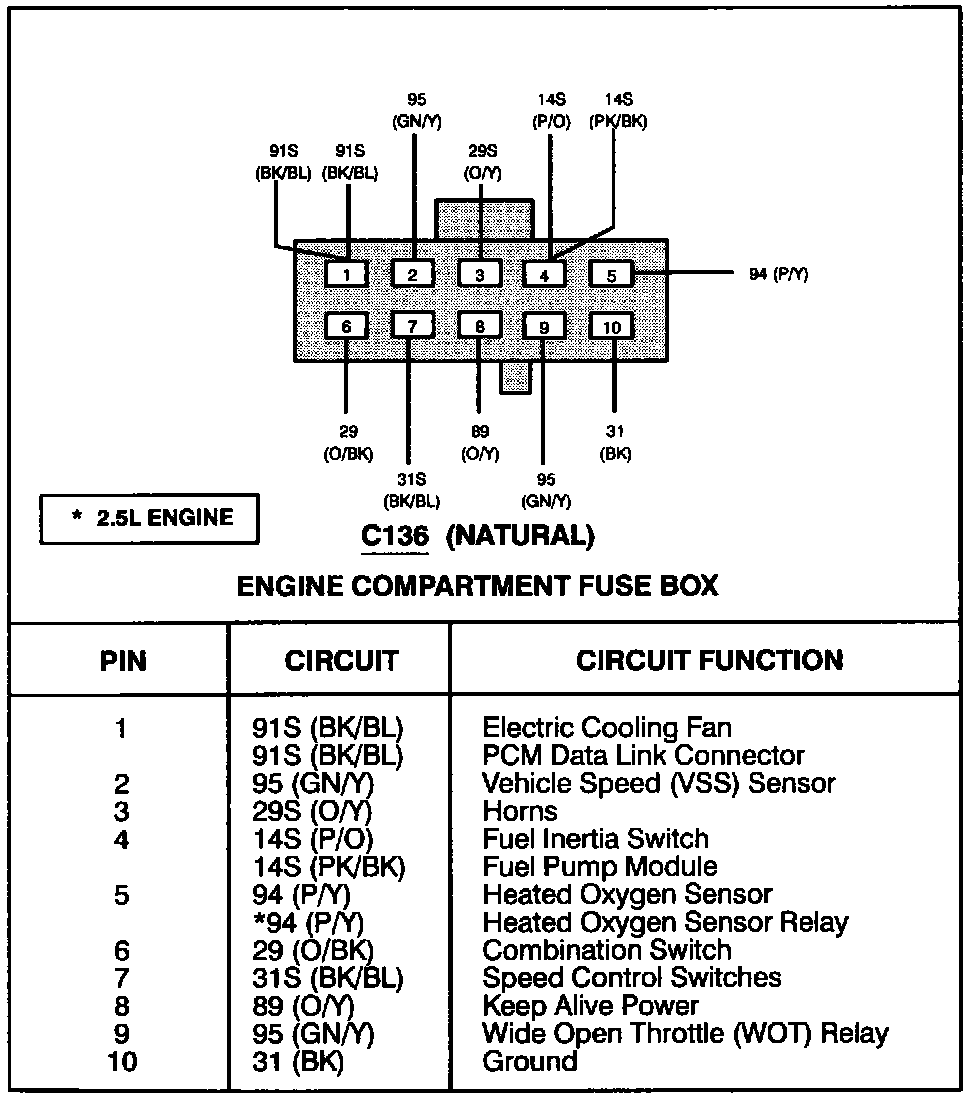

Engine Compartment Fuse Box (C136):

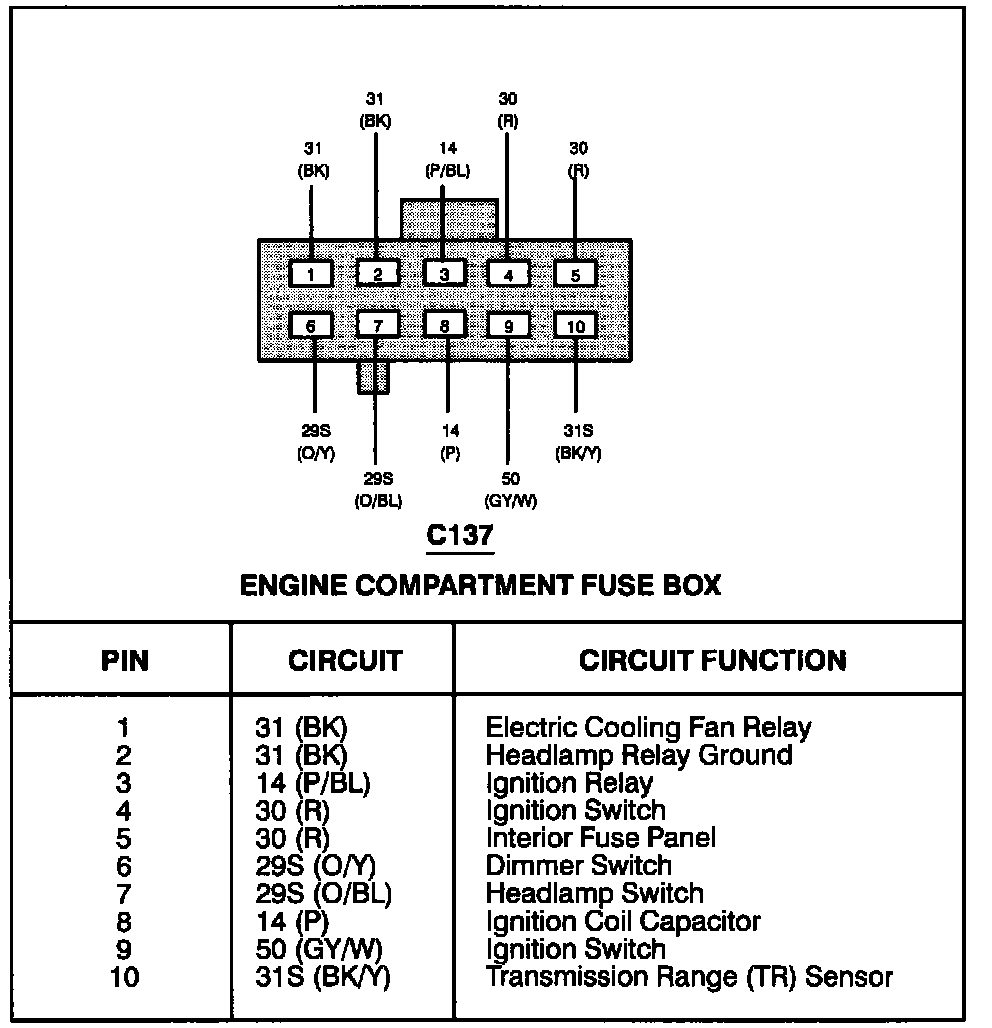

Engine Compartment Fuse Box (C137):
