Contour V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

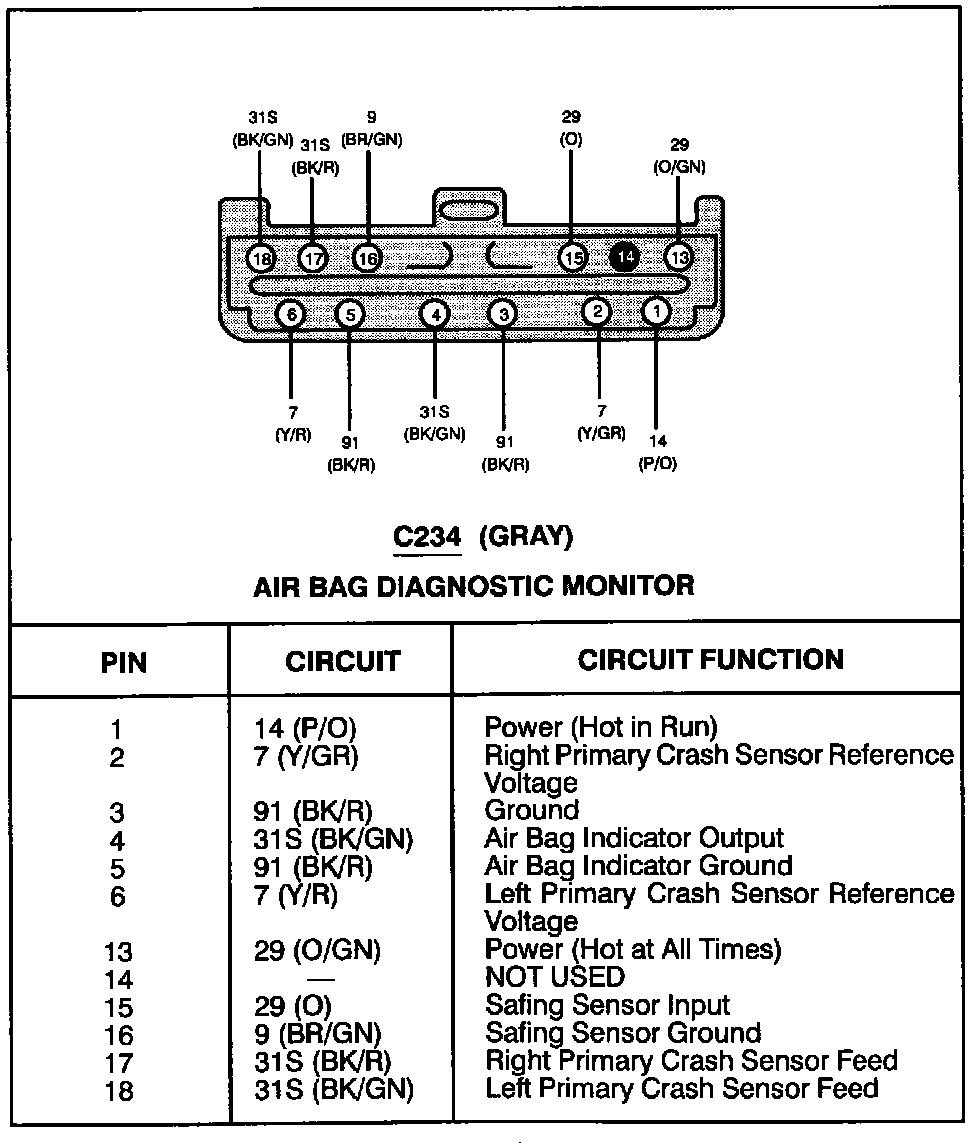

Air Bag Diagnostic Monitor (C234):

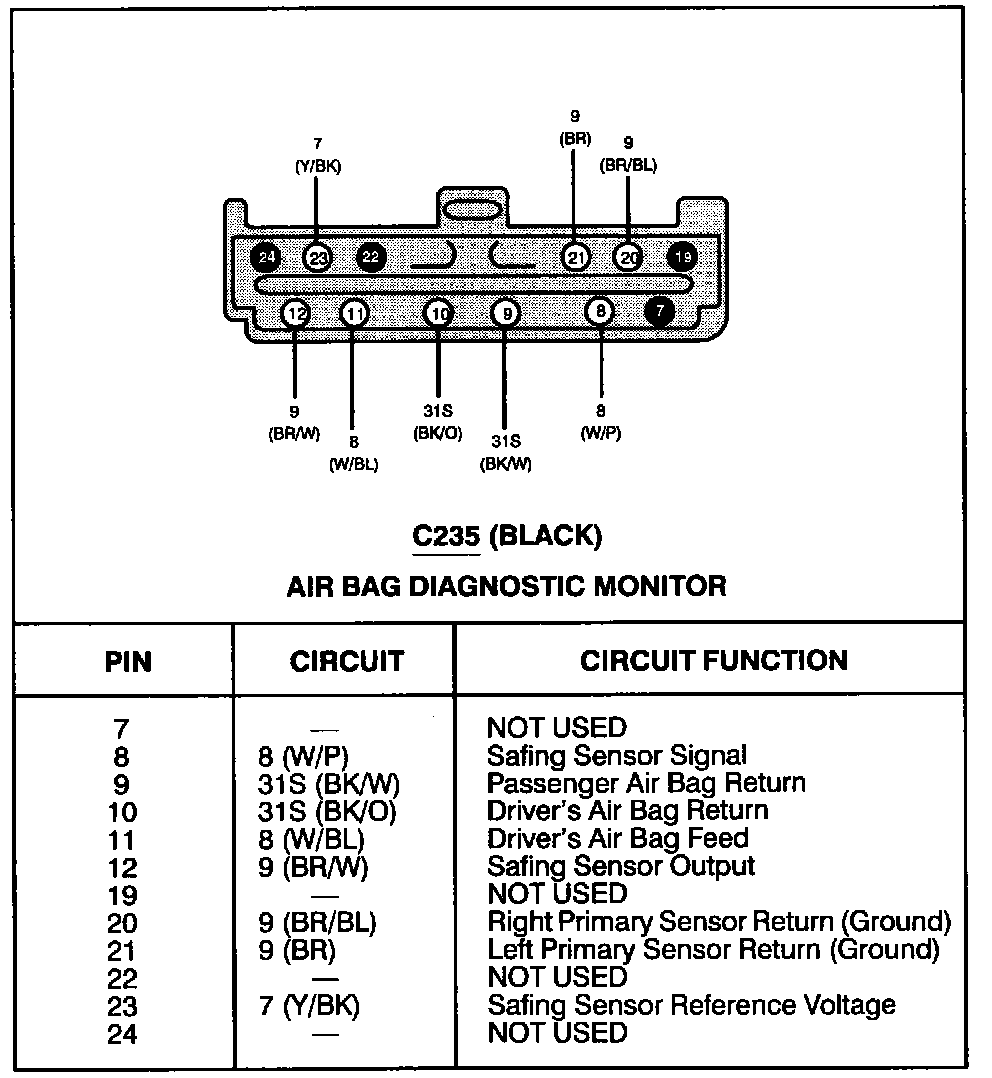

Air Bag Diagnostic Monitor (C235):
