Main Relay (Computer/Fuel System): Locations

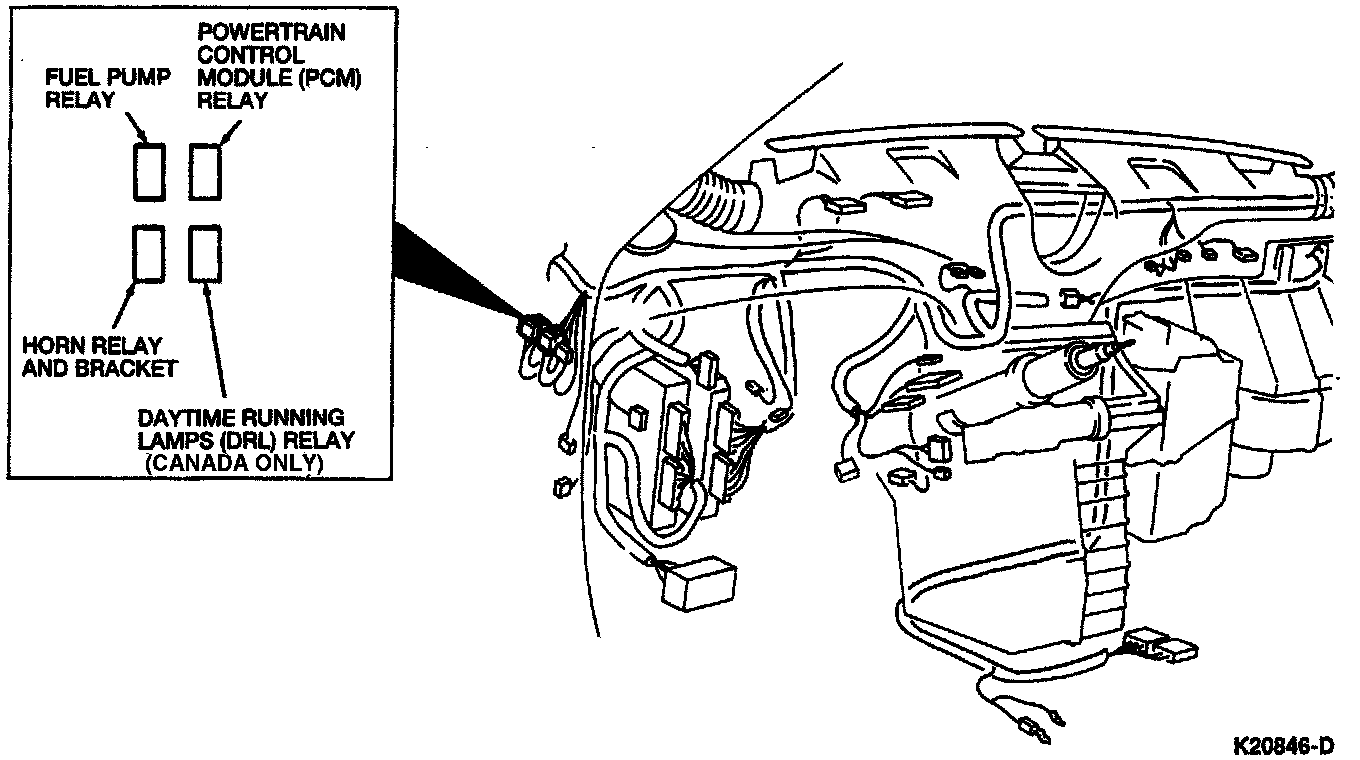

Relay Locations:





The main relay for the powertrain control module is located under the left side of the instrument panel.
