Home >> Ford >> 1996 >> Aspire L4-81 1.3L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

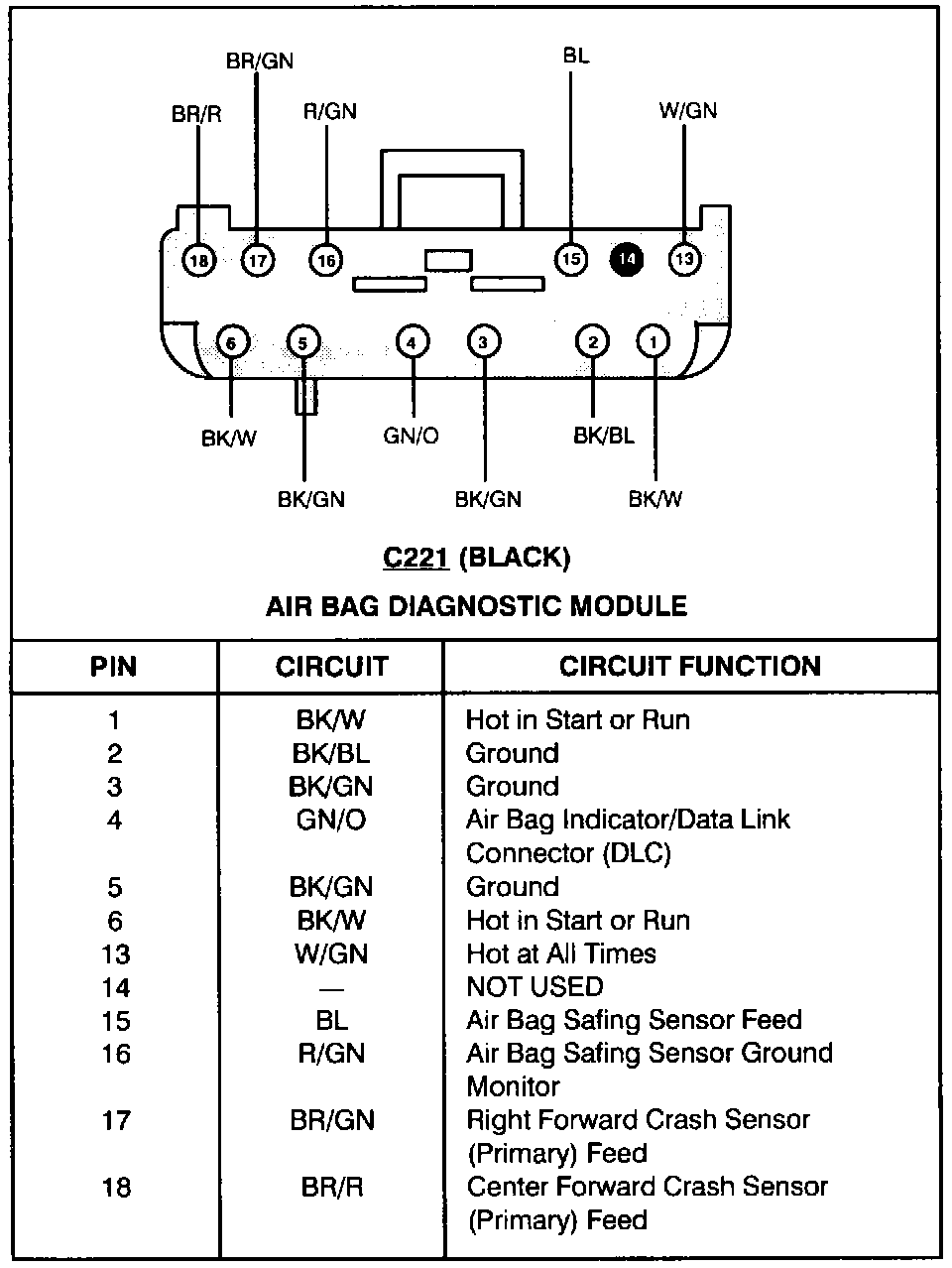

Air Bag Diagnostic Module (C221):

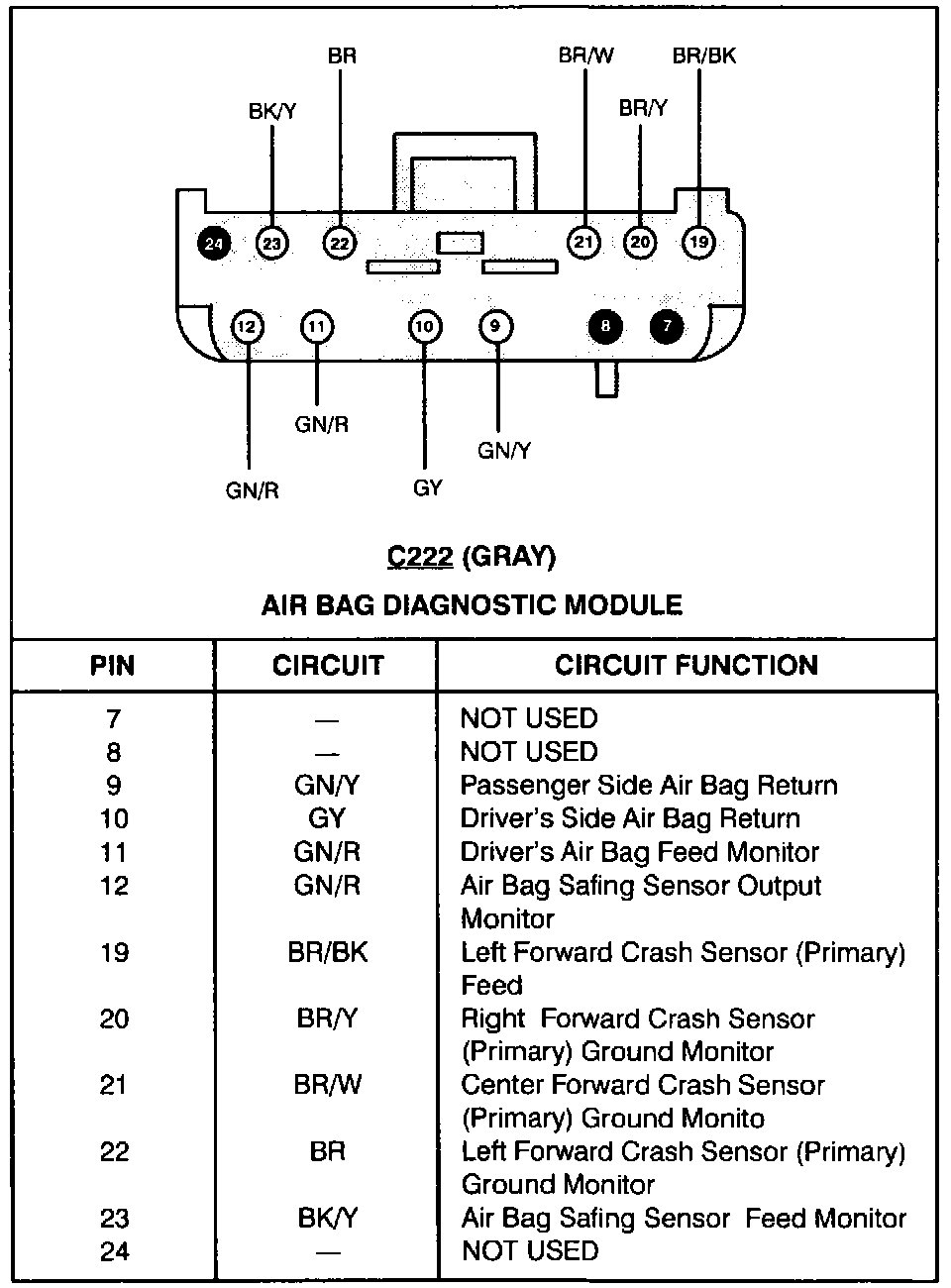

Air Bag Diagnostic Module (C222):
