Panel Illumination Control Module: Locations

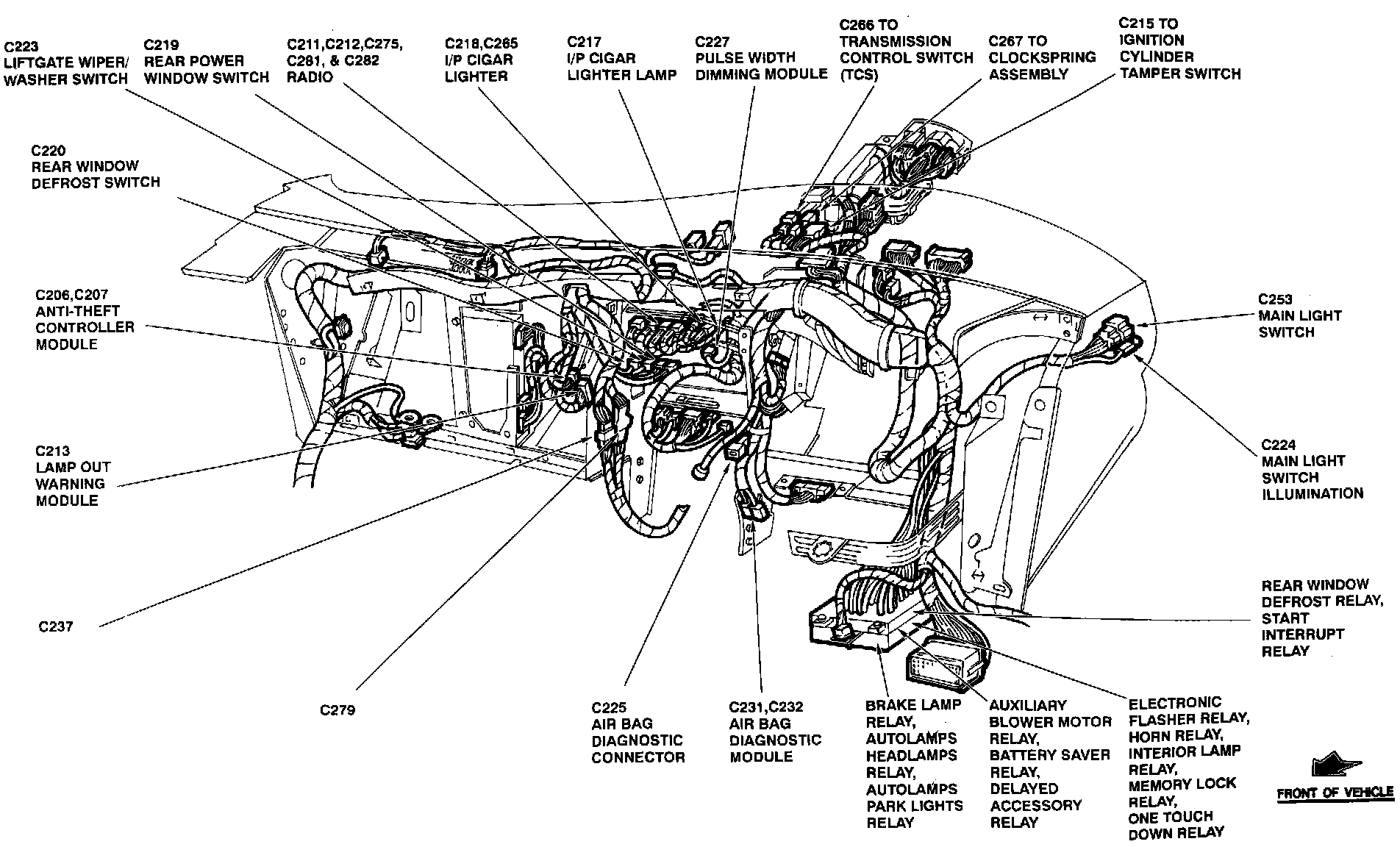

Behind Instrument Panel View:





The Pulse Width Dimming Module is located behind center of instrument panel.
