Home >> Ford >> 1995 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Connector Views >> Constant Control Relay Module Connector >> 3.8 SC Engine >> 2 of 2

2 of 2

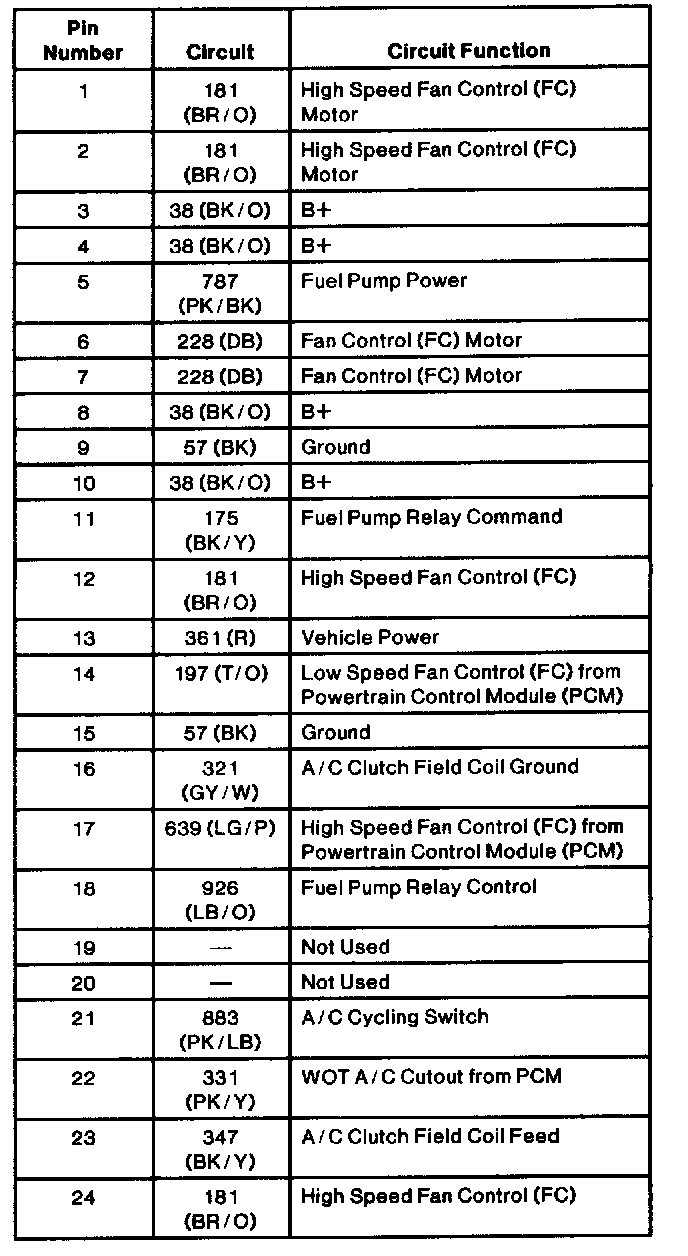

Constant Control Relay Module Connector (Super Coupe):
