Home >> Ford >> 1995 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> With Programmable Ride Control

With Programmable Ride Control

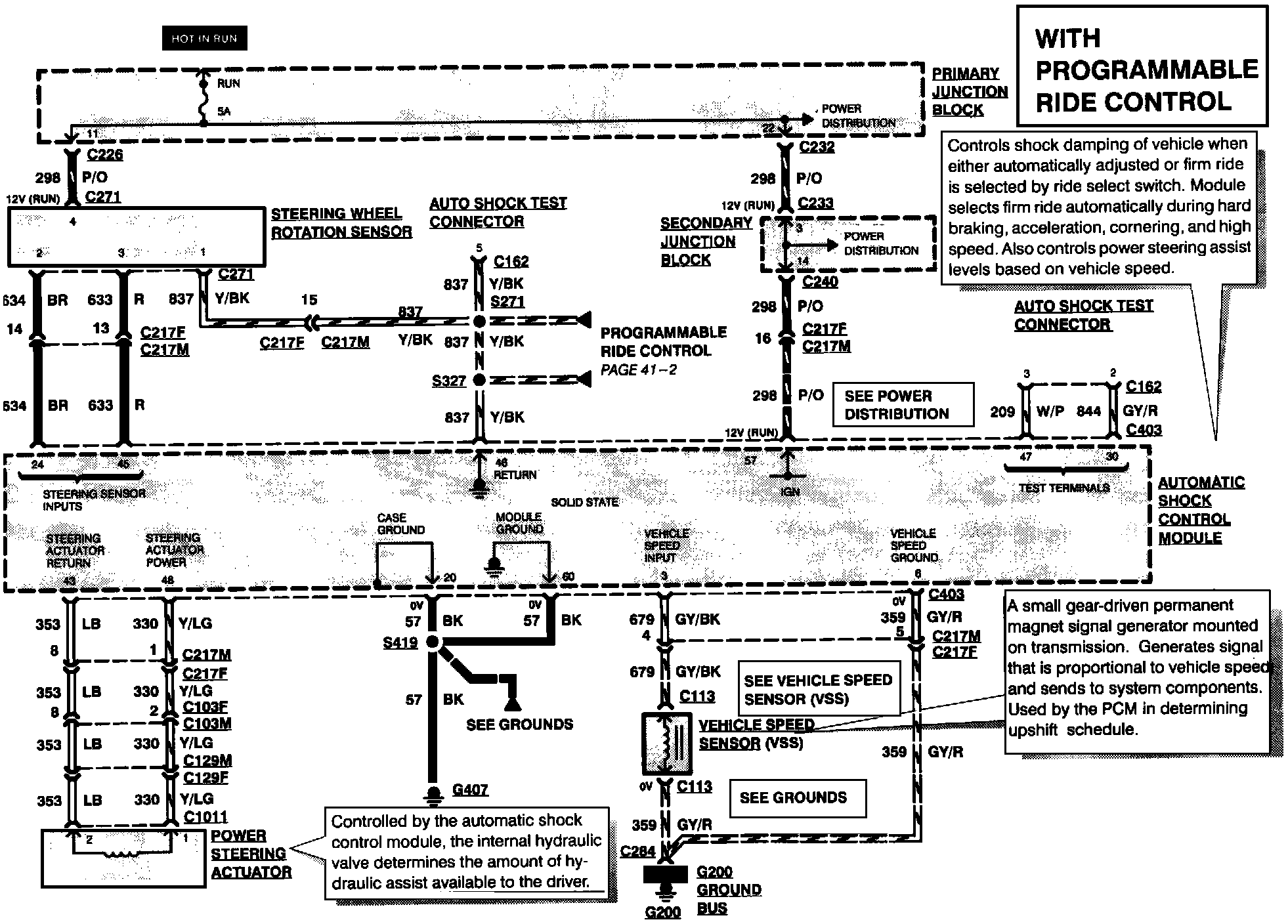

Electronic Variable Orifice Power Steering System (With Programmable Ride Control):
