LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1995
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C209
C209

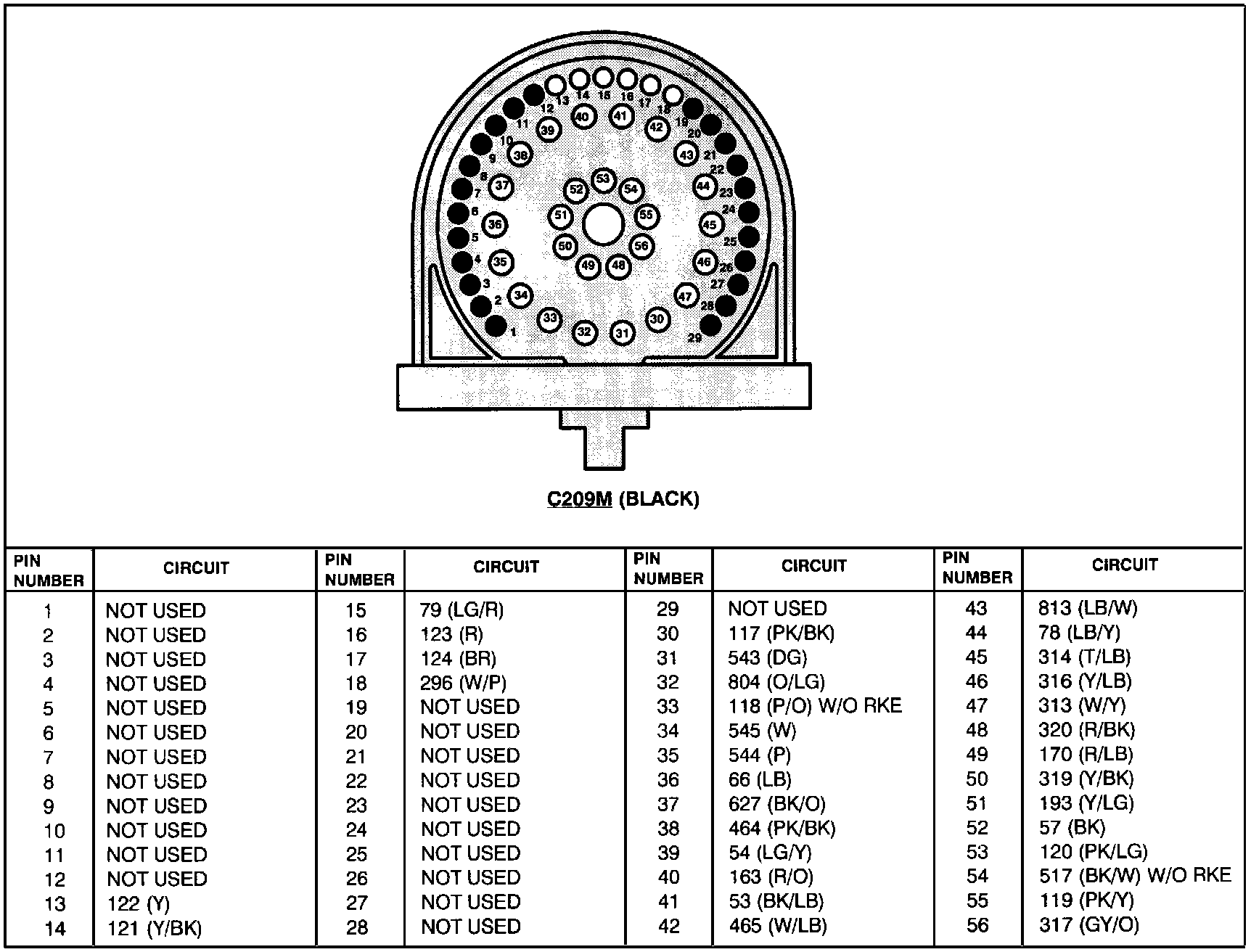

In Line Connector Faces - C209M:

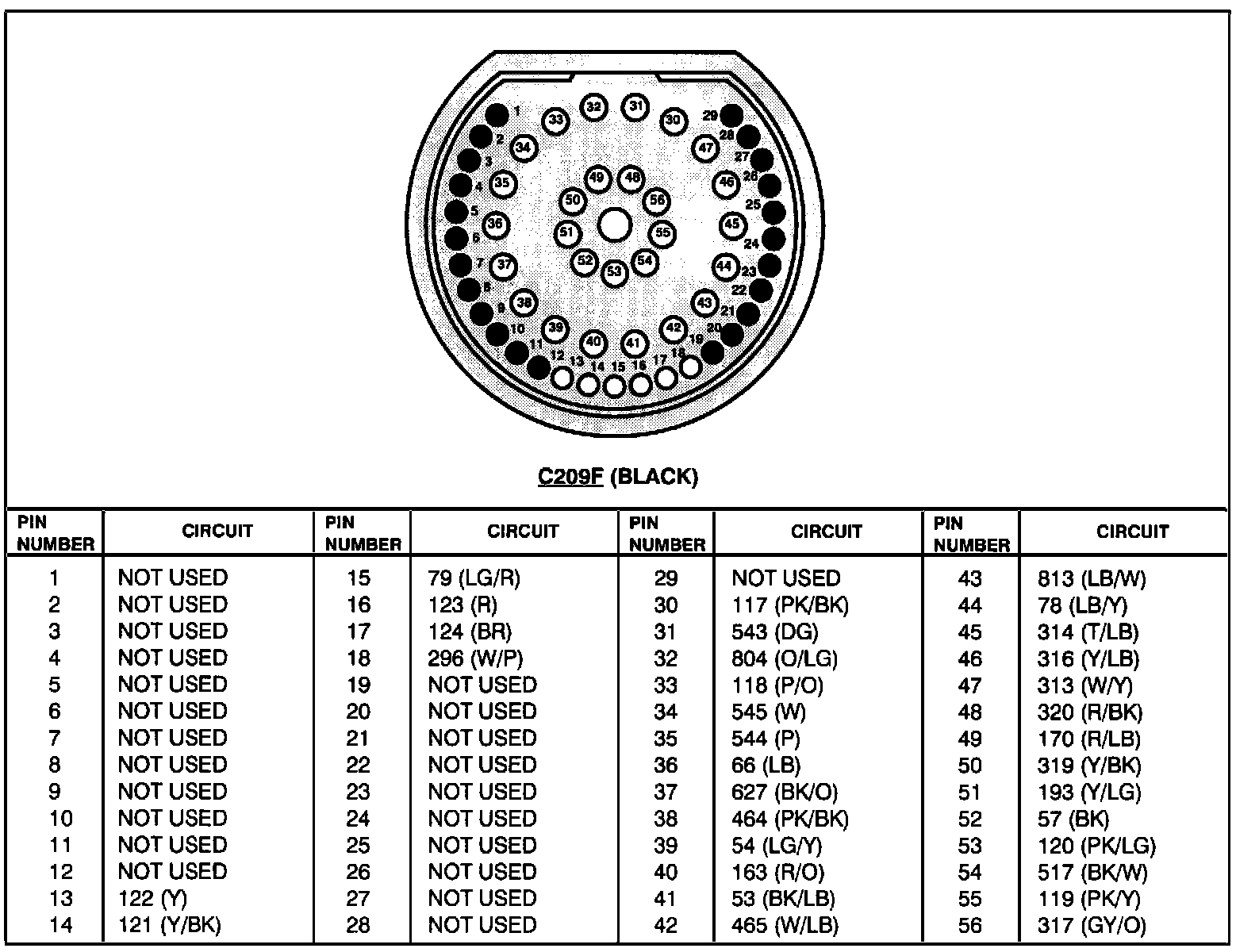

In Line Connector Faces - C209F:
