Home >> Ford >> 1995 >> Ranger 2WD V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

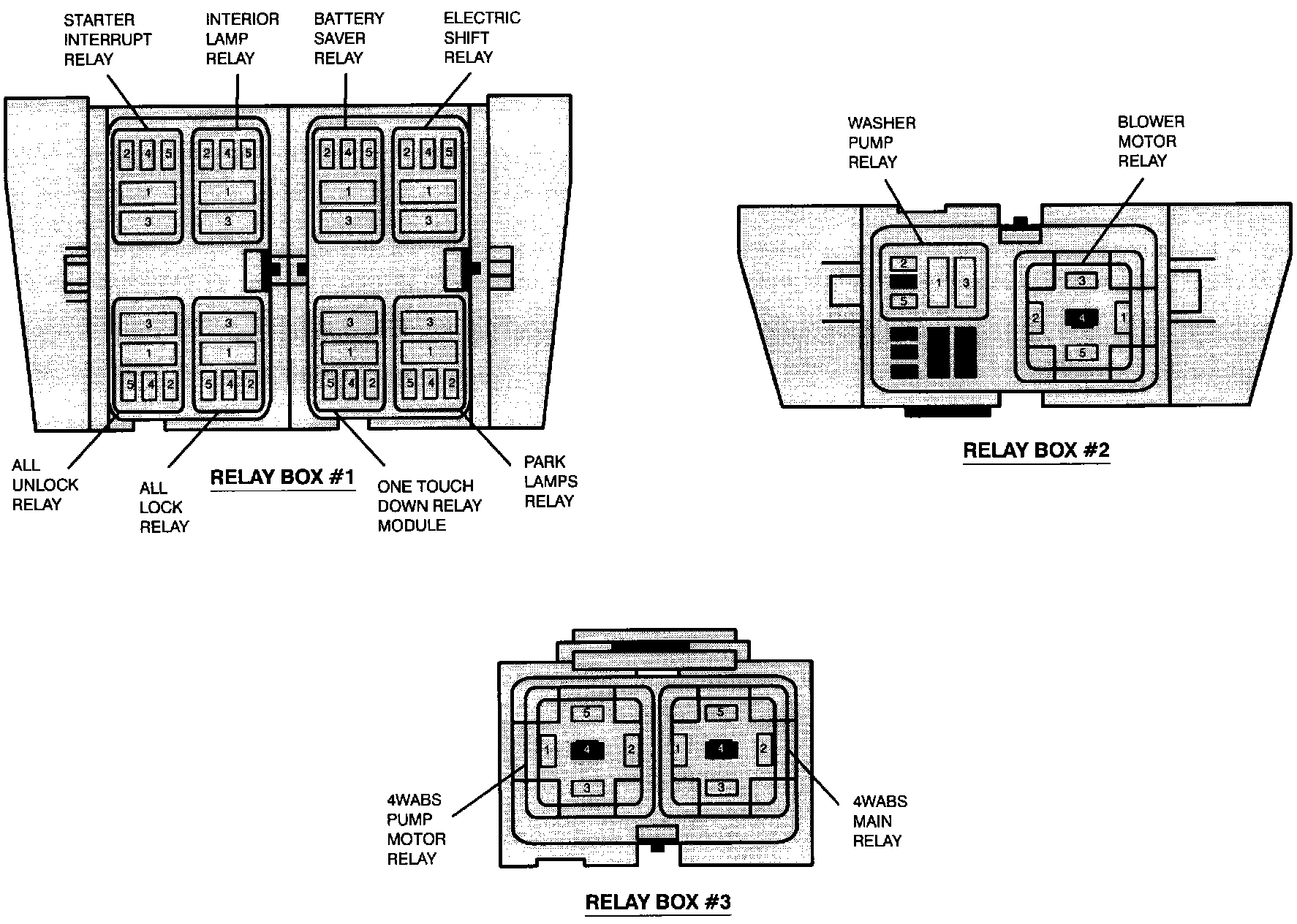

Relay Box

Relay Box:
