Ranger 2WD V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

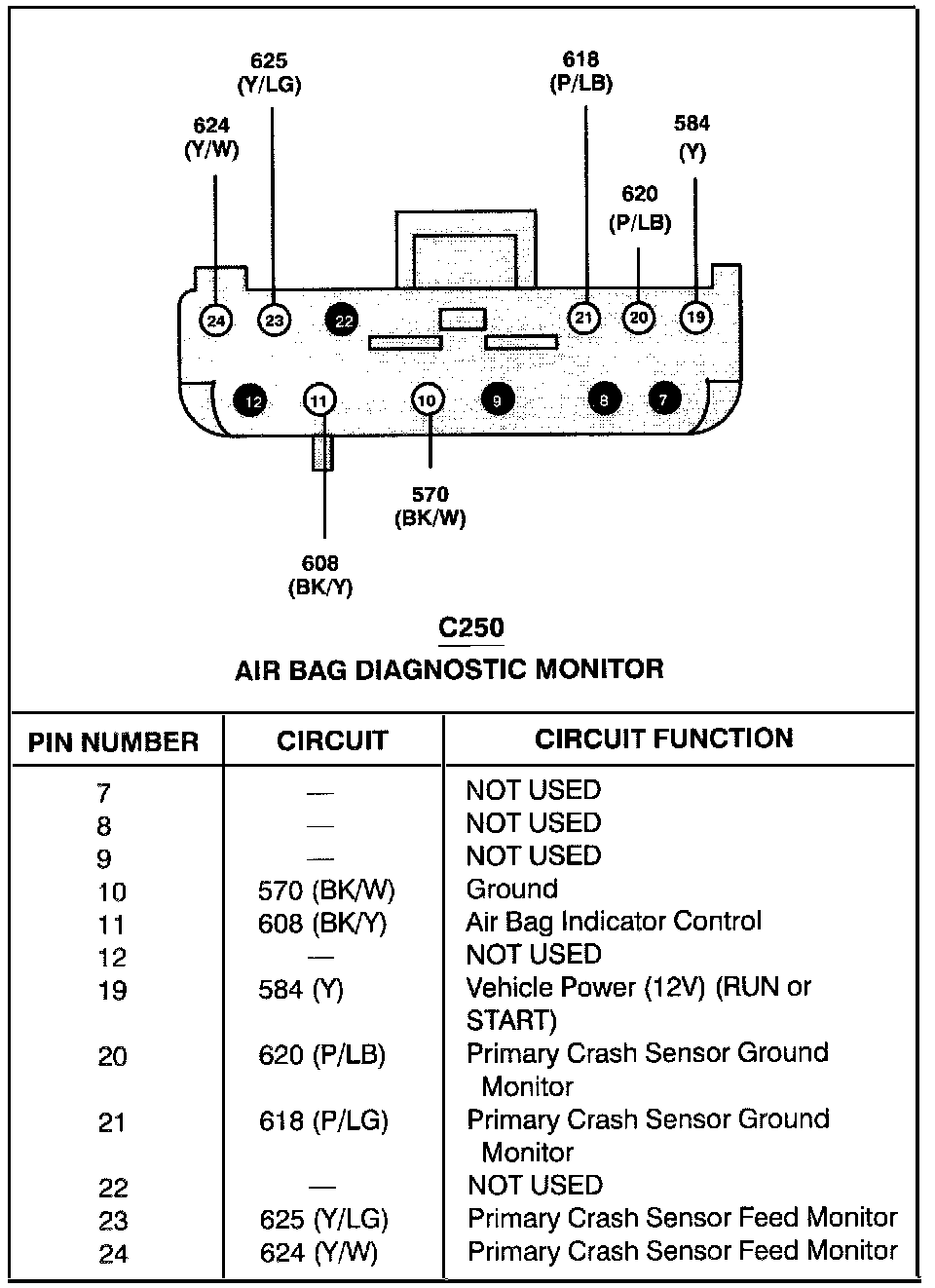

Air Bag Diagnostic Monitor (C250):

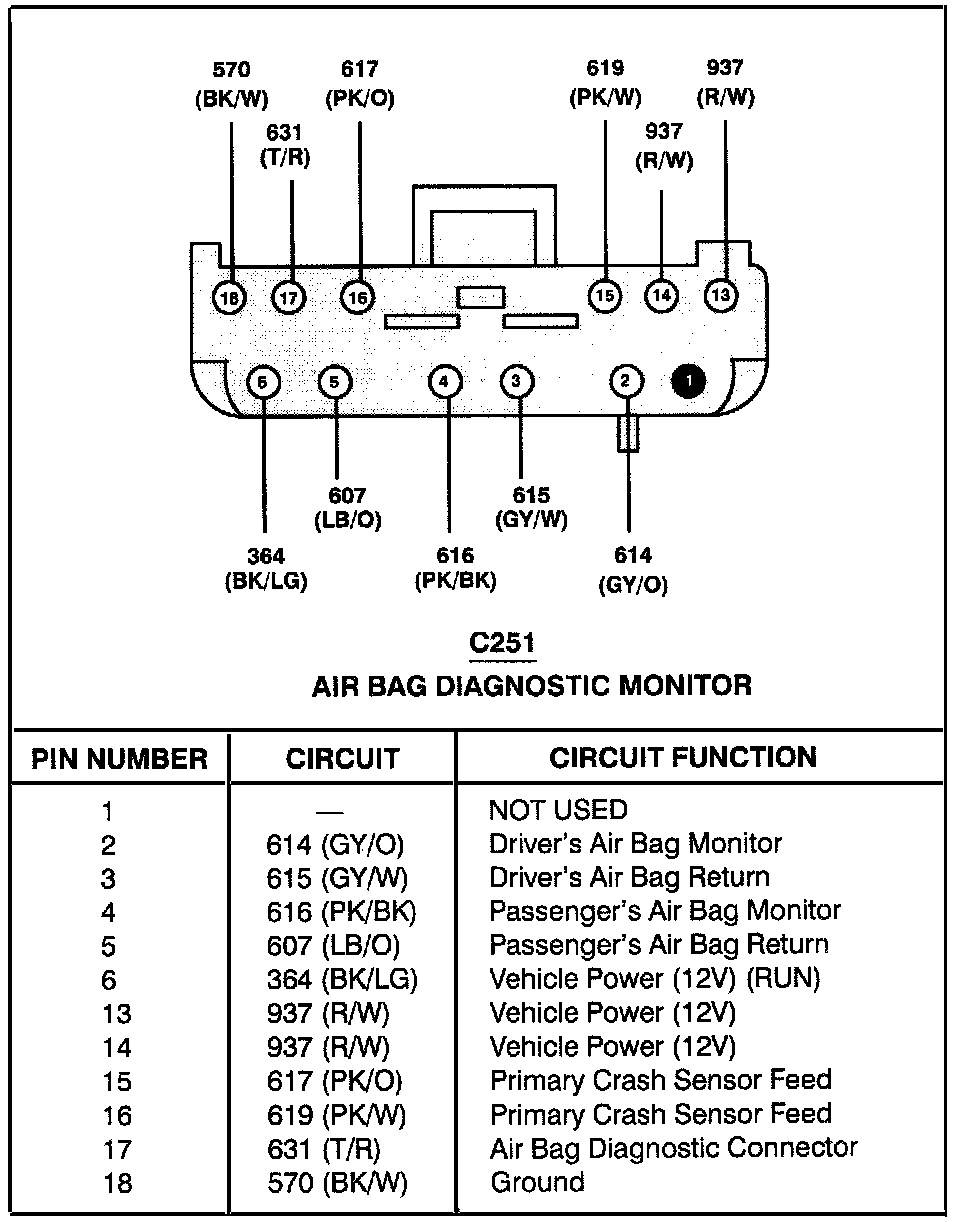

Air Bag Diagnostic Monitor (C251):
