Ignition Switch: Testing and Inspection

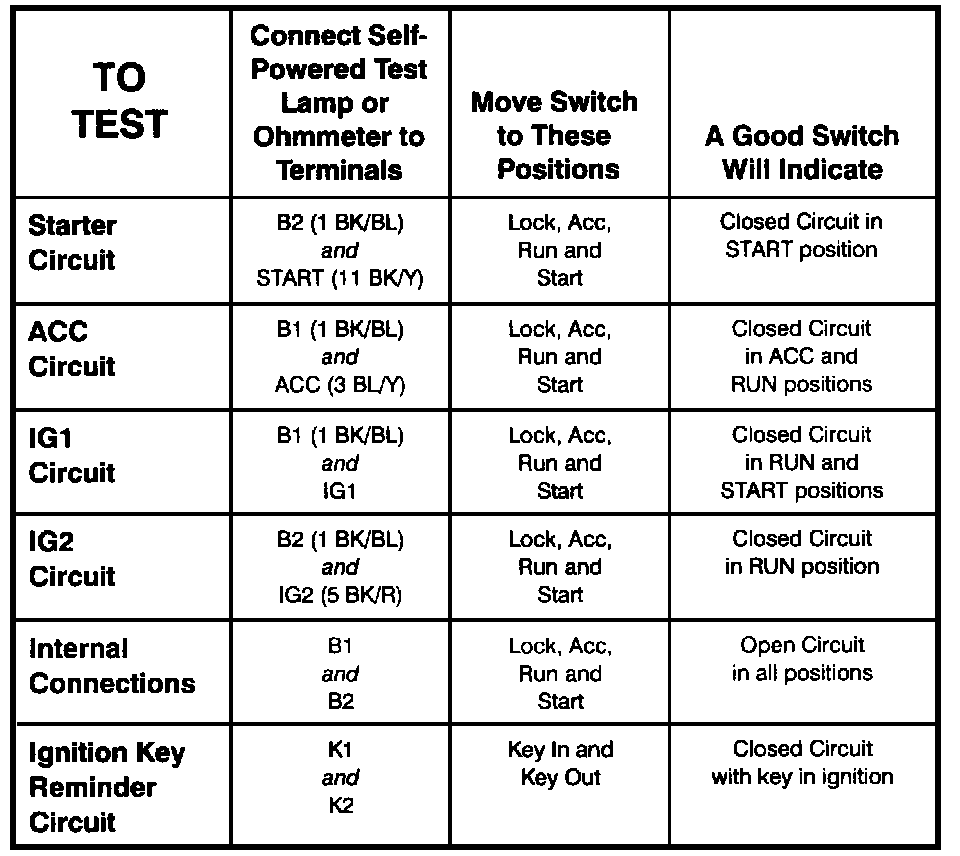

Ignition Switch - Component Testing Procedure:




Ignition Switch - Terminal Locations:

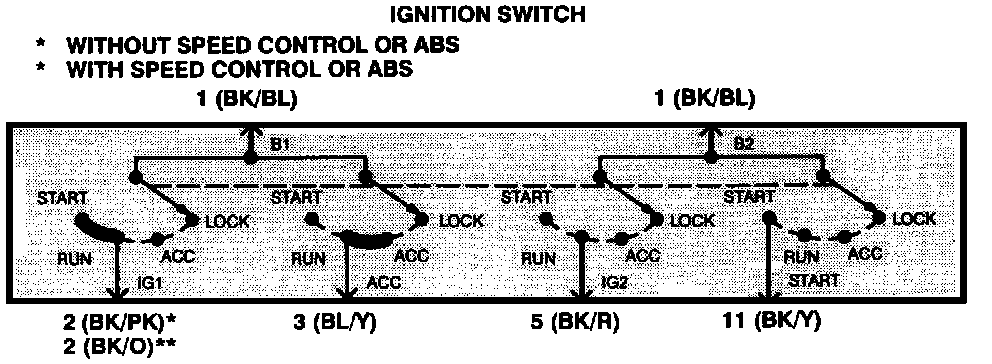

Ignition Switch - Schematic:
