Home >> Ford >> 1995 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Diagrams

Distributor: Diagrams

Distributor (C170):

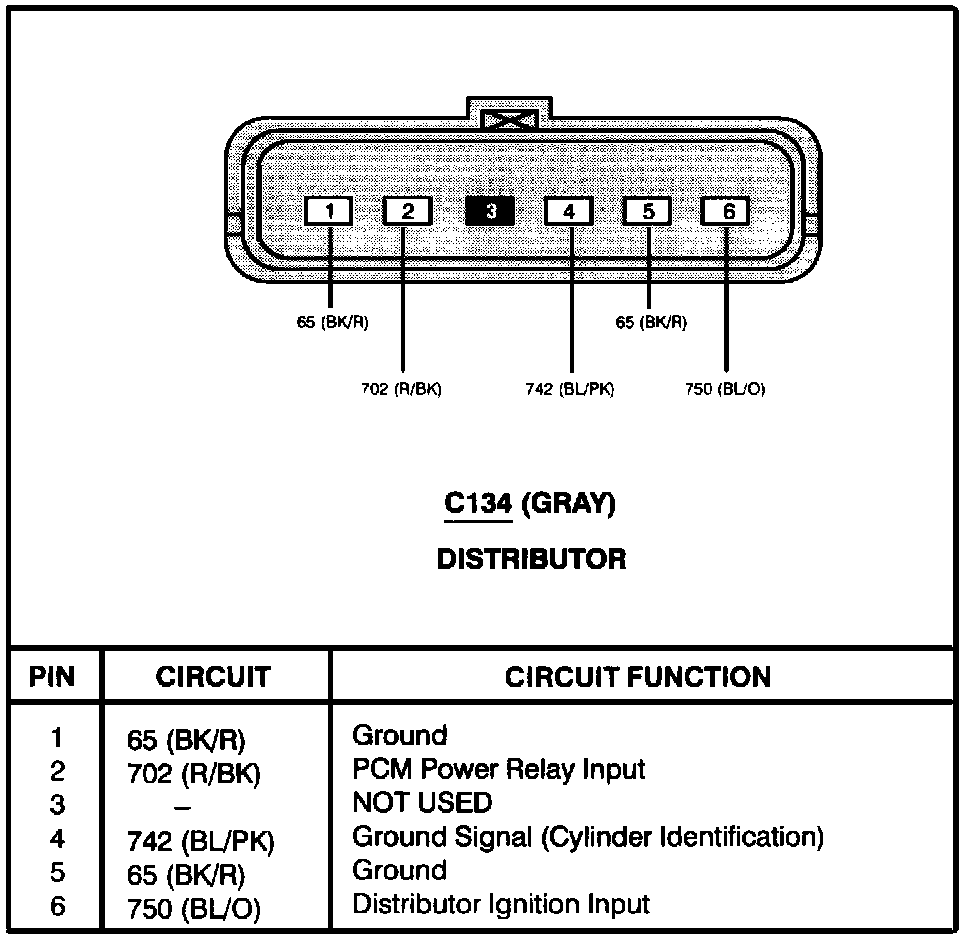

Distributor (C134):
