Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Control Switch
Master Window Control Switch

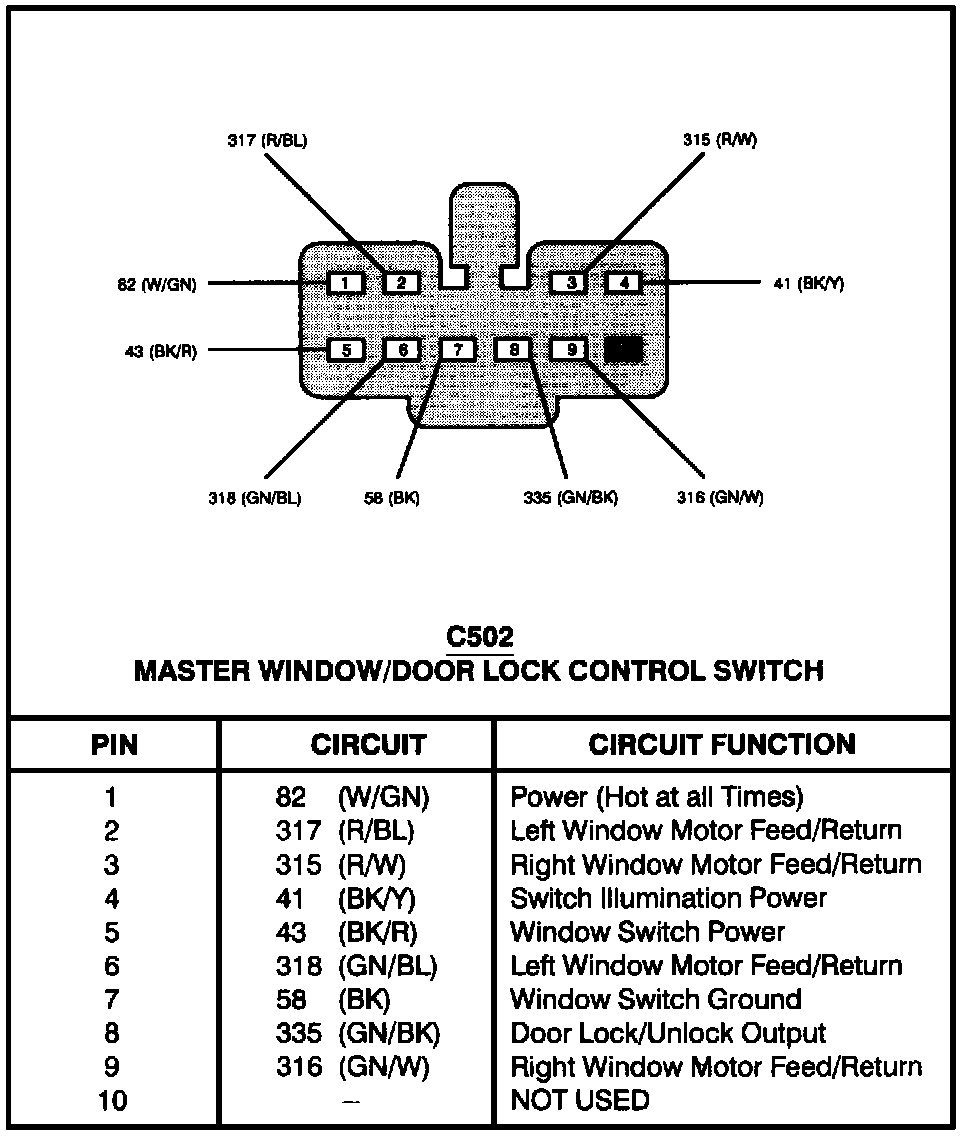

Master Window/Door Lock Control Switch:
