Home >> Ford >> 1995 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

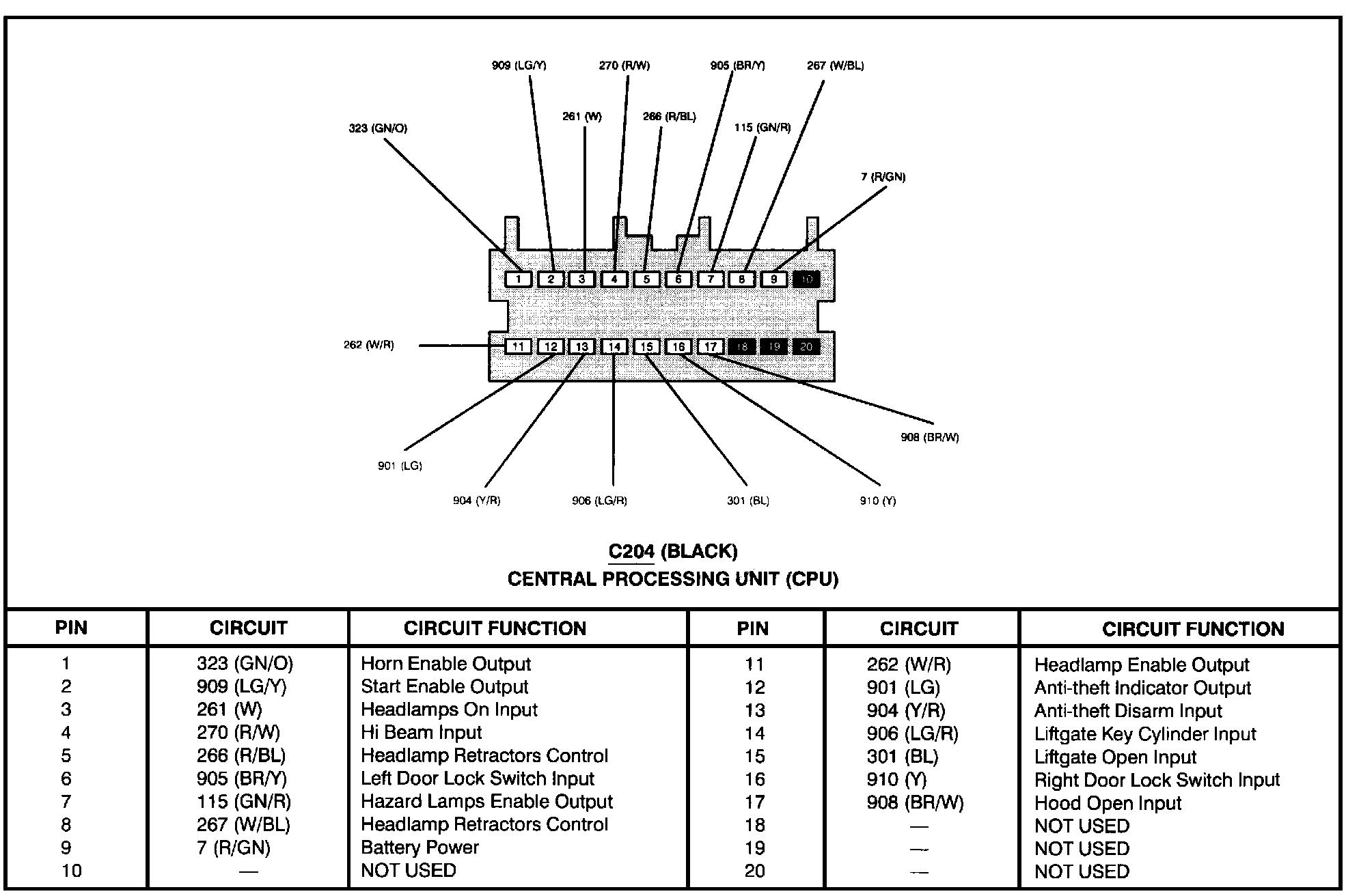

Alarm Module, (Vehicle Antitheft)

Central Processing Unit:
