Integrated Control Relay Module

Constant Control Relay Module:

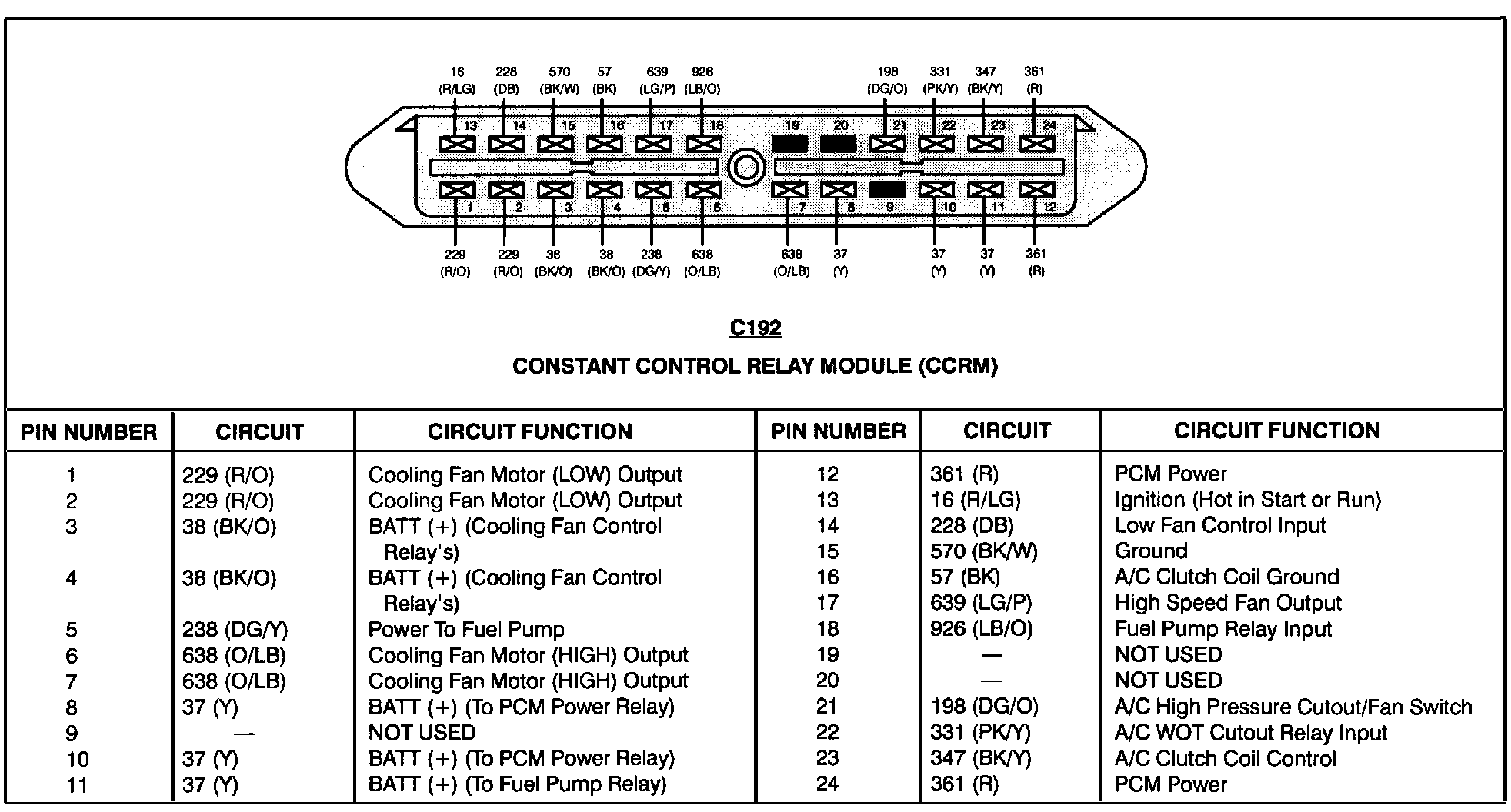

Constant Control Relay Module (CCRM):
