Power Window Switch
>>
Right Front Window Control Switch
Right Front Window Control Switch

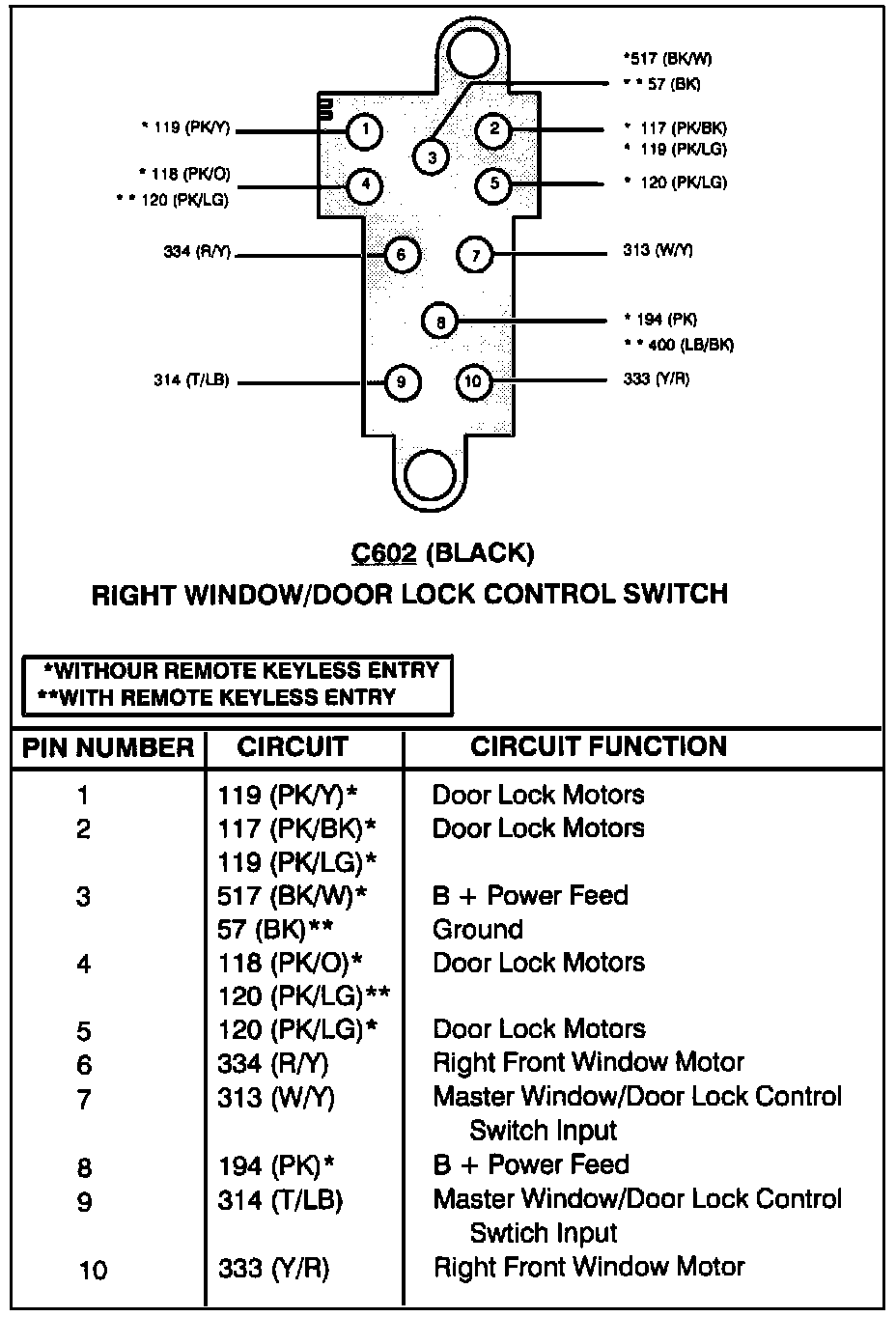

Right Window/Door Lock Control Switch:
