Power Window Switch
>>
Master Window Control Switch
>>
Coupe
Coupe

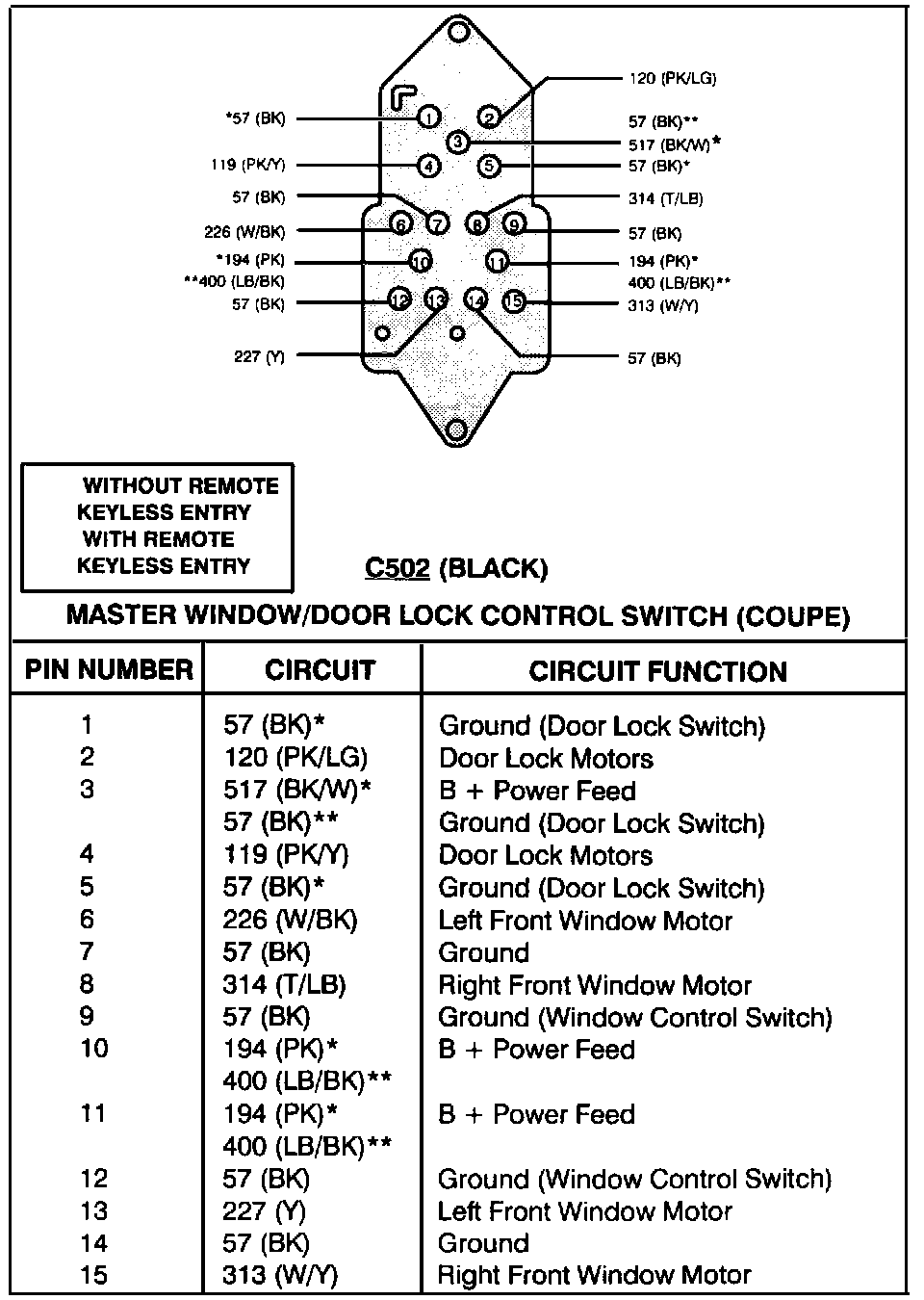

Master Window/Door Lock Control Switch (Coupe):
