Relay Module





Ford provides conflicting information for the location of some relays. The wiring diagrams give locations that do not match the 1995 relay module application ID image, but do match the 1996 relay module application ID image. Both images are provided for reference.

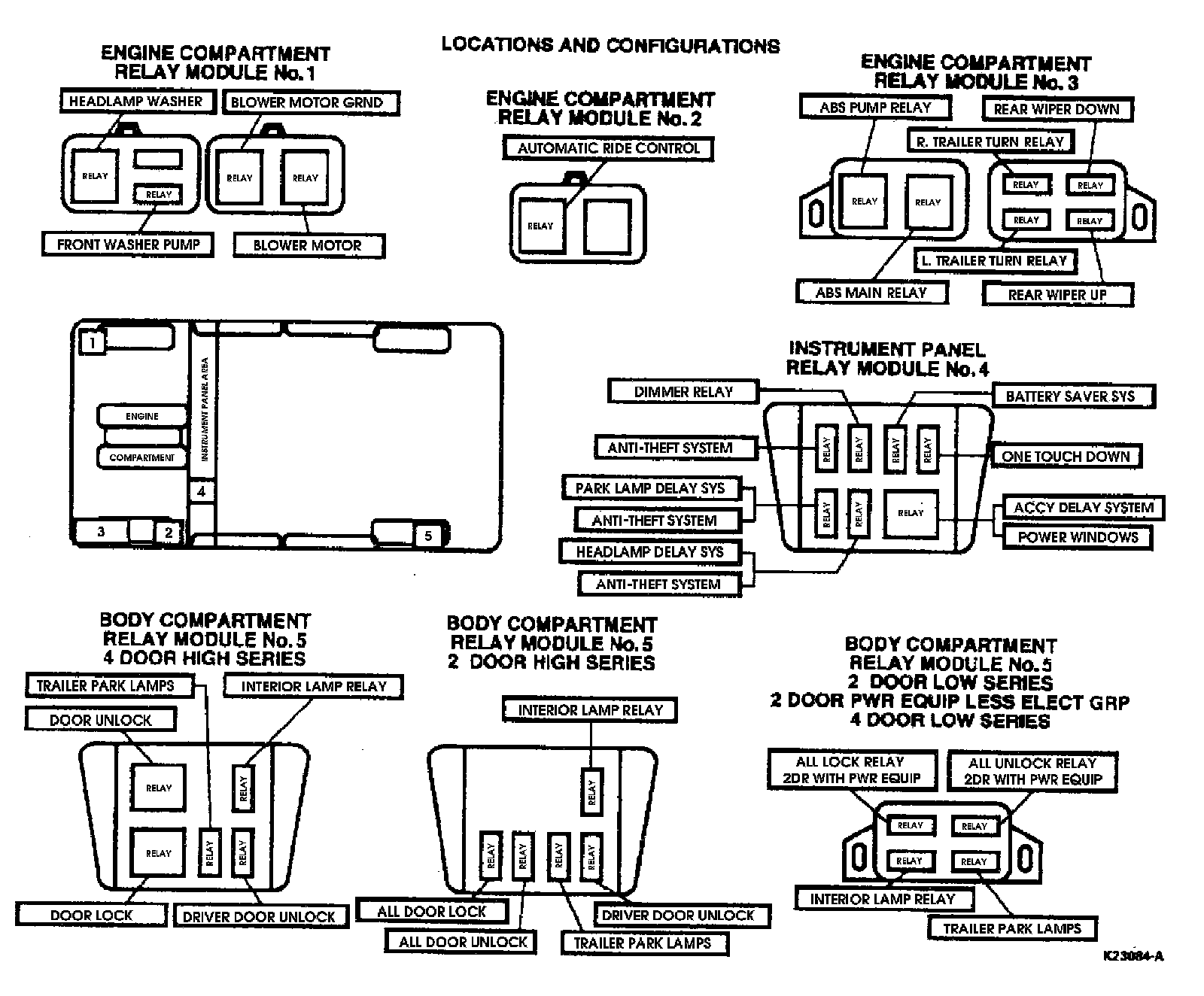

1995 Relay Modules Application ID:

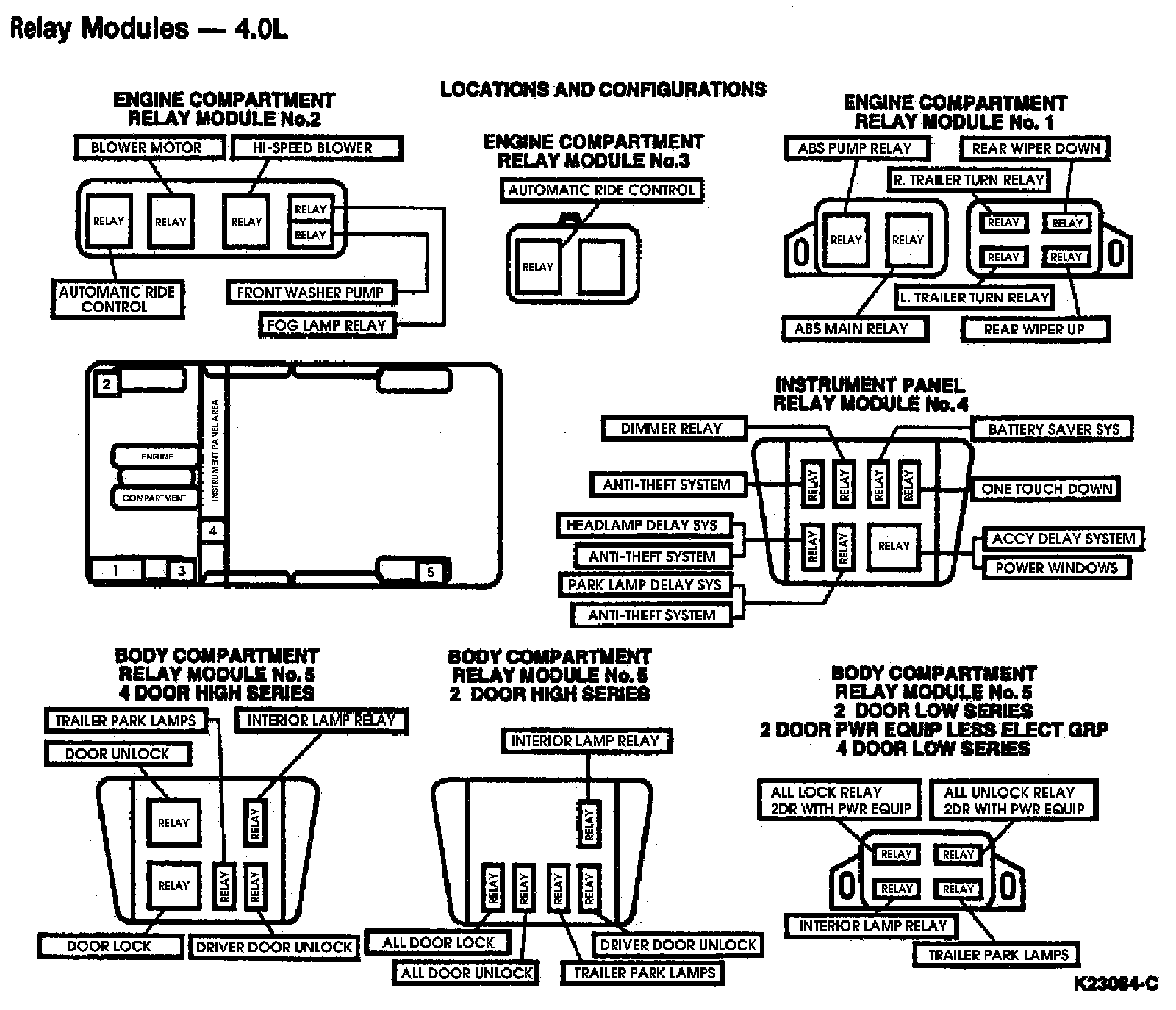

1996 Relay Modules Application ID:
