Engine Control Module
Engine Control Module

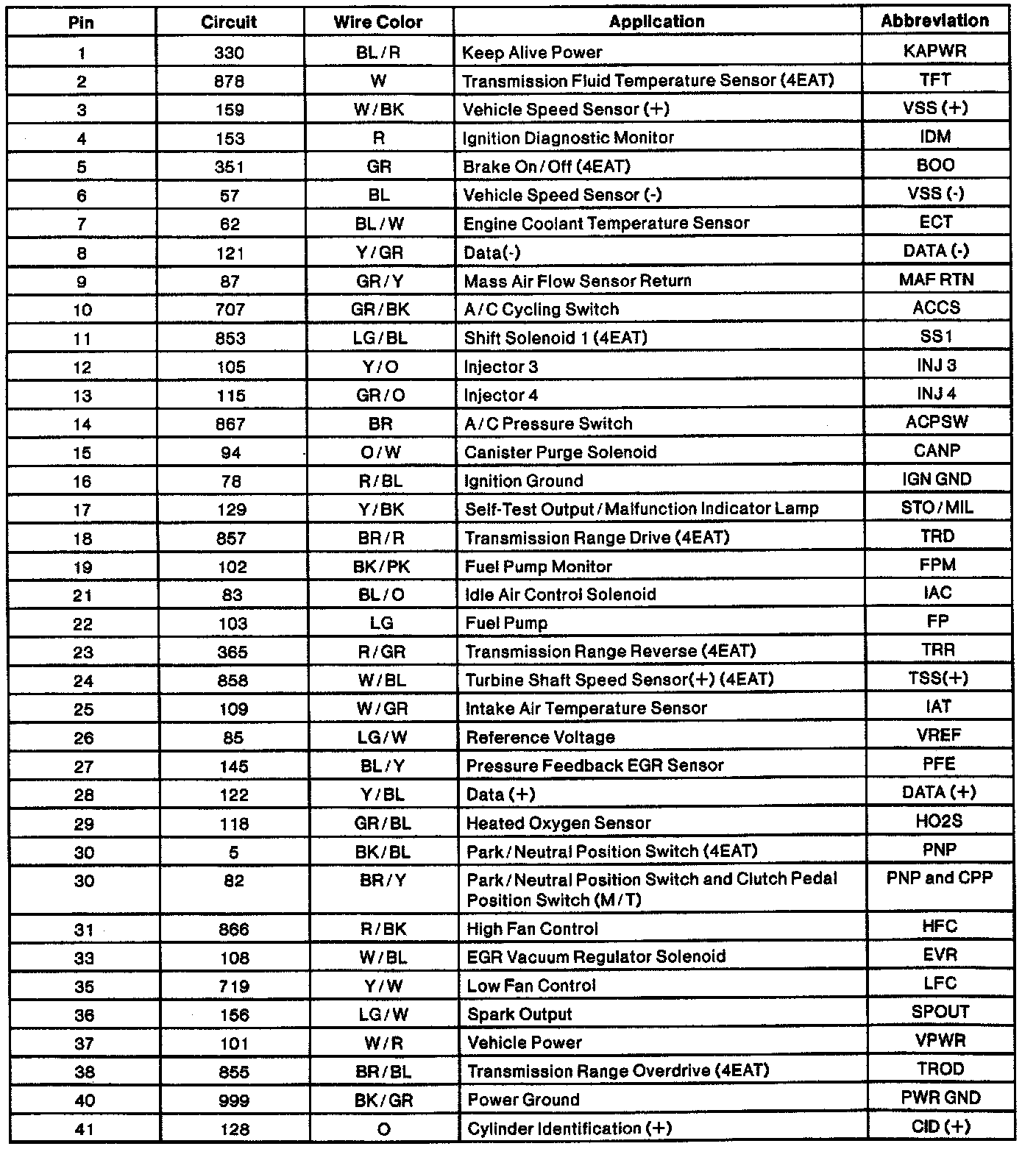

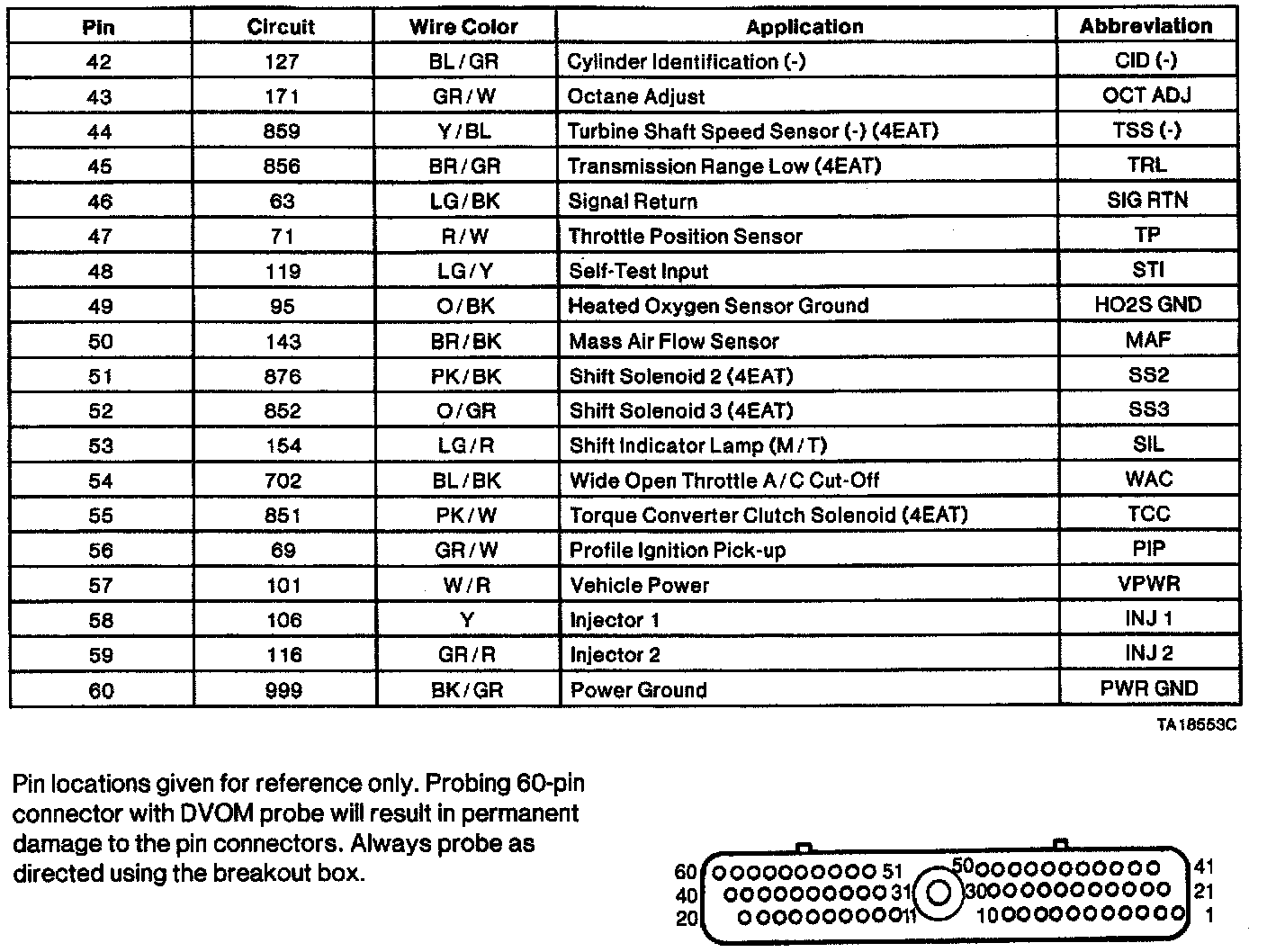

PCM Pin Usage:
PINOUT IDENTIFICATION
Connector View:
CONNECTOR VIEW
