Seat Belt Control Module
Seat Belt Control Module

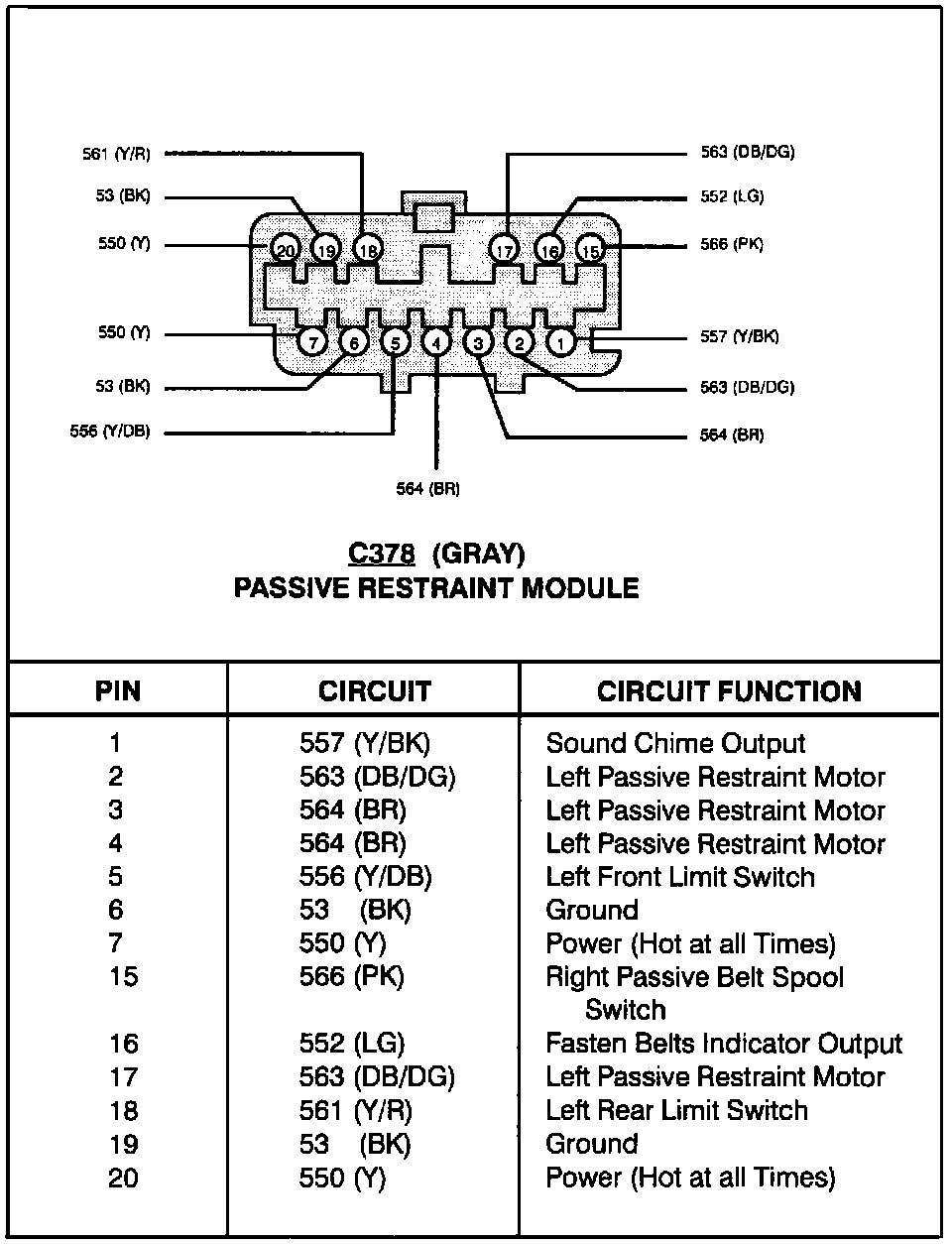

Passive Restraint Module (C378):

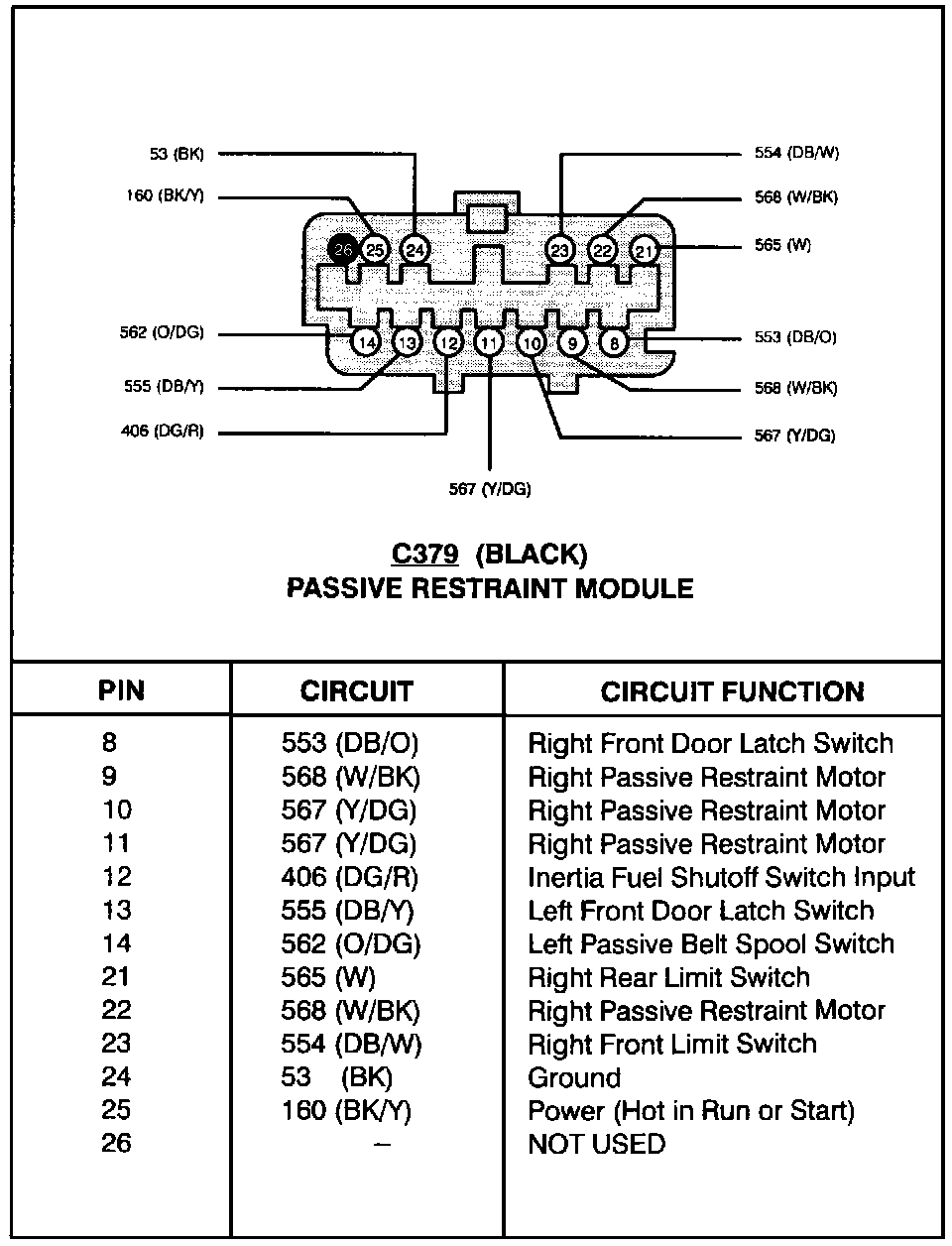

Passive Restraint Module (C379):
