With Automatic Transmission

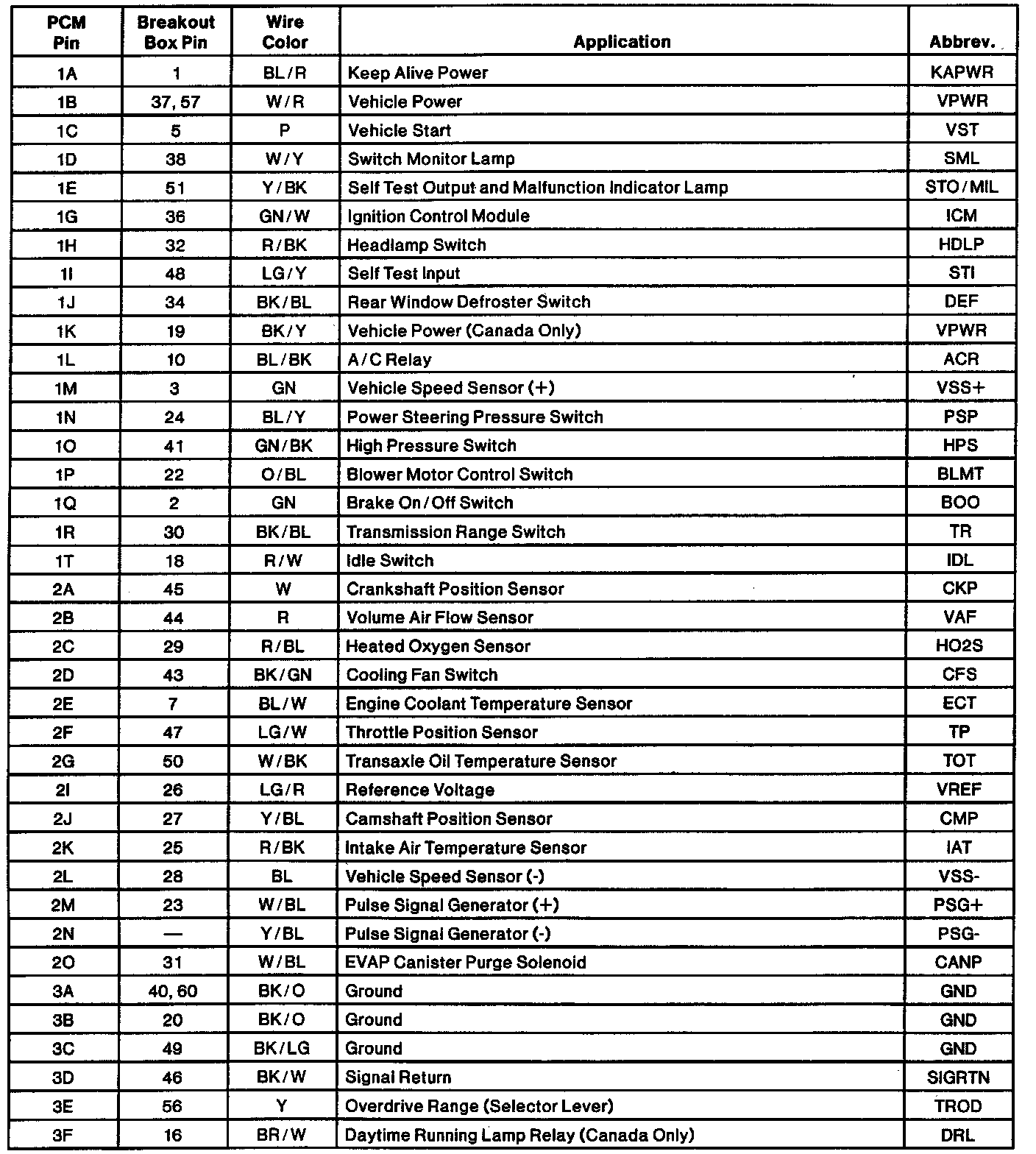

Engine Electrical Connector Pin Usage:

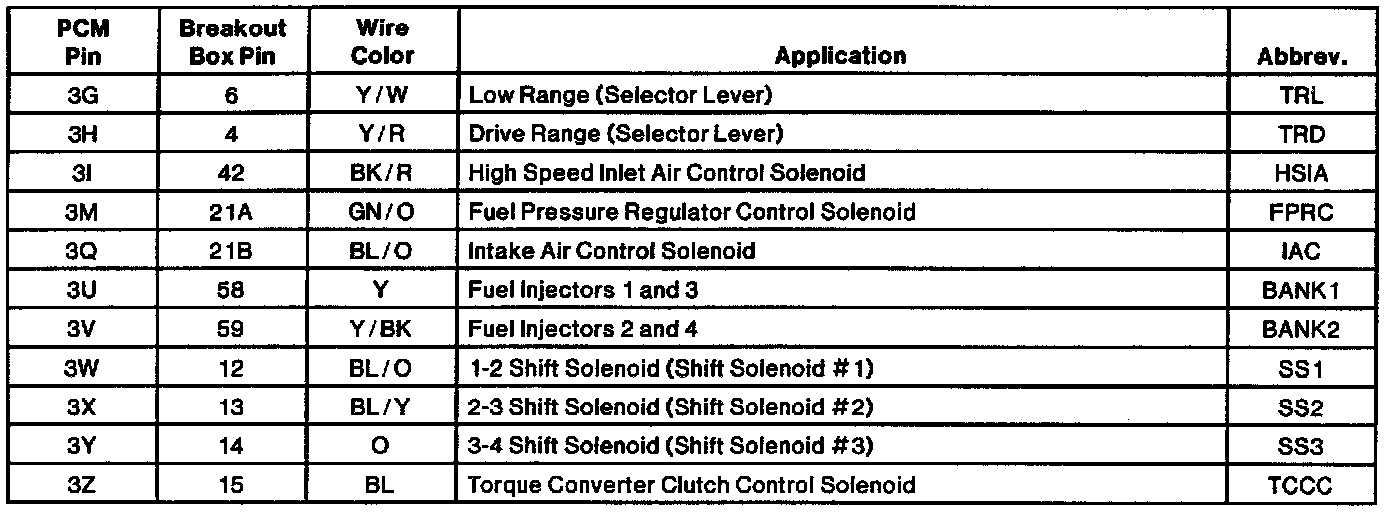

Engine Electrical Connector Pin Usage:
