Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

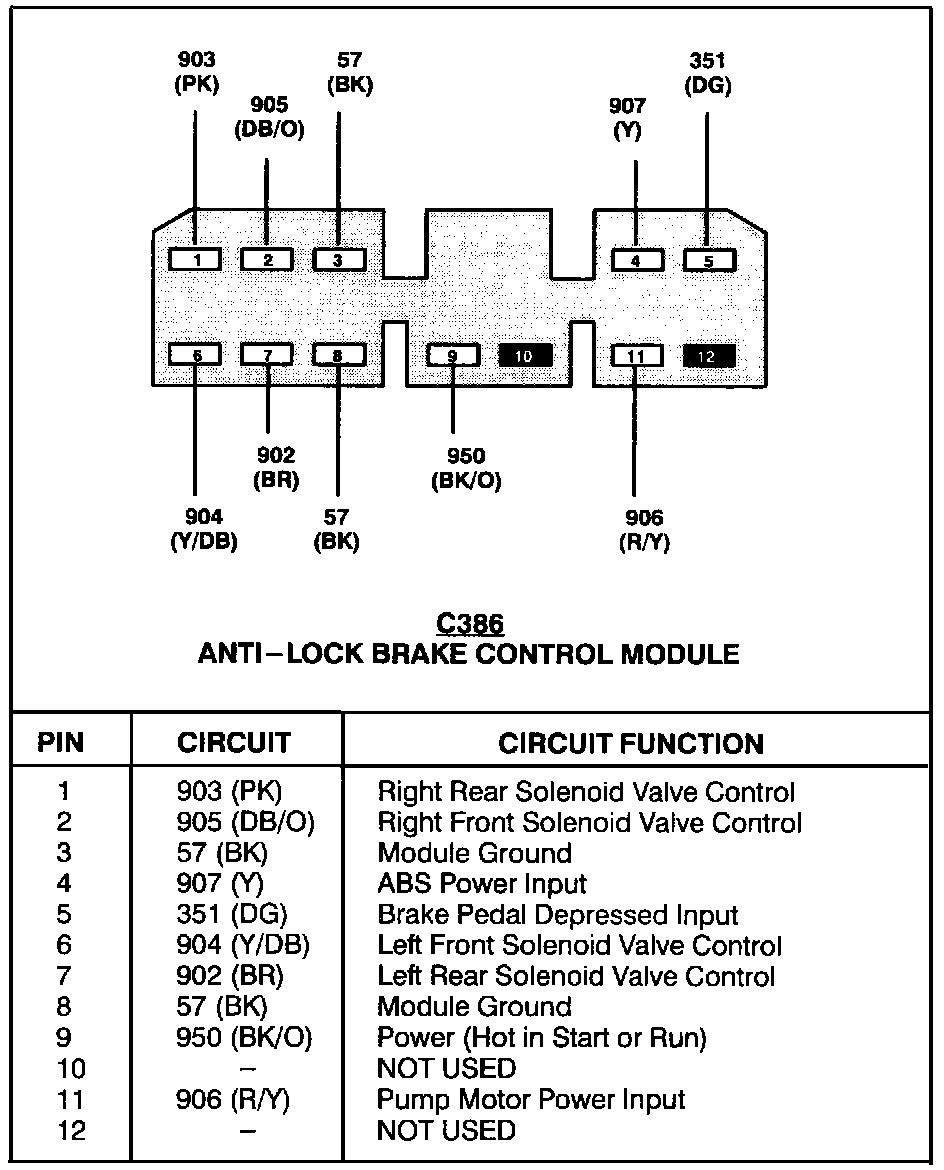

Anti-Lock Brake Control Module (C386):

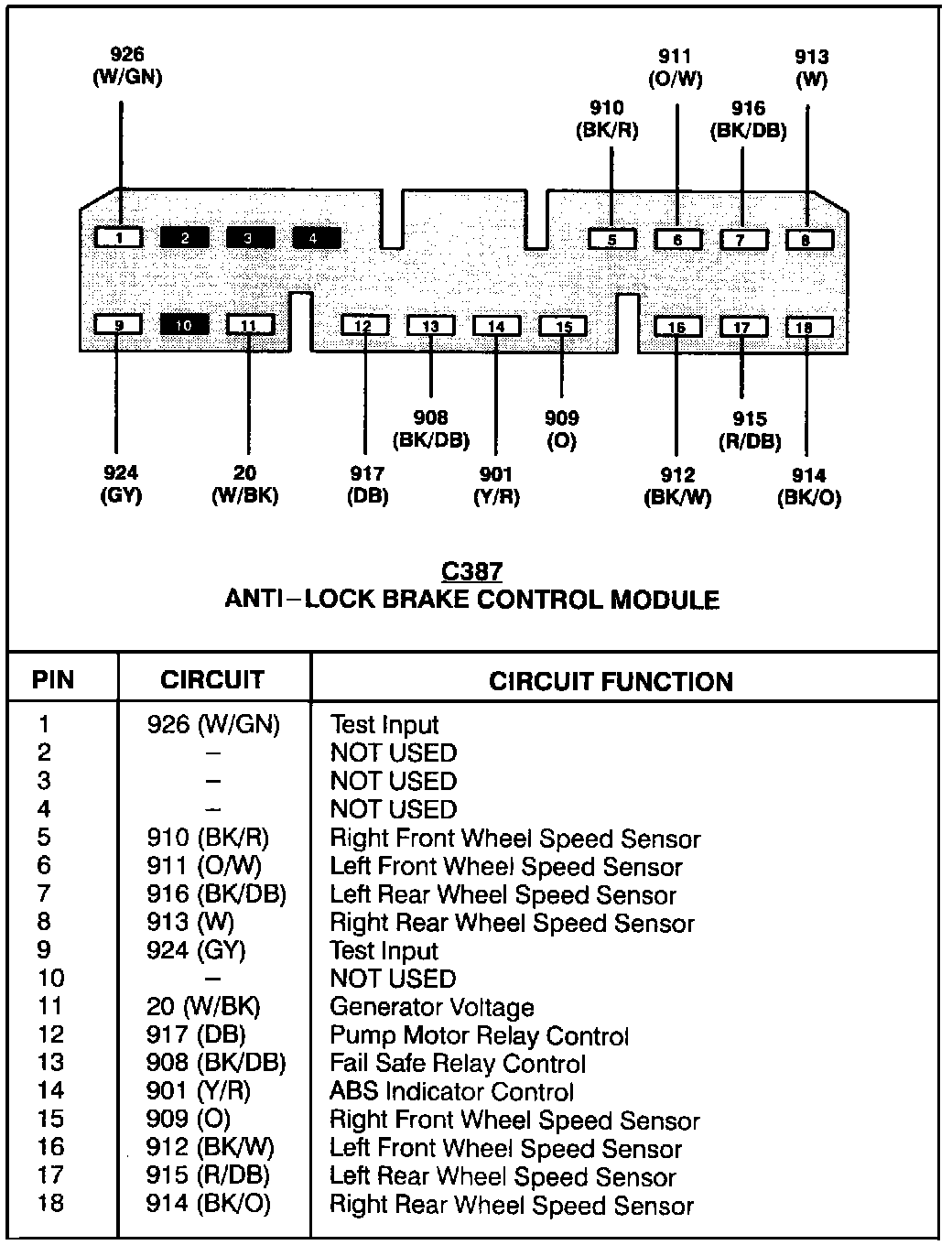

Anti-Lock Brake Control Module (C387):
