Home
>>
Ford
>>
1995
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Heater Control Assembly

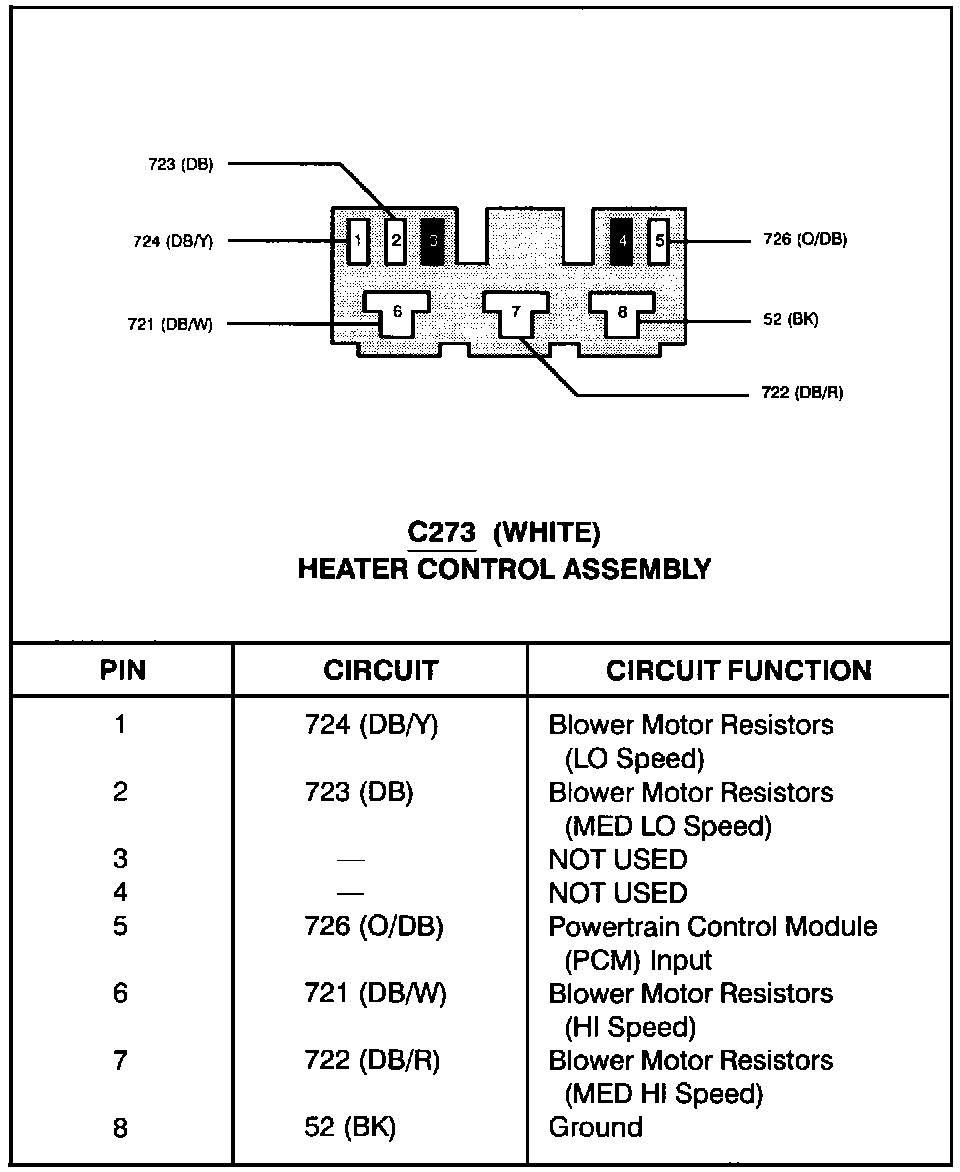

Heater Control Assembly
Heater Control Assembly:
