Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

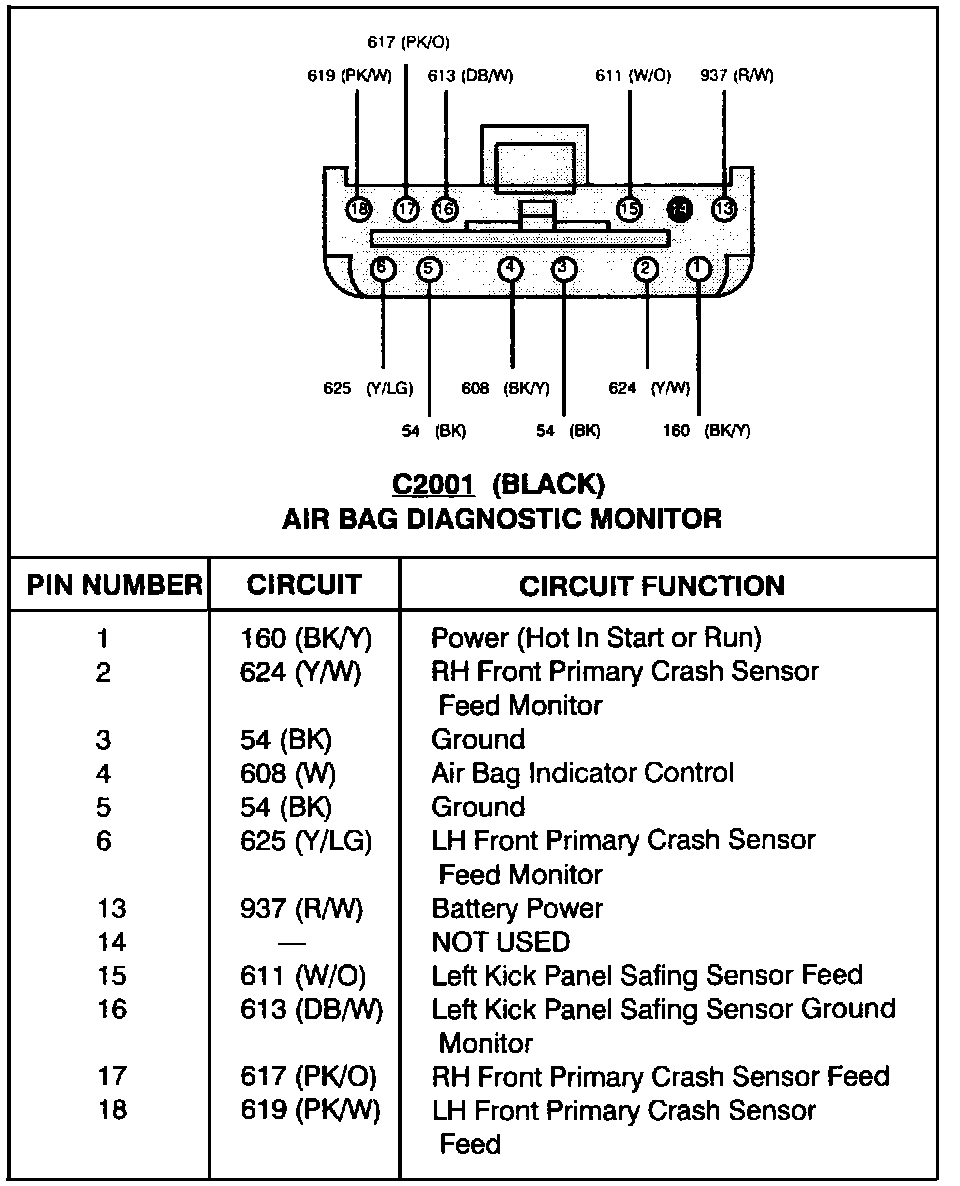

Air Bag Diagnostic Monitor (C2001):

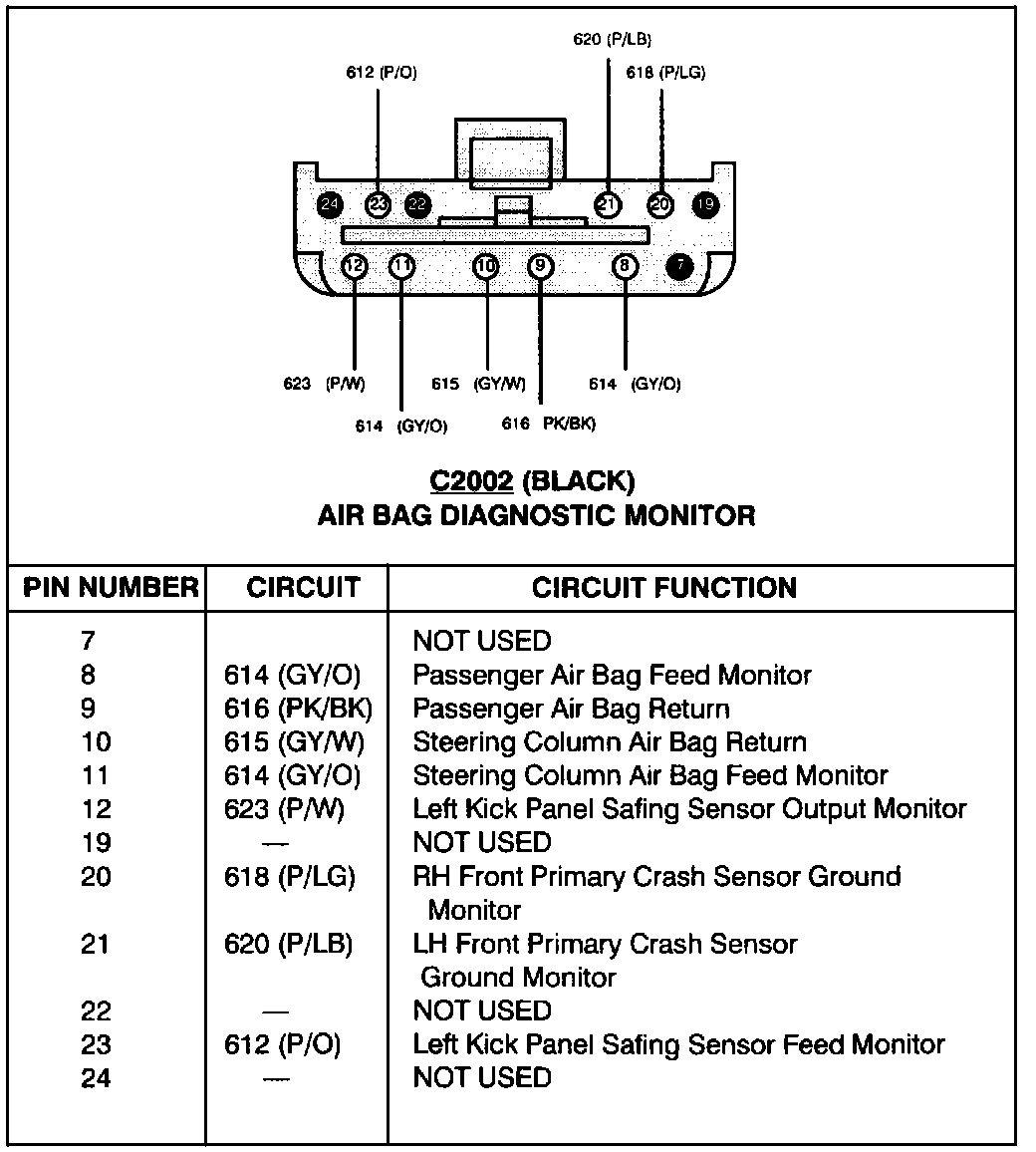

Air Bag Diagnostic Monitor (C2002):
