Component Locations

COMPONENT LOCATIONS

Component  Location
Door Lock/Unlock Relay Behind Upper Left Side of Instrument Panel
Ground G200 Behind Upper Left Side of Instrument Panel

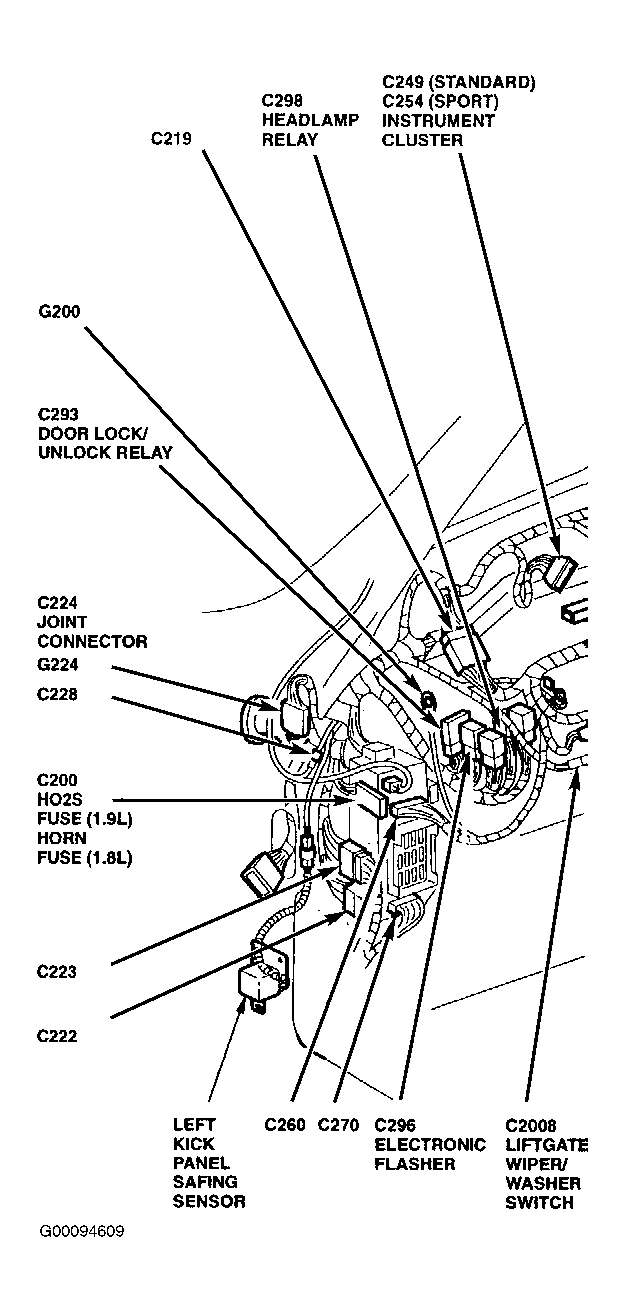

Fig 1: Locating Door Lock Relay & Ground G200
G00094609Courtesy of FORD MOTOR CO.
