Home >> Ford >> 1995 >> Contour V6-153 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Control Module

Power Door Lock Control Module

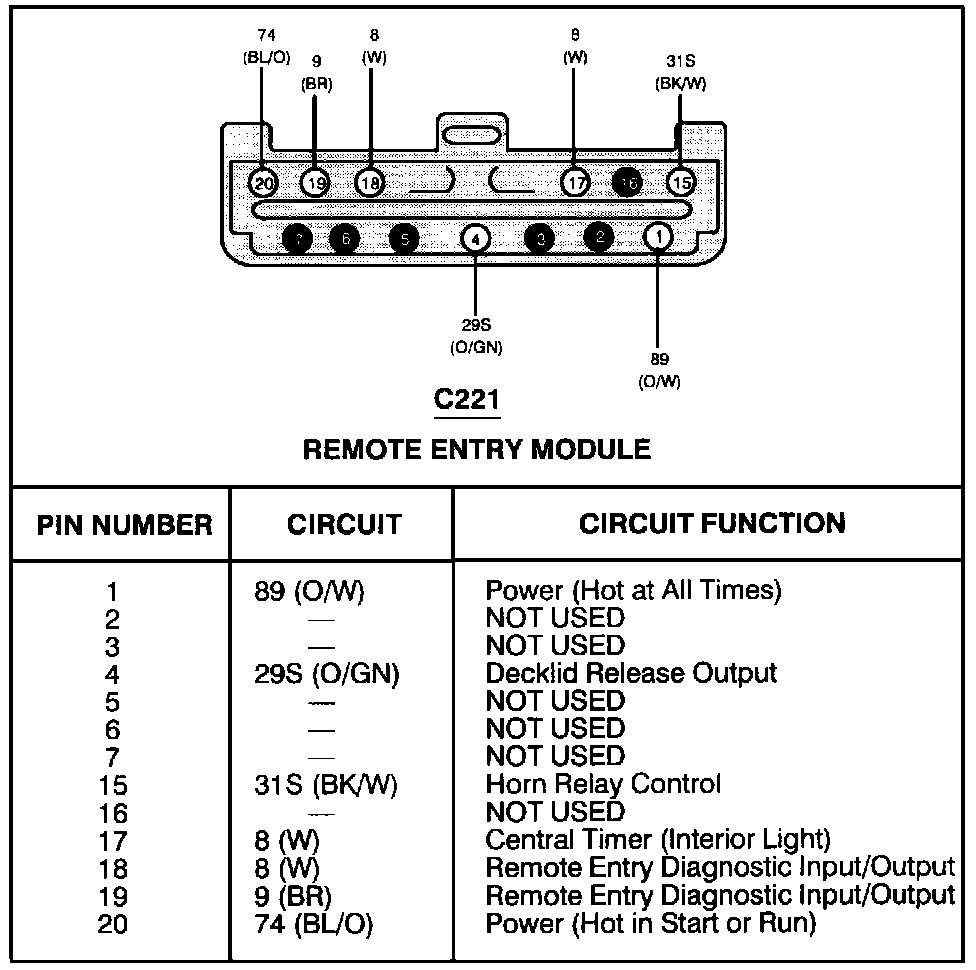

Remote Entry Module (C221):

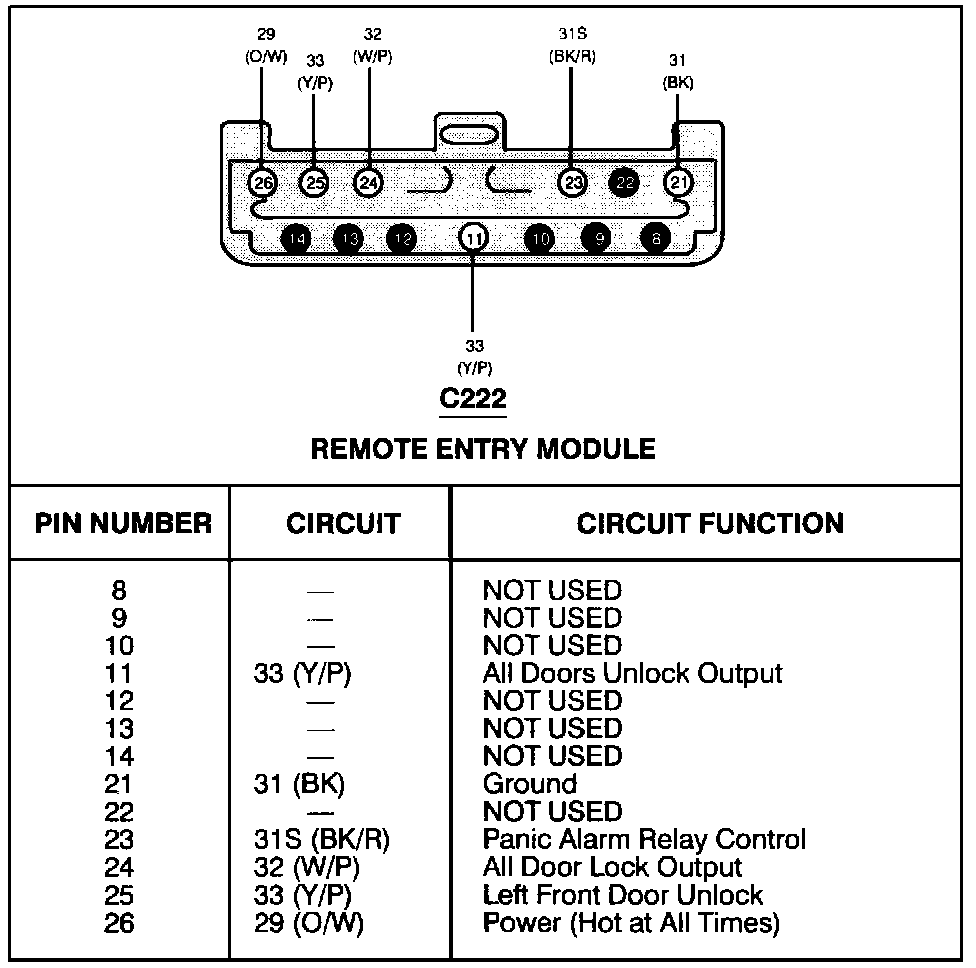

Remote Entry Module (C222):
