Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

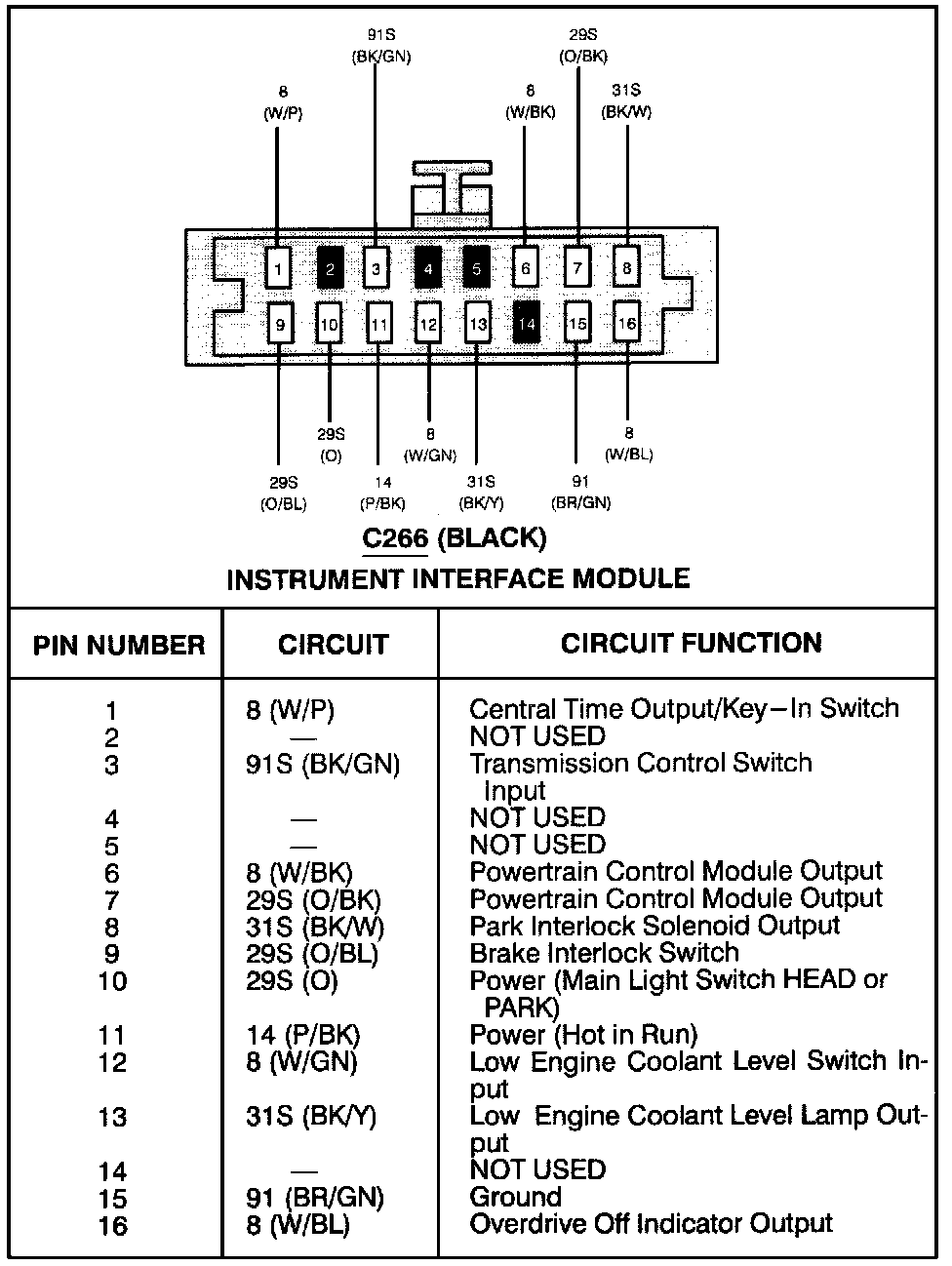

Instrument Interface Module
Instrument Interface Module
Instrument Interface Module:
