Control Assembly: Testing and Inspection

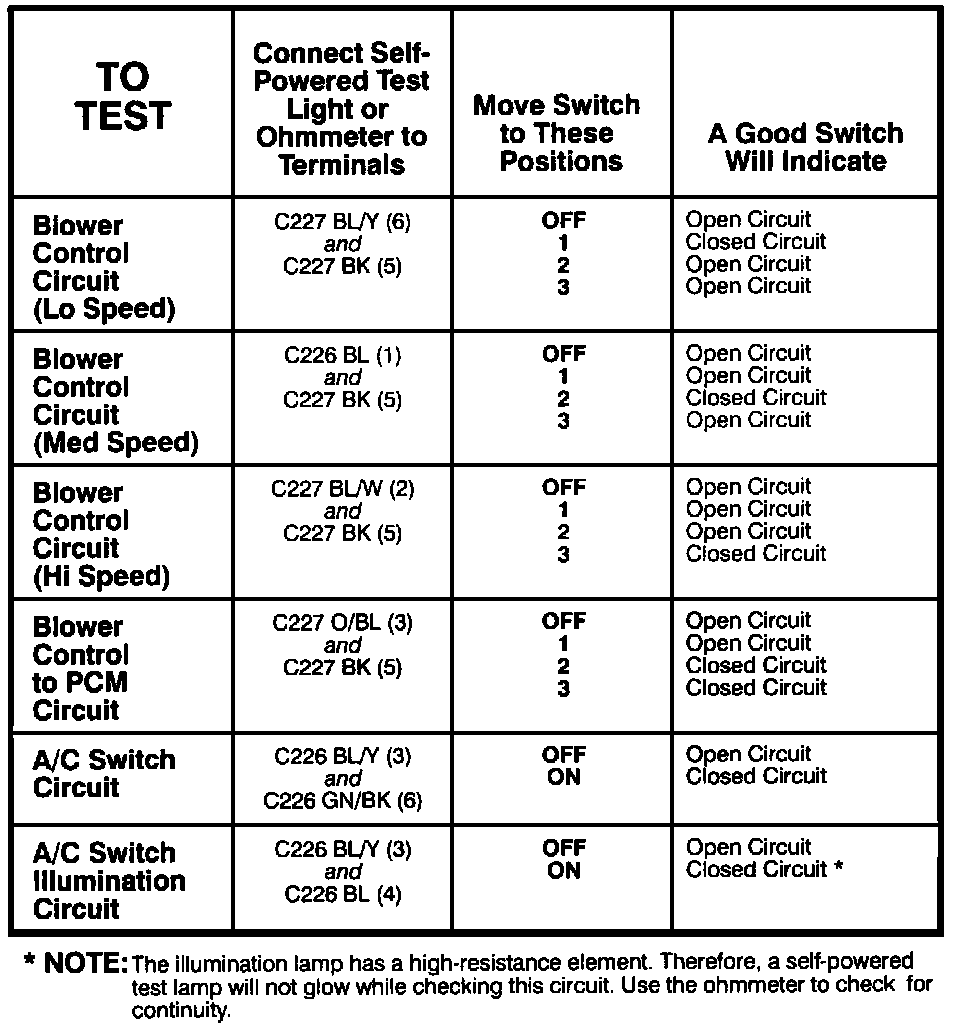

Heater-A/C Control Switch - Component Testing Switch:

Heater-A/C Control Switch - Terminals:

Heater-A/C Control Switch - Schematic:
