Terminal Identification

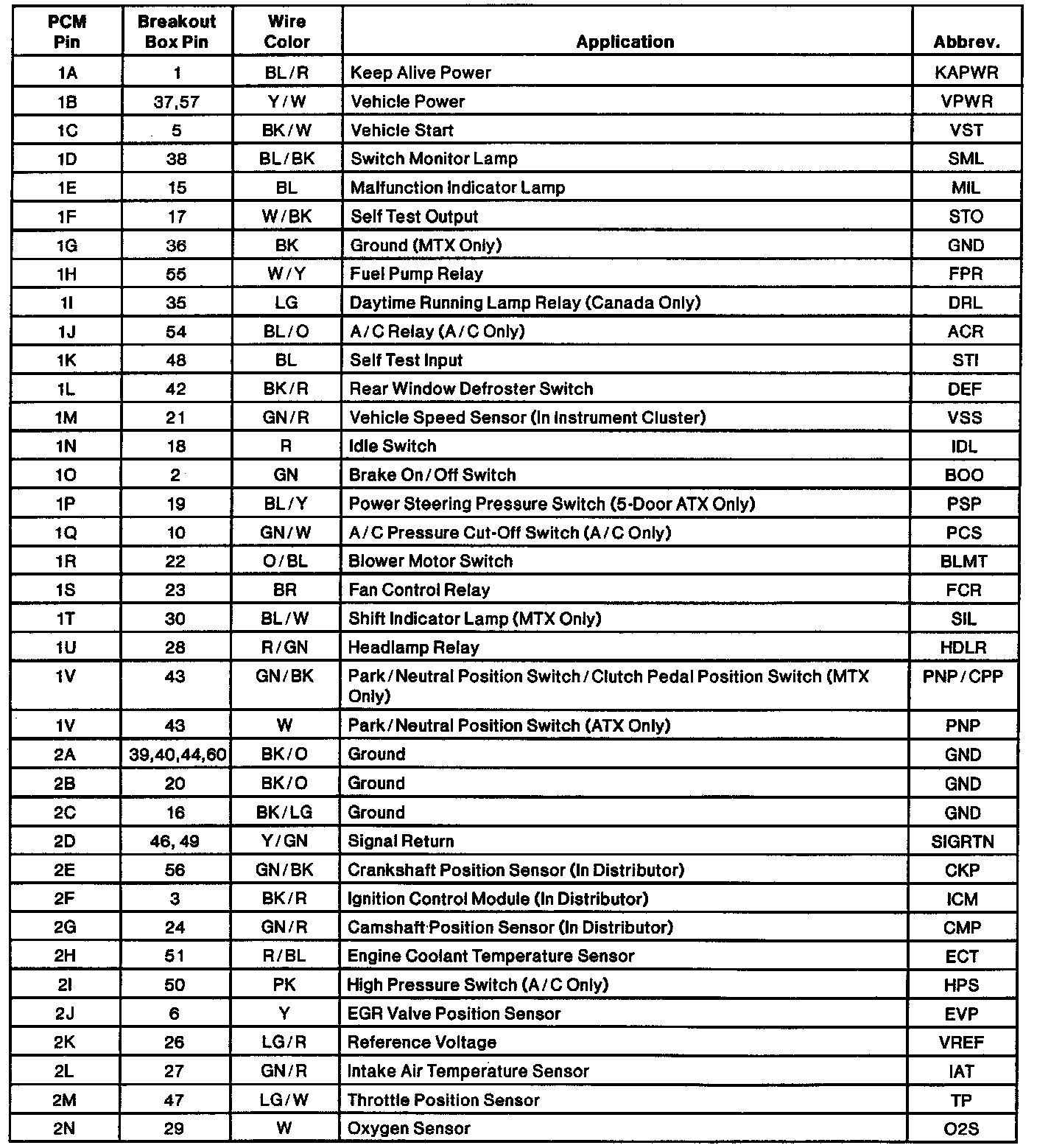

Engine Electrical Connector Pin Usage:

Engine Electrical Connector Pin Usage:
