Power Window Switch
>>
Master Window Control Switch/Left Front Door Lock Switch
Master Window Control Switch/Left Front Door Lock Switch

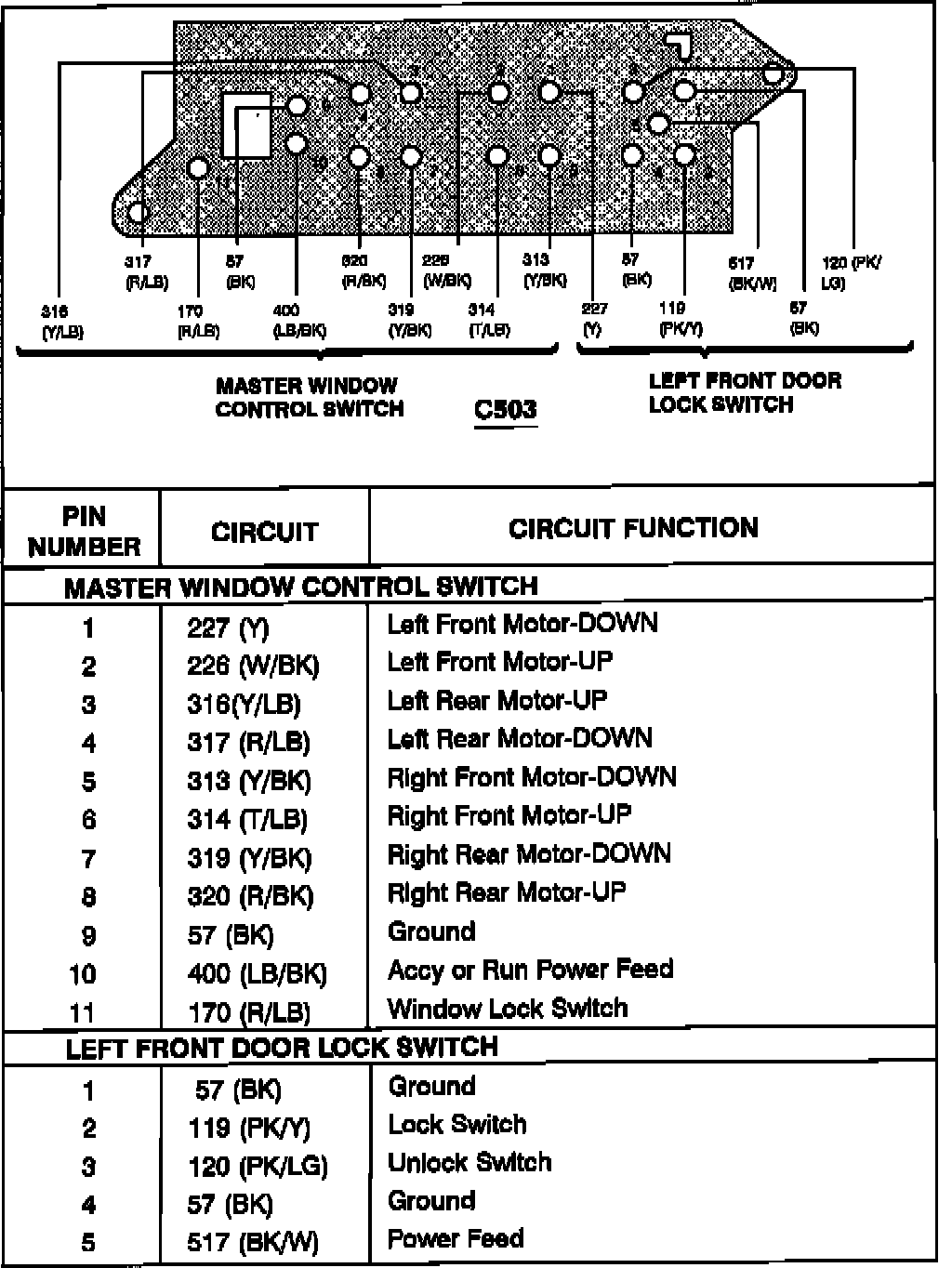

Master Window Control/Left Front Door Lock Switch:
