Home >> Ford >> 1994 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment

Engine Compartment

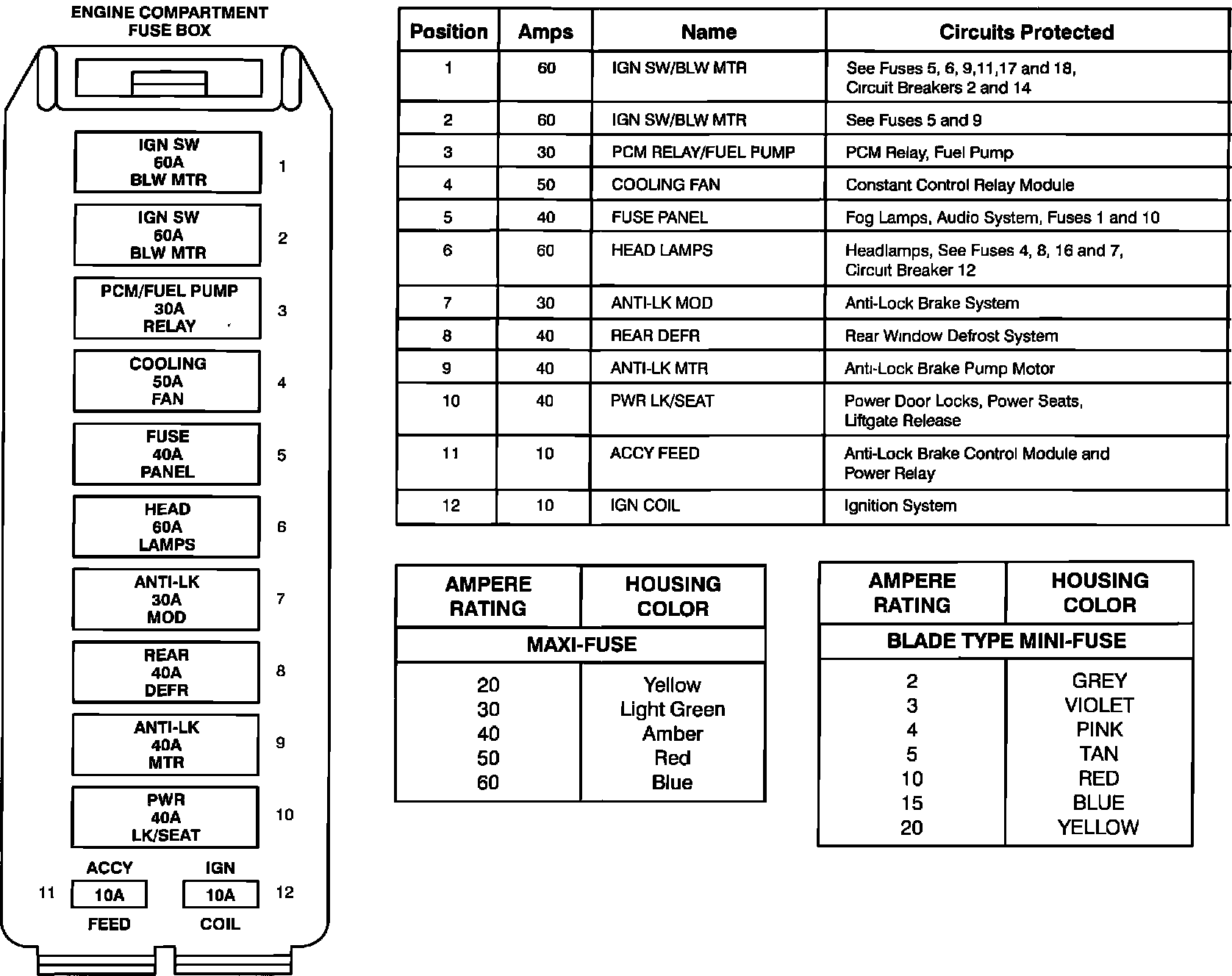

Engine Compartment Fuse Box:
