Home >> Ford >> 1994 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

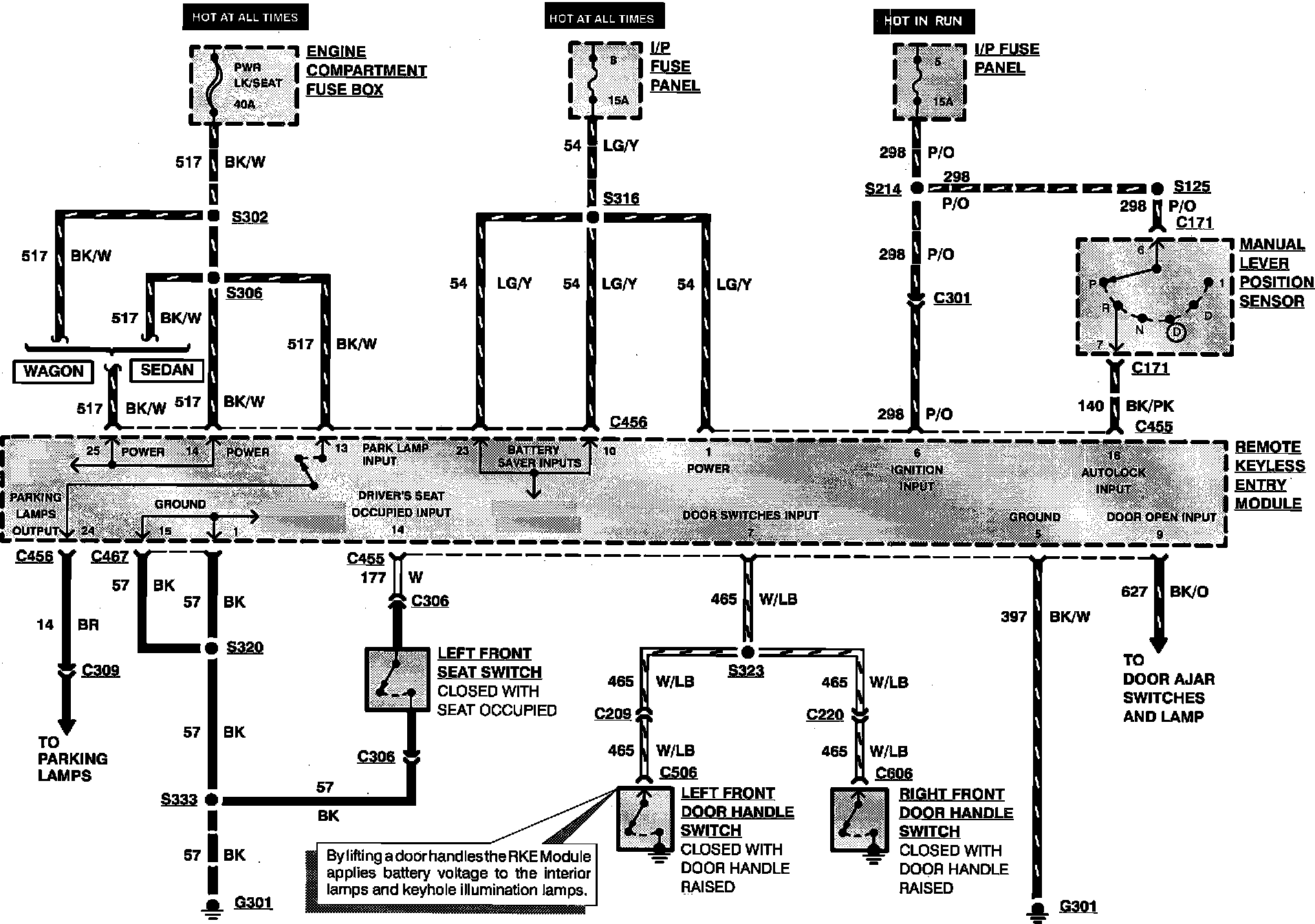

Remote/Keyless Entry:

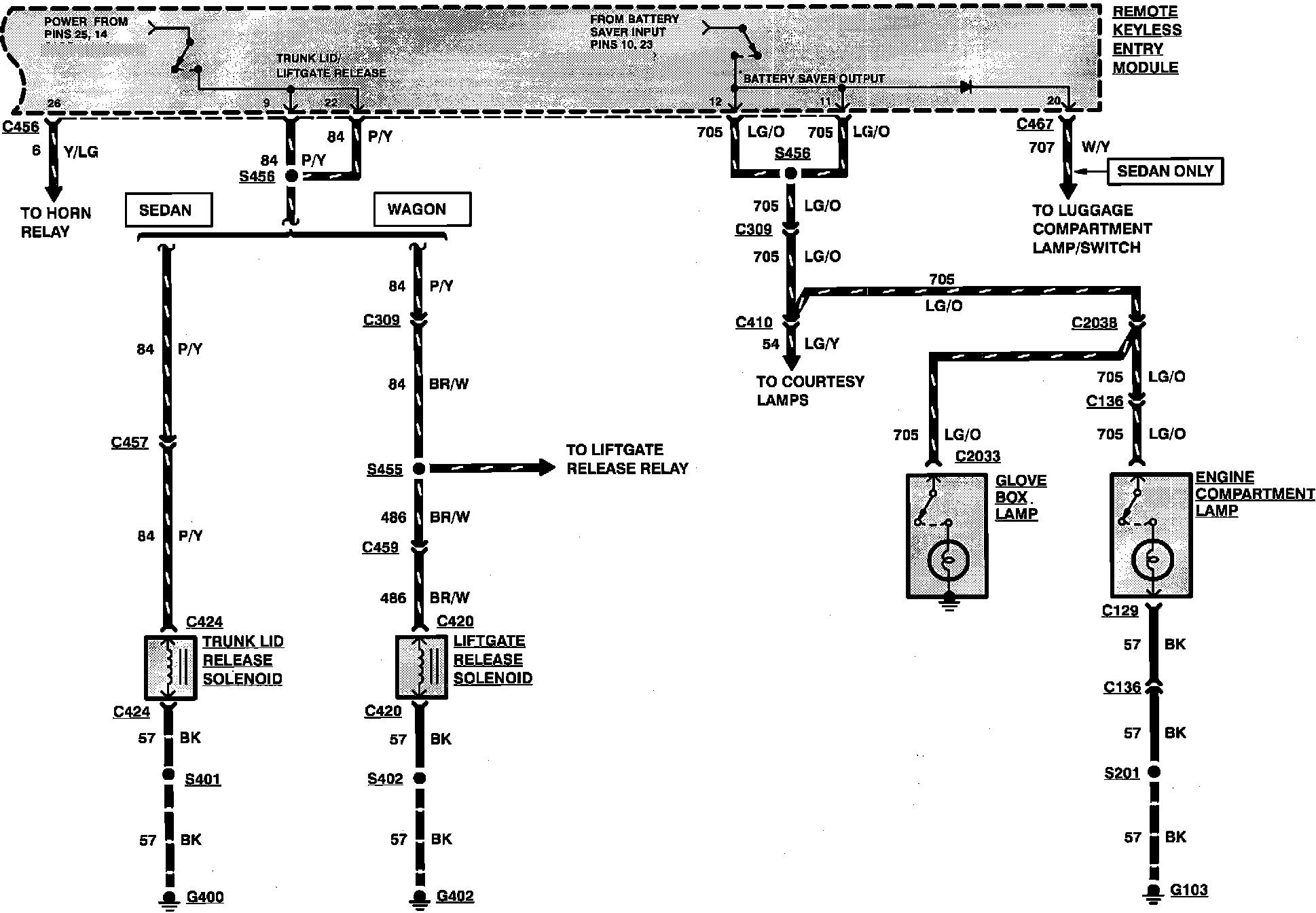

Remote/Keyless Entry:

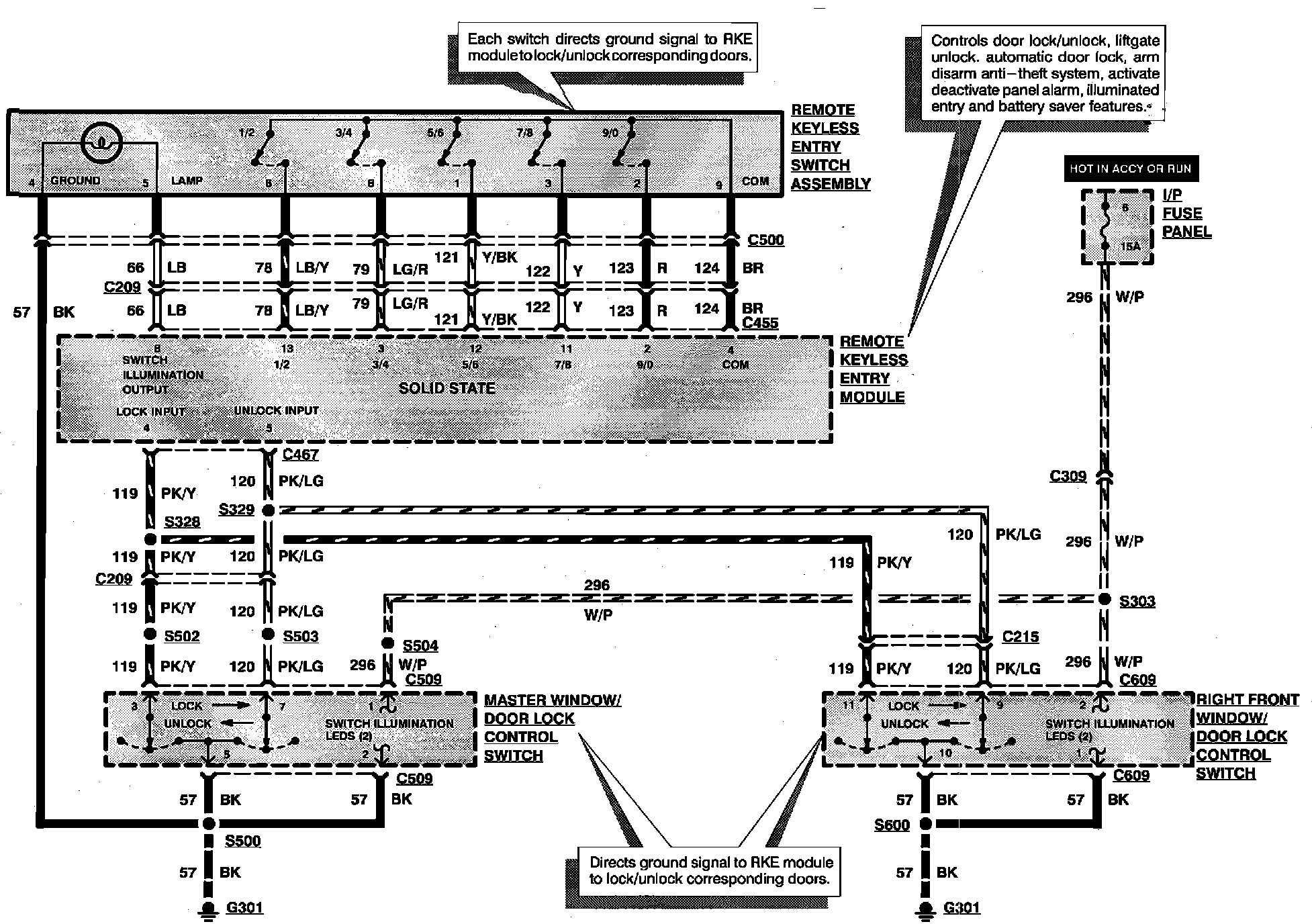

Remote/Keyless Entry:

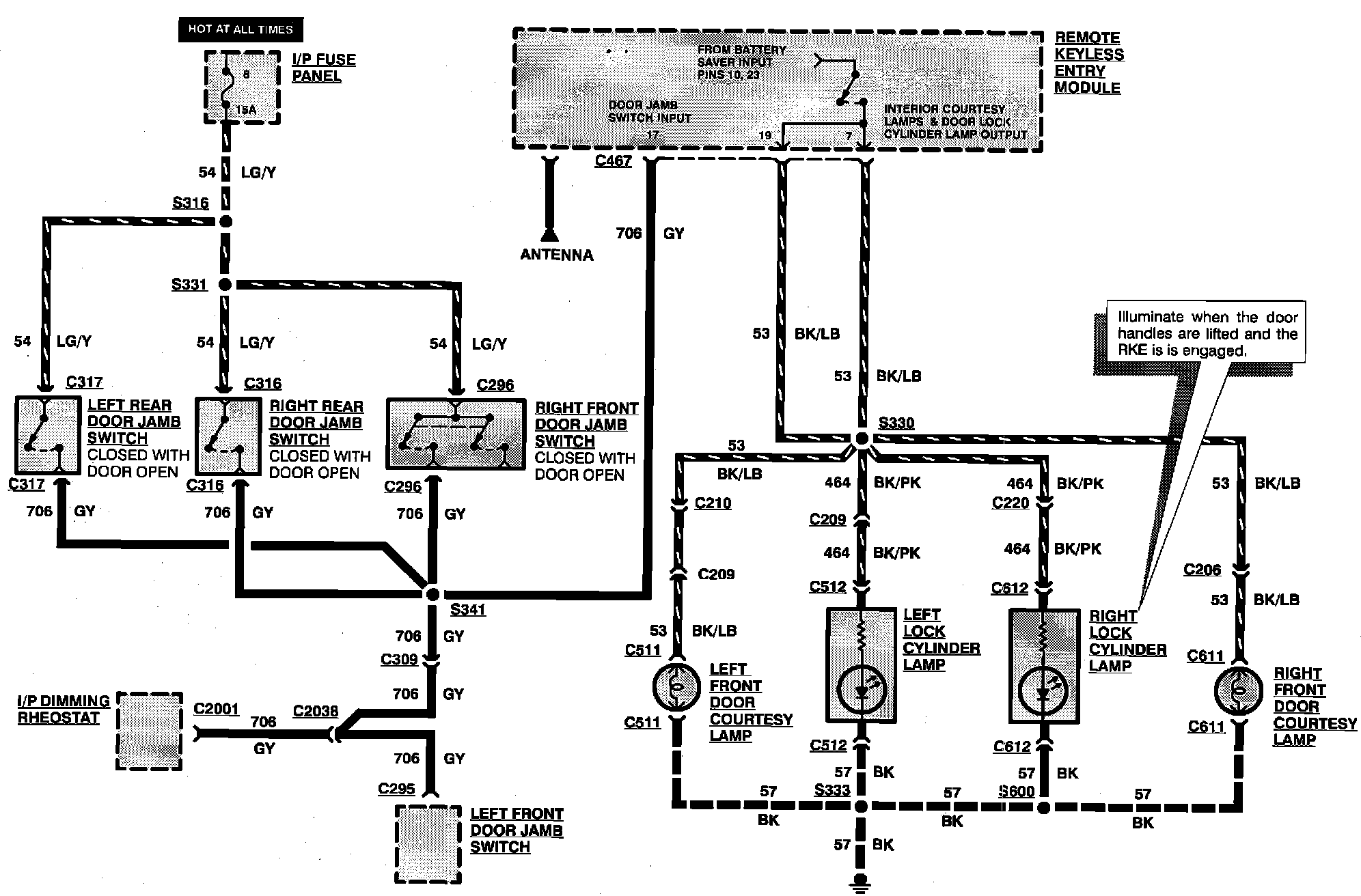

Remote/Keyless Entry:

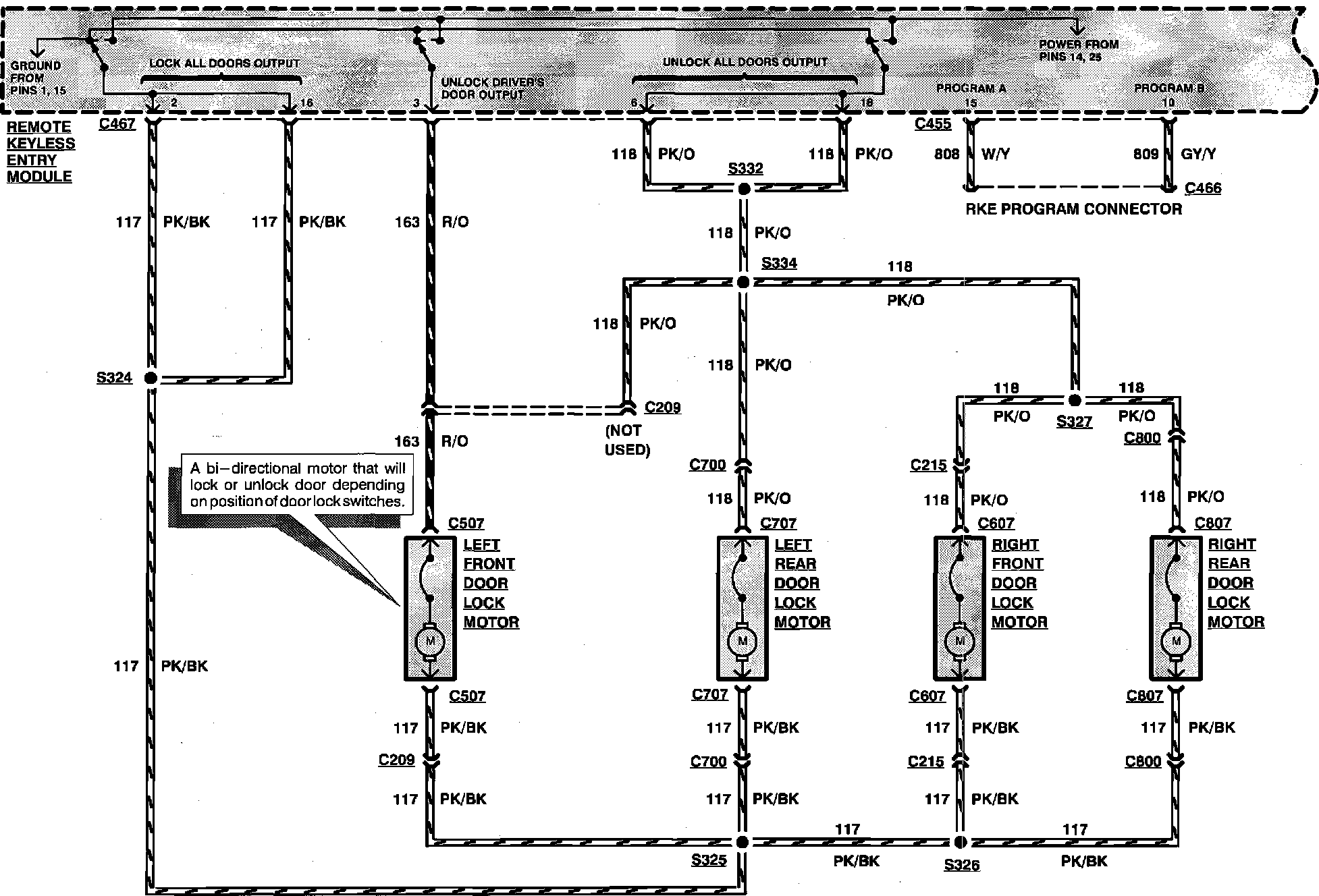

Remote/Keyless Entry:
